Product Description

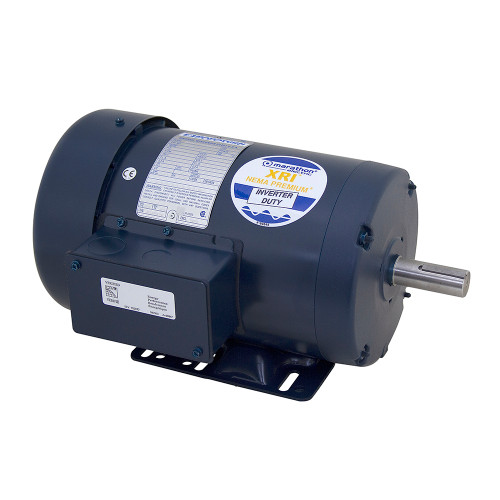

1-1/2 HP 1800 RPM 230/460 VAC 3PH GENERAL PURPOSE BASE MOUNT MOTORBrand new, MARATHON model 145TTFR16033 general purpose three phase, electric motor. Inverter-rated, speed range 10:1. Steel frame. No thermal overload protection.
SPECIFICATIONS
- Model Number 145TTFR16033
- Catalog Number E2104
- Power 1-1/2 HP
- Voltage 230/460 AC
- Amperage 4.8/2.4 Amps
- Speed 1750 RPM
- Rotation Reversible
- Phase 3
- Service Factor 1.15
- Bearings Ball
- Enclosure TEFC
- Duty Continuous
- Frame 145T
- Rigid Base Mount
Six 0.34" diameter holes on 5" x 4" to 5-1/2" centers - Shaft 7/8" diam. x 2-1/4" w/ 3/16" keyway
- Size 11.37" x 9" x 7"
- Shpg. 50 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 10-3386
PDF Page Catalog298-130.pdf
Additional Information as10-3386.pdf
Badges made-in-usa,surplus-item,last-one
Enclosure TEFC
Frame 145T
HP 1-1/2
RPM 1750
