Product Description
RIGHT ANGLE GEARBOXBrand new. PEERLESS 1050-012 gearbox. Cast iron gearbox housing. Ships filled with oil. Shaft rotate in same direction when viewed from end.
SPECIFICATIONS
- Brand Peerless
- Model 1015-012
- Ratio 1.2:1
- Rotation Same
- Input Power 10 HP max continuous
- Input Speed 3600 RPM max.
- Output Torque 360 in-lbs
- Input Shaft 3/4" dia. x 1-5/8" w/ 3/16" woodruff keyway
- Output Shaft 3/4" dia. x 1-5/8" w/ 5/32" woodruff keyway
- Mount Two 3/8-16" bolt holes on 4" centers and 2.9" dia. pilot
- Size 7" x 5-3/4" x 4-3/4"
- Shpg. 13 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 13-1617-B
PDF Page Catalog298-113.pdf
Dimensional Diagram dr13-1617-B.pdf
Badges regular-stock
![10 HP 1.2:1 RA 3600 RPM Same Rotation In/Out Peerless 1050-012 Gearbox [603514]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10729/105028/13-1617-B__77501.1762807447.jpg?c=1 "10 HP 1.2:1 RA 3600 RPM Same Rotation In/Out Peerless 1050-012 Gearbox [603514]")
![10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1050-009A Gearbox [603513]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10707/105026/13-1617-A__55449.1762807446.jpg?c=1 "10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1050-009A Gearbox [603513]")
![10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1050-009A Gearbox [603513]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10707/105027/13-1617-A_1__55412.1762807446.jpg?c=1 "10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1050-009A Gearbox [603513]")
![10 HP 1:1 RA 3600 RPM Same Rotation In/Out Peerless 1000-014-D Gearbox [603491]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10621/104986/13-1616-A__70163.1762807434.jpg?c=1 "10 HP 1:1 RA 3600 RPM Same Rotation In/Out Peerless 1000-014-D Gearbox [603491]")
![10 HP 1:1 RA 3600 RPM Same Rotation In/Out Peerless 1000-014-D Gearbox [603491]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10621/104987/13-1616-A_1__14520.1762807434.jpg?c=1 "10 HP 1:1 RA 3600 RPM Same Rotation In/Out Peerless 1000-014-D Gearbox [603491]")
![10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1000-015 Gearbox [603492]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10643/104988/13-1616-B__66642.1762807435.jpg?c=1 "10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1000-015 Gearbox [603492]")
![10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1000-015 Gearbox [603492]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10643/104989/13-1616-B_1__78703.1762807435.jpg?c=1 "10 HP 1:1 RA 3600 RPM Opposite Rotation In/Out Peerless 1000-015 Gearbox [603492]")

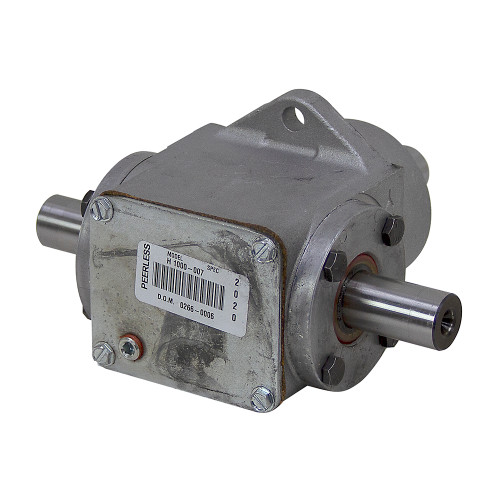

![10 HP 1:1 RA 3600 RPM Peerless 1000-007 Gearbox [603493]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/10663/104990/13-1616-C__39536.1762807436.jpg?c=1 "10 HP 1:1 RA 3600 RPM Peerless 1000-007 Gearbox [603493]")
