Product Description

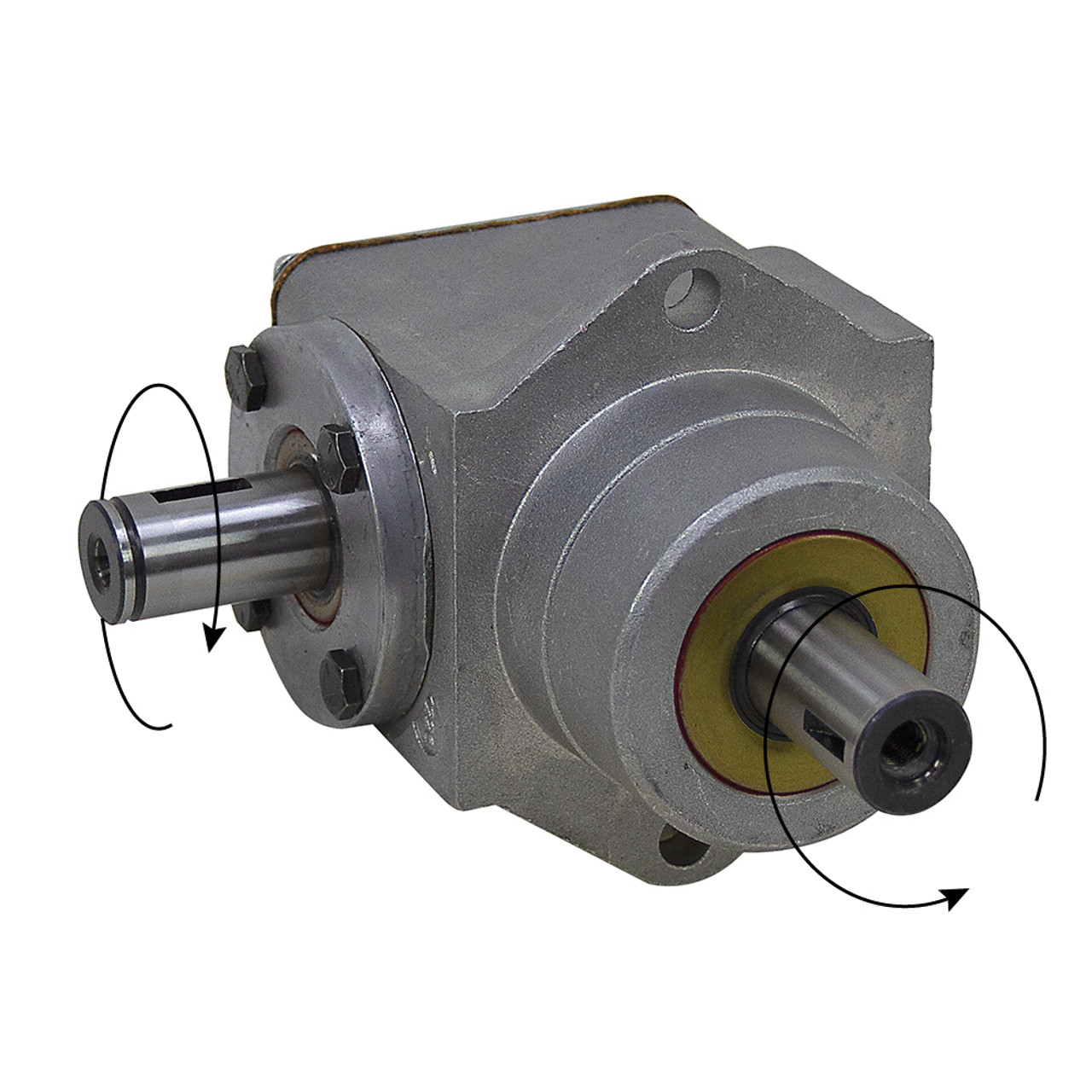

RIGHT ANGLE GEARBOXBrand new. PEERLESS 1000-015 gearbox. Cast aluminum gearbox housing. Ships filled with oil. Shafts rotate in opposite directions when viewed from end.
SPECIFICATIONS
- Brand Peerless
- Model 1000-015
- Ratio 1:1
- Rotation Opposite
- Input Power 10 HP max continuous
- Input Speed 3600 RPM max
- Output Torque 360 in-lb. max
- Input Shaft 7/8" dia. x 1-1/2" w/ 3/16" woodruff keyway
- Output Shaft 7/8" dia. x 1-1/4" w/ 5/32" woodruff keyway and 3/8"-24 tapped end
- Mount Two 13/32" bolt holes on 4" centers, 2.92" dia. pilot
- Size 5-1/2" x 4-3/4" x 7"
- Shpg. 8 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 13-1616-B
PDF Page Catalog298-113.pdf
Dimensional Diagram dr13-1616-B.pdf
