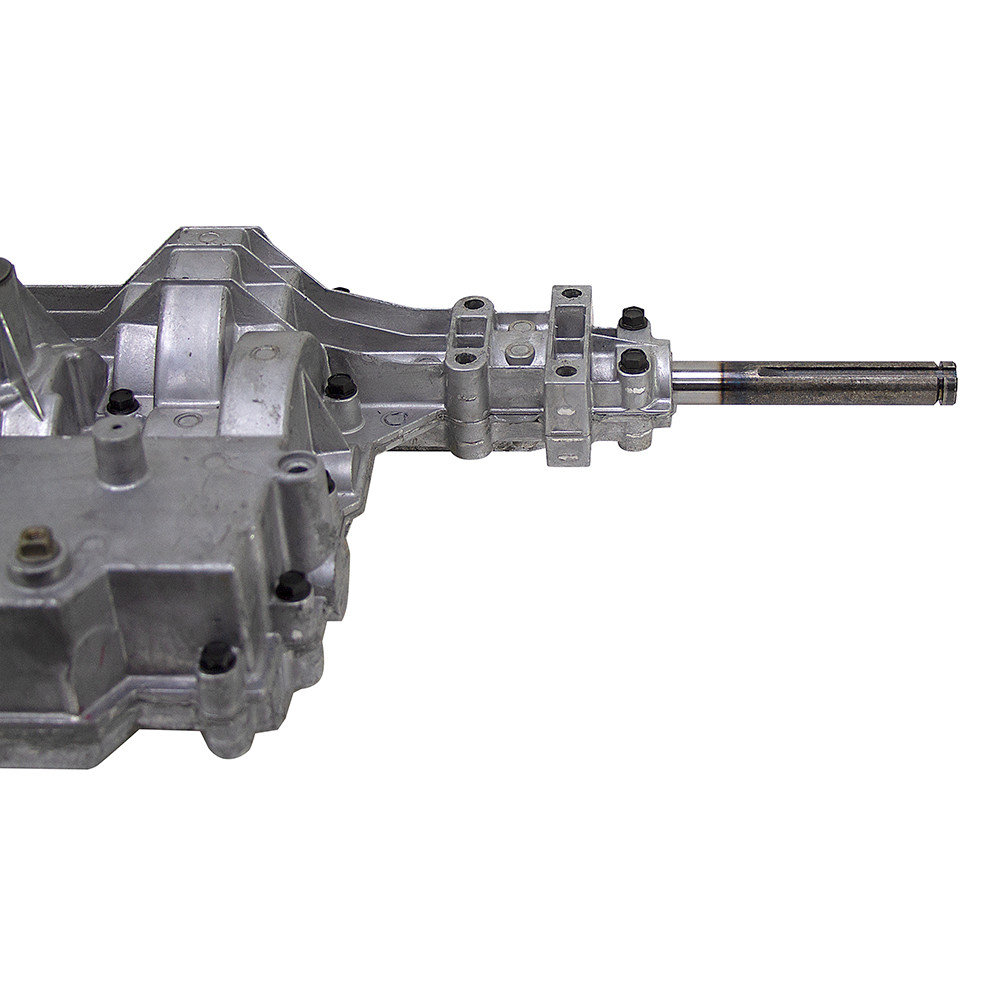

6 Speed Transaxle Peerless MST-206-545C Axle-Rearward Transaxle w/ Push Brake Lever [603510]

Product Description

SIX SPEED TRANSAXLE

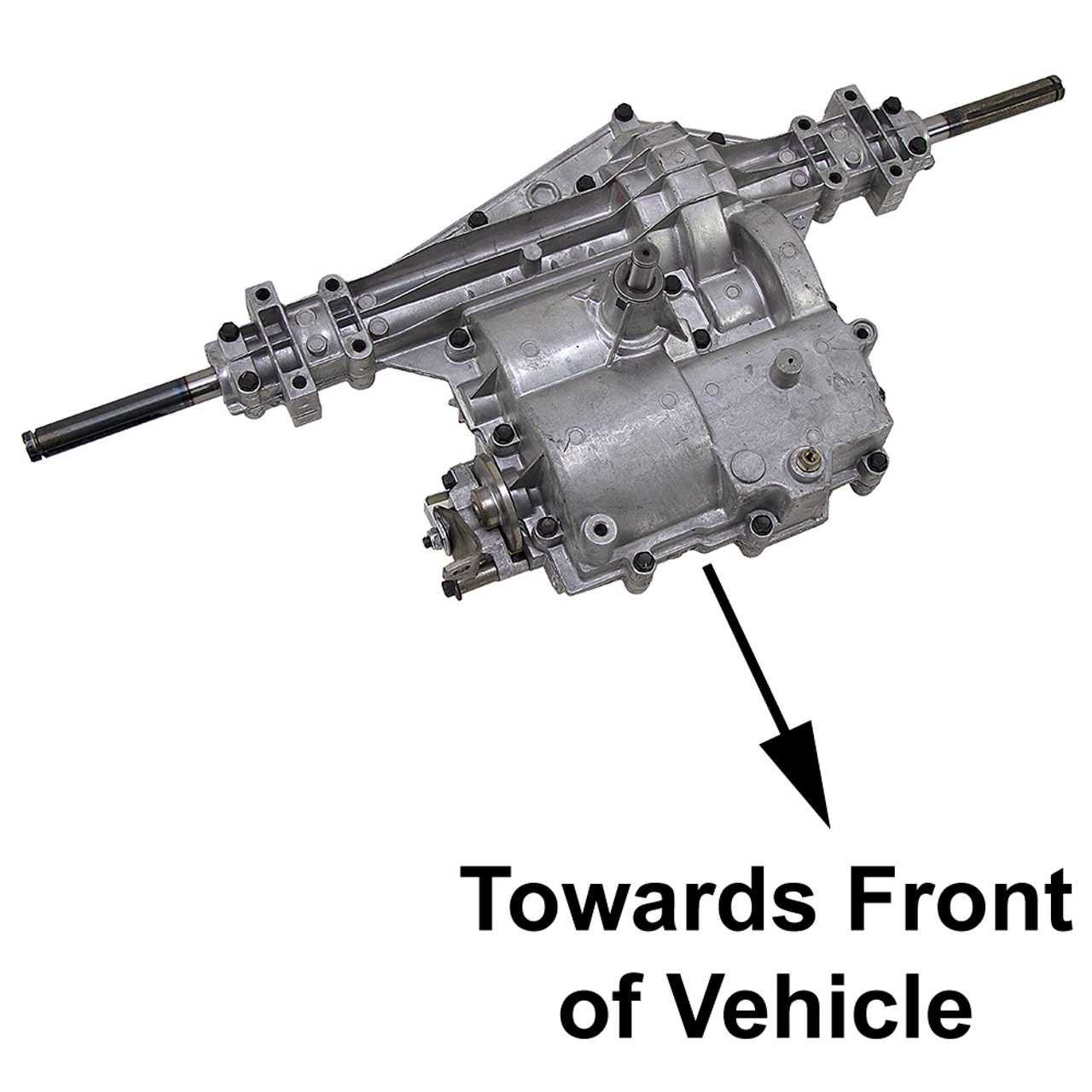

Brand new. PEERLESS MST-206-545C six speed transaxle. Push brake lever to actuate brake.  This "Axle-Rearward" style transaxle is designed to be mounted at the rear end of the machine, behind the engine, with the transaxle axles towards the rear of the machine and the gearbox portion of the transaxle towards the front of the vehicle. Transaxles are shipped pre-filled with oil from the factory.

SPECIFICATIONS

• Brand Peerless
• Model MST-206-545C
• Speeds  Six forward, Reverse, and Neutral
• Gear ratios First 60.25:1, second 47.46:1, third 30.92:1, fourth 20.67:1, fifth 15.24:1, sixth 13.71:1, reverse 47.46:1
• Input Speed 2,000 RPM max
• Input Rotation CW
• Output Torque 225 ft-lbs max
• Load Rating 525 lbs max
• Input Shaft 5/8" dia. x 1-3/16" w/ 3/16" keyway and snap ring groove
• Axles 3/4" dia. x 4-3/4" long w/ 3/16" x 2-3/4" long keyway and snap ring groove
• Overall Axle Width 29-1/8"
• Tire Diameter 20" max
• Gear Shift Shaft 3/8" square, tapped 1/4"-28
• Inner Mount Four 11/32" bolt holes on 13" x 1-3/4" centers
• Outer Mount Four 11/32" bolt holes on 16-1/4" x 2-1/2" centers
• Housing Size 19-3/4" x 12-1/2" x 6-1/2"
• Brake Lever 3-3/4" x 1-1/2" w/ 5/16" hole for linkage
• Size 29-1/8" x 12-1/2" x 8"
• Shpg 33 lb.
