Product Description

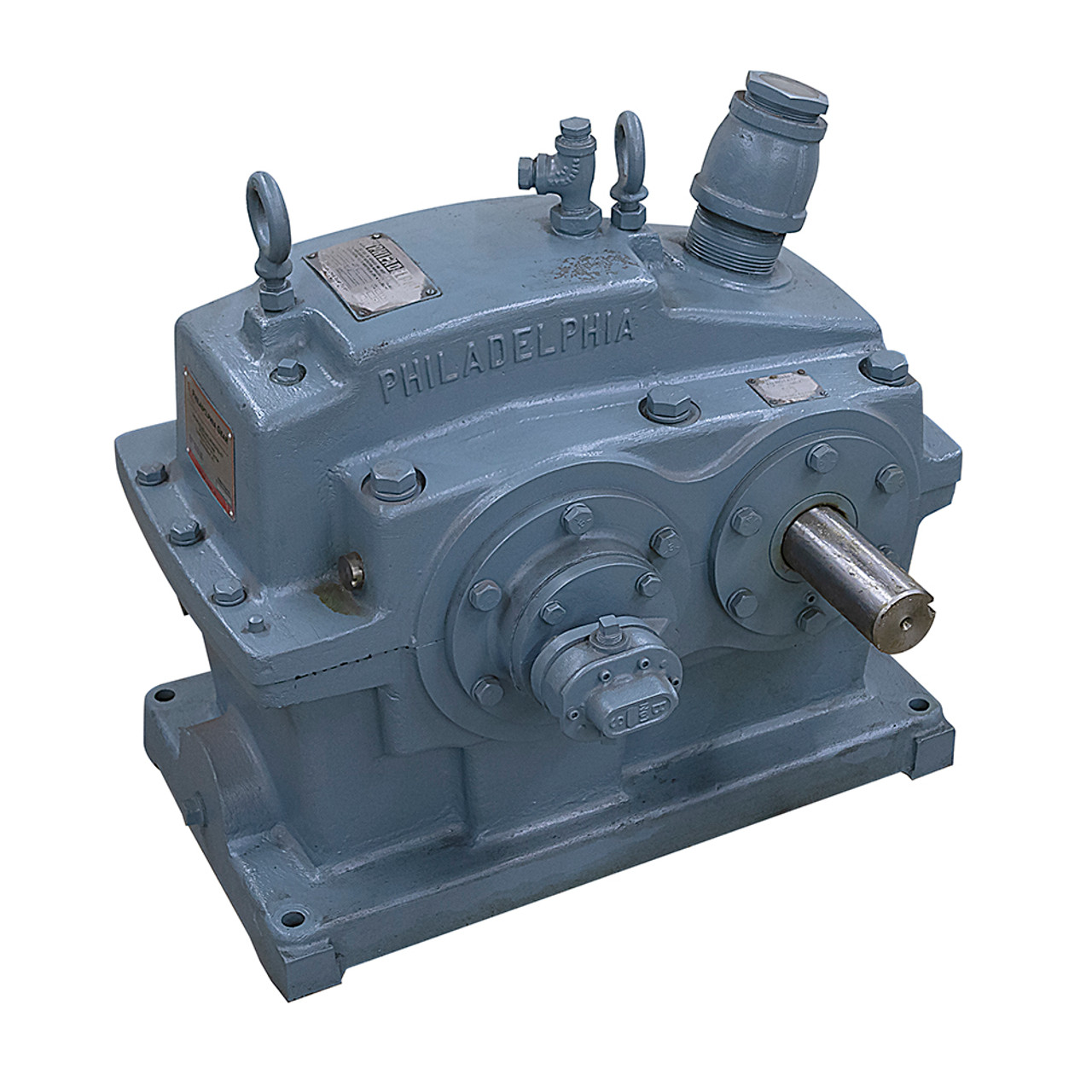

1:1 GEAR BOXRemoved from service and overhauled by Philadelphia Gear, 3108-T Philadelphia Gear gearbox.
SPECIFICATIONS
- Brand Philadelphia Gear
- Model Number 3108-T
- Ratio 1:1
- Input Speed 1170 RPM
- Output Speed 1170 RPM
- Power 295 HP
- Rotation CCW
- Input Shaft 2-1/8" dia. x 4-3/4" w/ 1/2" keyway
- Output Shaft 2-3/4" dia. x 5-3/4" w/ 5/8" keyway
- Mounting Four 0.54" holes on 12" x 22" centers
- Size 23-1/2" x 25" x 23"
- Shpg 602 lbs.
