Product Description

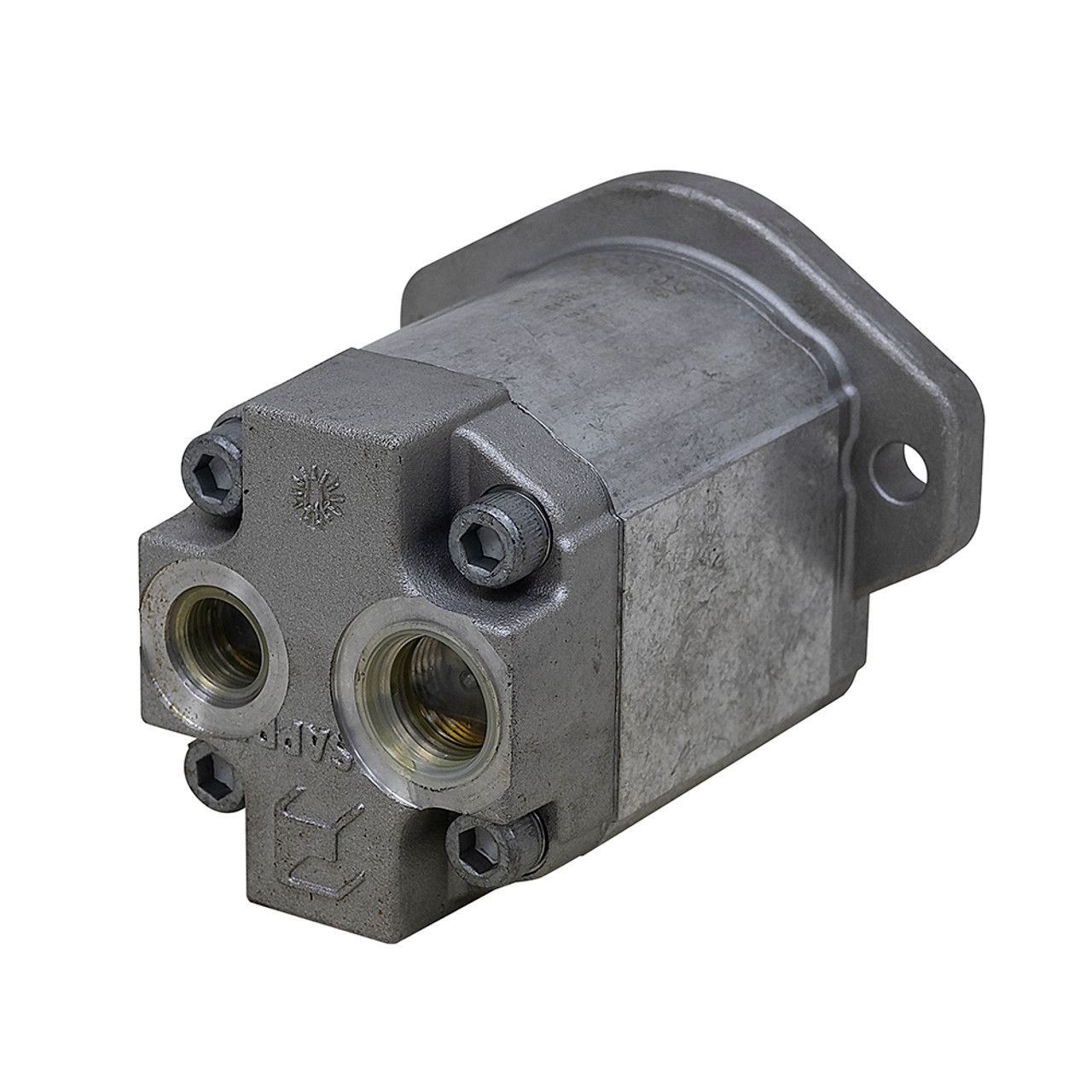

1.29 CU IN CASAPPA HYDRAULIC PUMPNew, Casappa model PLP20.20D0-03S1-POD/OC-N-EL-FS-D hydraulic gear pump. Aluminium mounting flange and rear cover. Rear ports.
SPECIFICATIONS
- Manufacturer Casappa
- Model PLP20.20D0-03S1-POD/OC-N-EL-FS-D
- Disp. 1.29 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
2900 PSI Cont.
3480 PSI Int. - Speed:
500 RPM min.
3000 RPM max. - Flow:
2.6 GPM min.
15.9 GPM max. - Mount 2-Bolt SAE A
- Shaft Splined SAE A 9 teeth
- Inlet Port SAE 12
- Outlet Port SAE 10
- Size 6.43" x 4.53" x 5.12"
- Shpg. 8 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-16305
Badges surplus-item,last-one
Displacement 1.29
Displacement Range2 1.0 - 1.99 cu in/rev
Mount1 2 bolt SAE A
Port Location Rear
Ports SAE
Rotation CW
Shaft Splined
