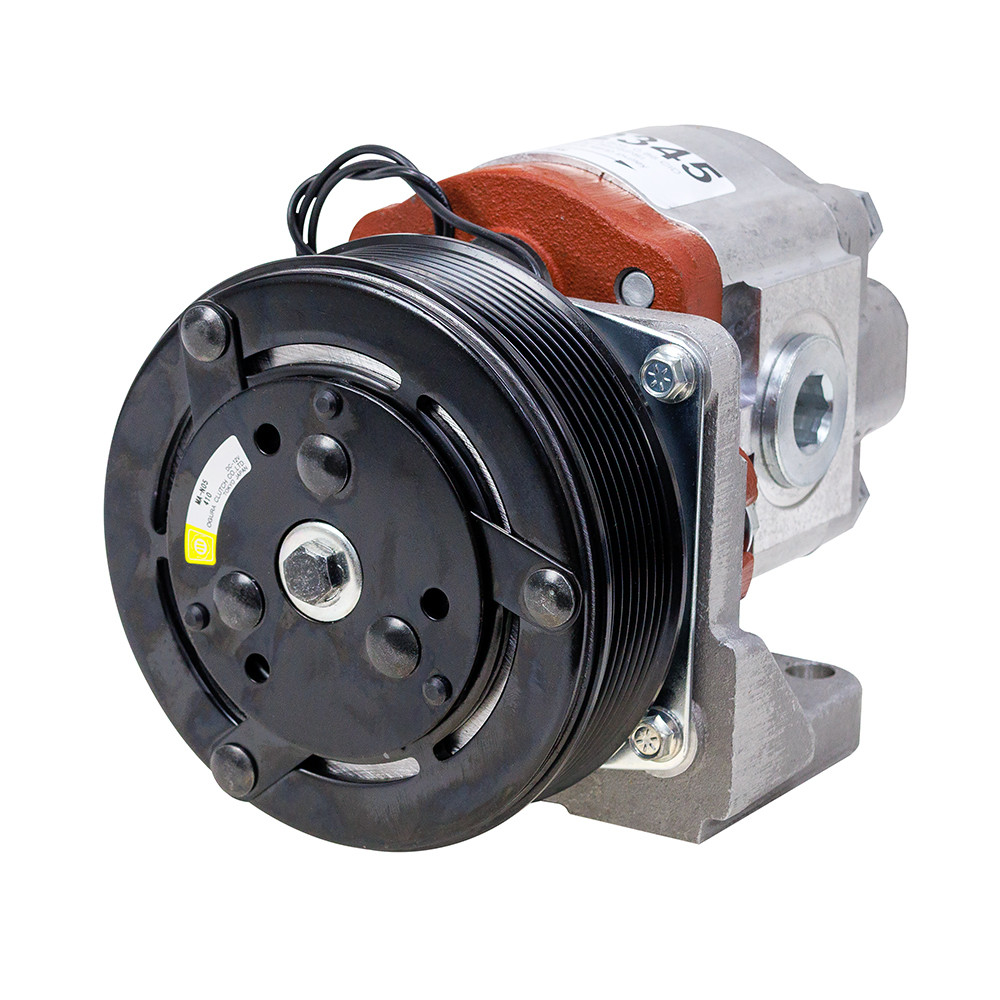

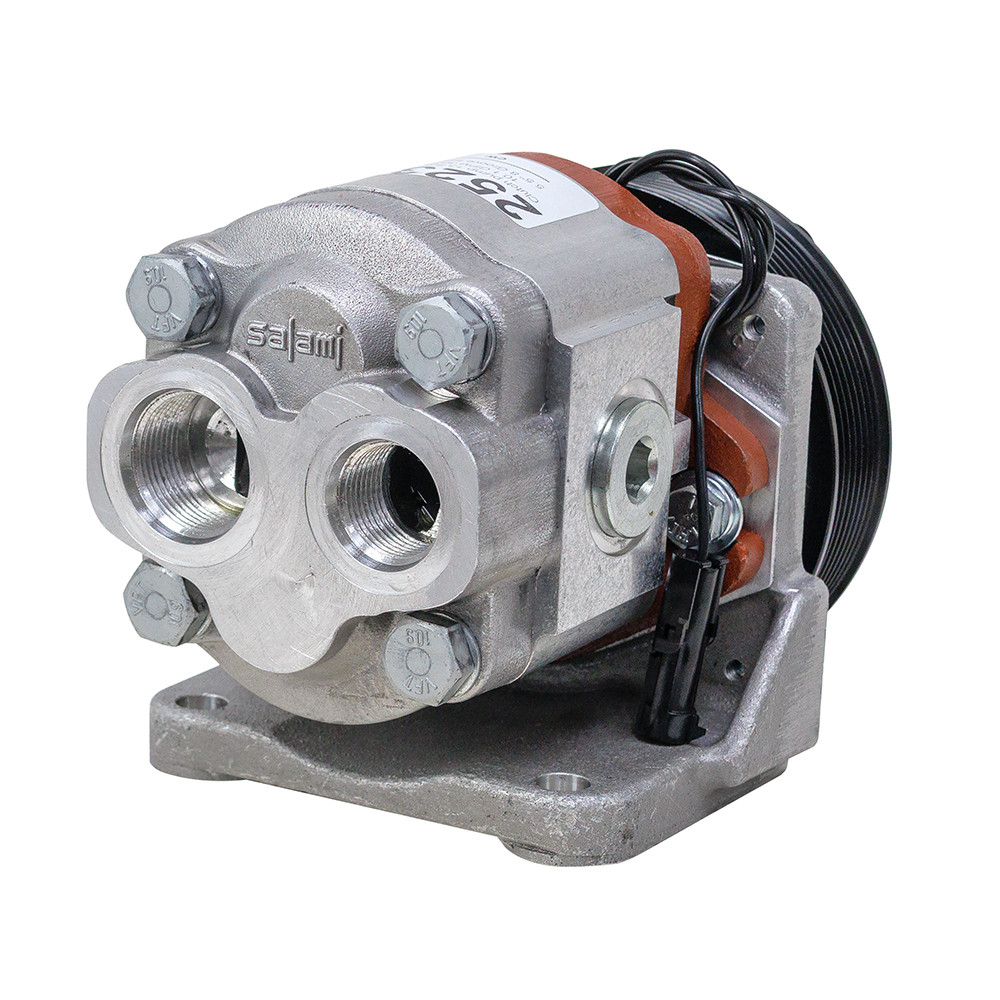

0.86 cu in Hydraulic Clutch Pump w/ 5.5" Eight Groove Serpentine Belt Pulley Bailey 252345 [906695]

Product Description

HYDRAULIC CLUTCH PUMP
Brand new, Bailey 252345 hydraulic clutch pump with 5.5" Eight groove serpentine belt pulley. Aluminum pump body. Compact design featuring double shaft seals, rear, and side ports (side ports with steel plugs). Assembly features Salami 2.5PB-13.8 gear pump, Ogura MA-N05 electromagnetic mobile clutch and Hydra Mount aluminum foot mount.

SPECIFICATIONS

• Brand Bailey
• Part Number 252345
• Clutch Pulley Eight groove serpentine 5.5" dia.
• Clutch Static Torque 90 ft. lbs.
• Clutch Power 12 Volt DC, 47 Watt, 3.9 Amps
• Pump Displacement 0.86 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure 3625 PSI
• Speed 600-3000 RPM
• Flow 7.4 GPM @ 2000 RPM
• Mount Four 0.5" diam. holes on 4" x 2" centers
• Inlet Port SAE 16
• Outlet Port SAE 12
• Size 7-1/2" x 6" x 6"
• Shpg. 26 lbs.
