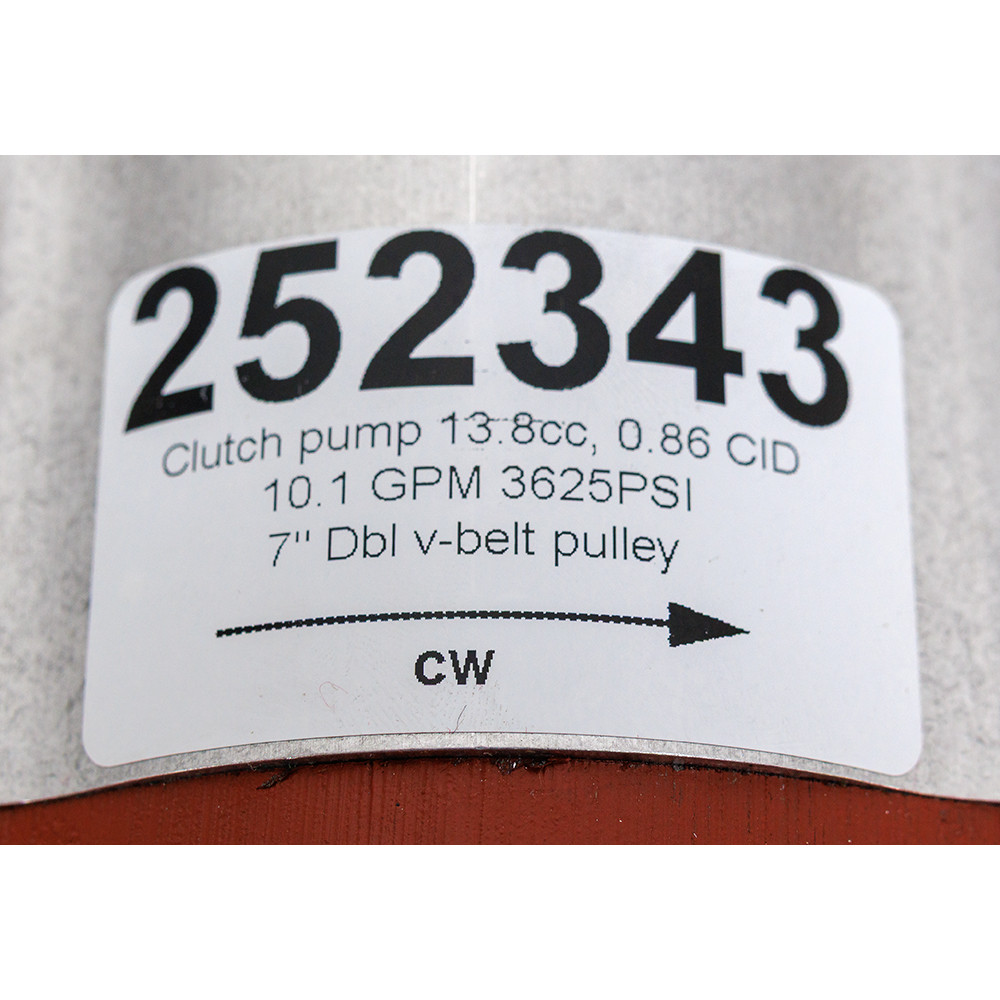

0.86 cu in Hydraulic Clutch Pump w/ 7" Double Groove V-belt Pulley Bailey 252343 [906693]

Product Description

HYDRAULIC CLUTCH PUMP
Brand new, Bailey 252343 hydraulic clutch pump with 7" double groove V-belt pulley. Aluminum pump body. Compact design featuring double shaft seals, rear, and side ports (side ports with steel plugs). Assembly features Salami 2.5PB-13.8 gear pump, Ogura MA-7A-C electromagnetic mobile clutch and Hydra Mount aluminum foot mount.

SPECIFICATIONS

• Brand Bailey
• Part Number 252343
• Clutch Pulley Two, A groove 7" dia.
• Clutch Static Torque 90 ft. lbs.
• Clutch Power 12 Volt DC, 47 Watt, 3.9 Amps
• Pump Displacement 0.86 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure 3625 PSI
• Speed 600-3000 RPM
• Flow 7.4 GPM @ 2000 RPM
• Mount Four 0.5" diam. holes on 4" x 2" centers
• Inlet Port SAE 16
• Outlet Port SAE 12
• Size 7-1/4" x 7" x 7"
• Shpg. 26 lbs.
