Product Description

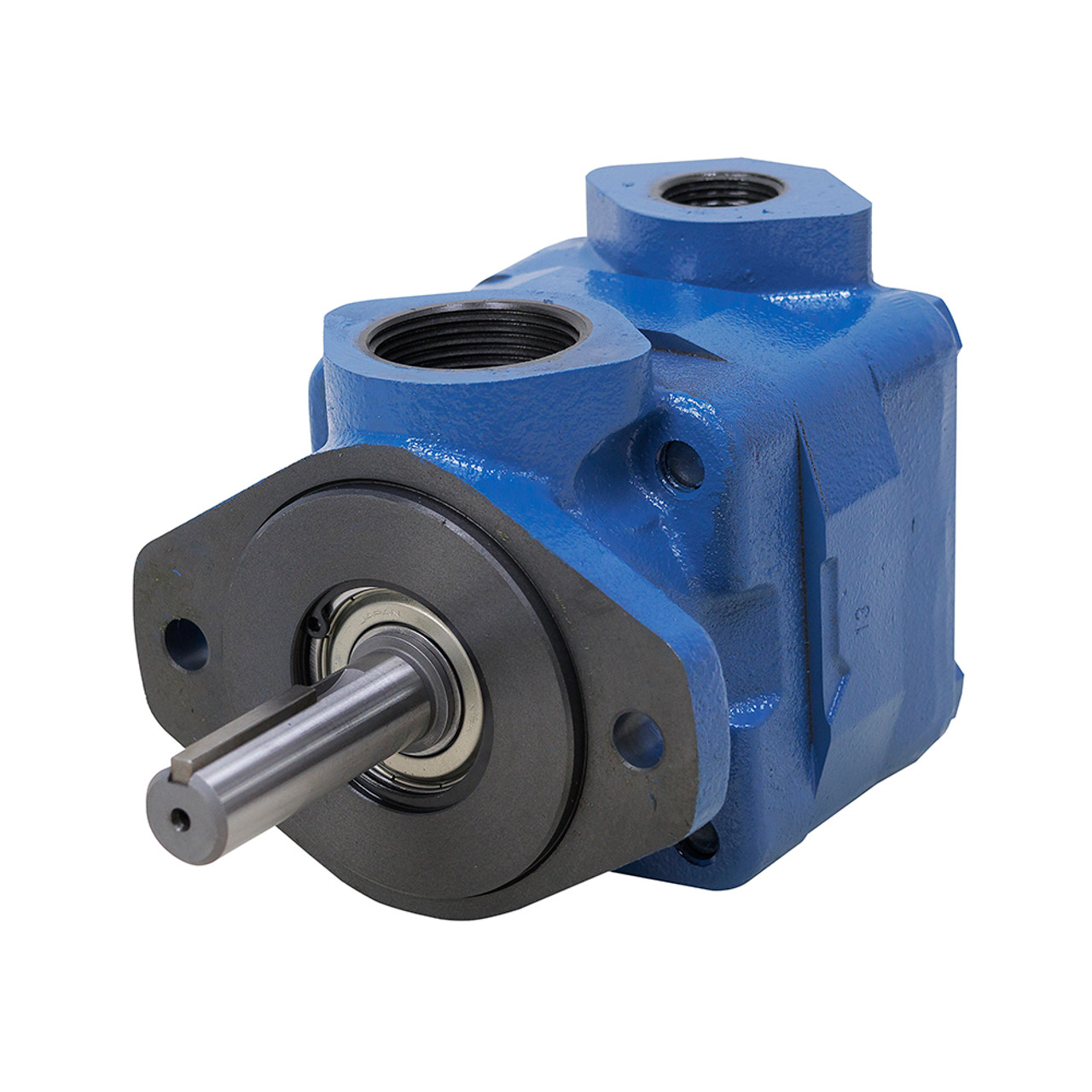

V20 VANE PUMPBrand new, Hydrolico V20-1P13P-1C11 vane pump.
SPECIFICATIONS
- Brand Hydrolico
- Model Number V20-1P13P-1C11
- Disp. 2.59 cu. in./rev.
- Pump Type Vane
- Rotation CW
- Pressure 2200 PSI
- Max. Speed 2400 RPM
- Flow 25.9 GPM
- Mount Two Bolt SAE A
- Shaft 3/4" diameter w/ keyway
- Inlet Port 1-1/4" NPT
- Outlet Port 3/4" NPT
- Size 8.18" x 5.12" x 4.79"
- Shpg 21 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-16618-13
Badges regular-stock
Displacement Range1 2.0 -3.5 cu in/rev
Mount1 2 bolt SAE A
Port Location Top
Ports NPT
Rotation CW
Shaft Keyed
PDF Page Catalog 299-05.pdf
