Product Description

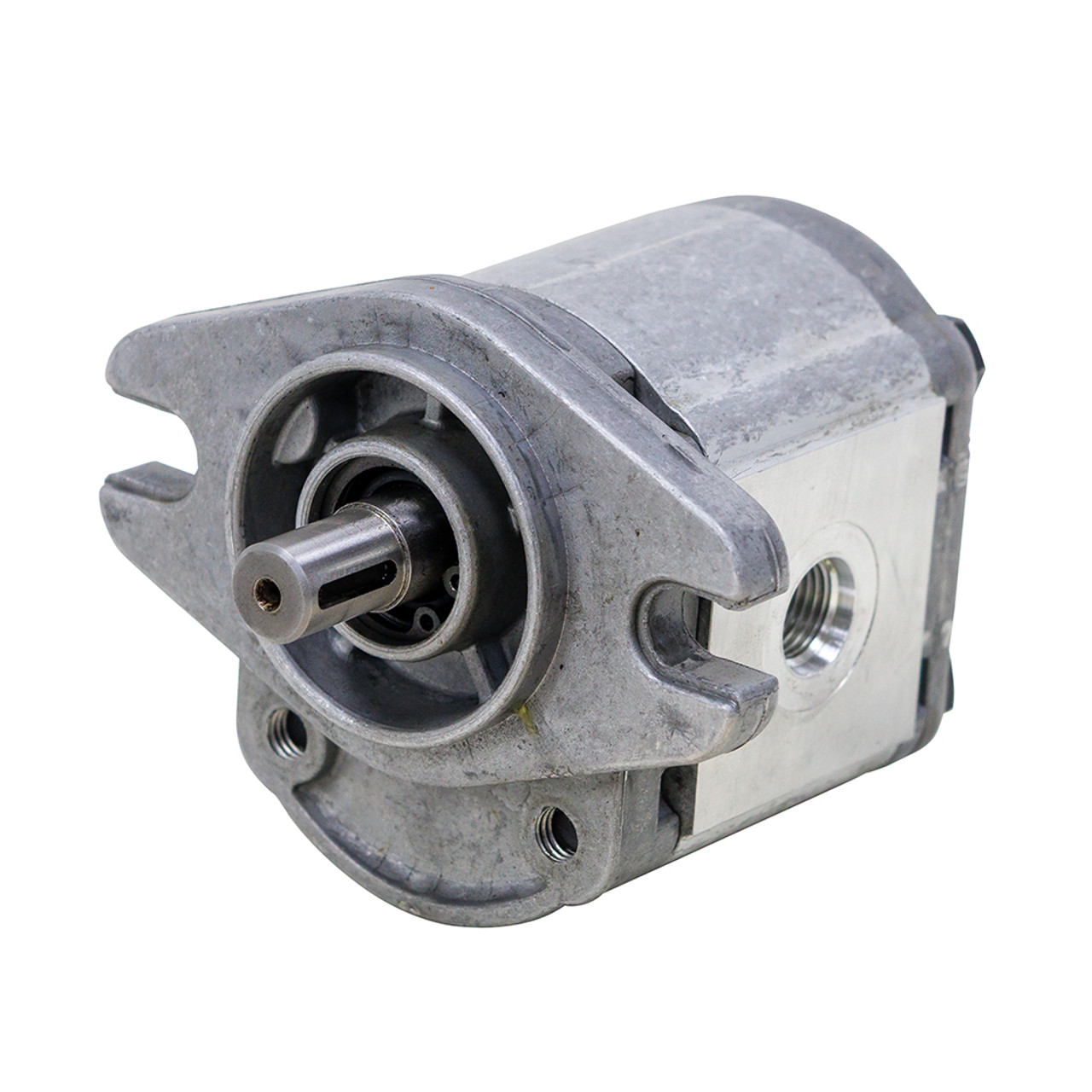

0.18 CU IN PARKER HYDRAULIC GEAR PUMPNew, Parker PZG1AR0727S1 aluminium body hydraulic gear pump. Interchangeable with the PGP505 series gear pumps. Offers superior performance, high efficiency and low noise operation at high operating pressures.
SPECIFICATIONS
- Manufacturer Parker
- Model Number PZG1AR0727S1
- Part Number 331911526
- Disp. 0.18 cu. in. / rev.
- Pump Type Gear
- Rotation CW
- Pressure:
3988 PSI Cont.
4350 PSI Int. - Speed:
500 RPM min.
4000 RPM max. - Flow:
1.34 GPM @ 1725 RPM
2.69 GPM 4000 RPM - Mount Two Bolt SAE AA
- Shaft 1/2" dia. with 0.125 Keyway
- Inlet Port SAE 8
- Outlet Port SAE 6
- Size 4.44" x 4" x 3.33"
- Shpg. 4 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-12161
Badges surplus-item,last-one
Displacement 0.18
Displacement Range2 0 - 0.5 cu in/rev
Mount1 2 bolt SAE AA
Port Location Side
Ports SAE
Rotation CW
Shaft Keyed
