Product Description

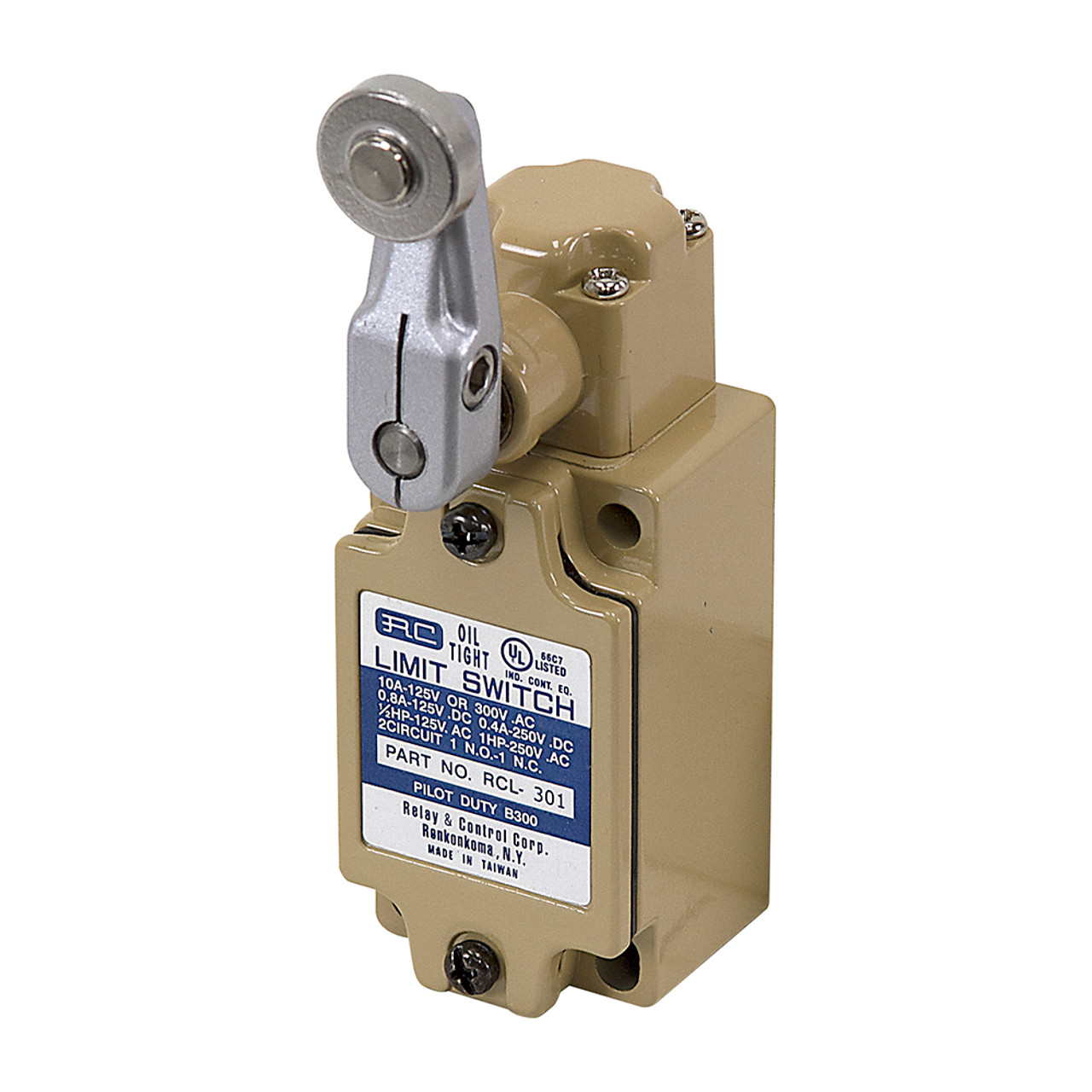

PRECISION OIL TIGHT ROLLER LEVER LIMIT SWITCHBrand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 30 operations per minute.
SPECIFICATIONS
- Model RCL-301
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings:
10 Amps @ 125 VAC
1/2 HP @ 125 VAC, 1 HP @ 250 VAC
300 VAC max. - Actuator details 2-1/8" arm w/3/4" dia. roller
- Operating Force Max. 2 in.lbs.
- Release Force Min. 2 in.oz.
- Pre-Travel Max. 25° to 30°
- Over-Travel Min. 60°
- Differential Travel Max. 16°
- Total Travel Min. 90°+10°
- Terminals Screw
- Size 1-5/8" x 1-1/2" x 4" (housing only)
- Mount 4 holes 1-1/8" x 2-3/8"
- Shpg. 1 lb.
