Product Description
PRECISION OIL TIGHT ADJUSTABLE ROD LEVER LIMIT SWITCHBrand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-175°F. Maximum operating frequency 30 operations per minute.
SPECIFICATIONS
- Model RCL-304
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings:
10 Amps @ 125 VAC
1/2 HP @ 125 VAC, 1 HP @ 250 VAC
300 VAC max. - Actuator details 6-1/4" wire rod
- Operating Force Max. 5 in.oz.
- Release Force Min. 1 in.oz.
- Pre-Travel Max. 15° to 20°
- Over-Travel Min. 30°
- Differential Travel Max. 12°
- Travel Force 1/2 in.lb.
- Total Travel Min. 43°
- Terminals Screw
- Size 1-5/8" x 1-1/2" x 4" (housing only)
- Mount 4 holes 1-1/8" x 2-3/8"
- Shpg. 1 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 11-3509-E
PDF Page Catalog298-151.pdf
Dimensional Diagram dr11-3509-E.pdf
Badges regular-stock
![RCL-304 Limit Switch Adjustable Rod Lever 43 Degree Movement - Relay & Control Corp [501031]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8479/97899/11-3509-E__38782.1762805790.jpg?c=1 "RCL-304 Limit Switch Adjustable Rod Lever 43 Degree Movement - Relay & Control Corp [501031]")
![RCL-302 Limit Switch Adjustable Roller Lever 43 Degree Movement - Relay & Control Corp [501029]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8445/97897/11-3509-C__50022.1762805790.jpg?c=1 "RCL-302 Limit Switch Adjustable Roller Lever 43 Degree Movement - Relay & Control Corp [501029]")

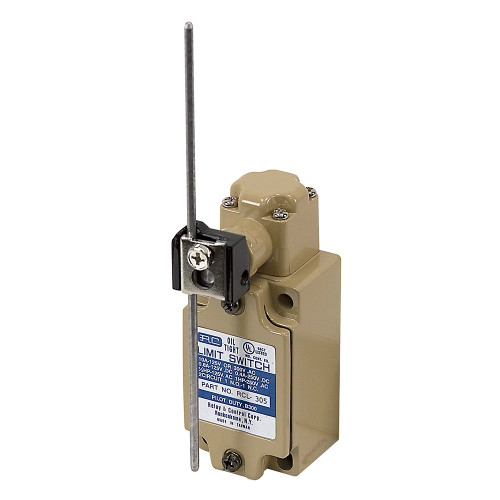

![RCL-305 Limit Switch Adjustable Rod Lever 90 Degree Movement - Relay & Control Corp [501032]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8501/97900/11-3509-F__55033.1762805790.jpg?c=1 "RCL-305 Limit Switch Adjustable Rod Lever 90 Degree Movement - Relay & Control Corp [501032]")
