Product Description
COIL SPRING ROD MINI LIMIT SWITCHBrand new, RELAY & CONTROLS CORP limit switch. Gasket on housing for dust proof, oil tight and water resistant sealing. Operating temperature range 5°F-160°F. Maximum operating frequency 30 operations per minute. Rubber strain relief. Metal base with plastic cover.
SPECIFICATIONS
- Model RCM-403
- Contact Type 1 Normally Open, 1 Normally Closed
- Contact Ratings 5 Amps @ 250 VAC
- Actuator details 3.25" coil spring rod
- Operating Force Max. 90g
- Pre-Travel Max. 30mm
- Over-Travel Min. 20mm
- Terminals Screw
- Mount 4 holes 21mm x 56mm
- Size 1.125" x 0.97" x 3.22" (housing only)
- Shpg. 1 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 11-3508-D
PDF Page Catalog298-151.pdf
Dimensional Diagram dr11-3508-D.pdf
Badges regular-stock
![RCM 403 Mini Limit Switch Coil Spring Rod - Relay & Control Corp [501023]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8318/97891/11-3508-D__96103.1762805788.jpg?c=1 "RCM 403 Mini Limit Switch Coil Spring Rod - Relay & Control Corp [501023]")
![RCM 408 Mini Limit Switch Top Push Rod Plunger - Relay & Control Corp [501026]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8383/97894/11-3508-G__27829.1762805789.jpg?c=1 "RCM 408 Mini Limit Switch Top Push Rod Plunger - Relay & Control Corp [501026]")
![RCL-306 Limit Switch Wobble Head Coil Spring Rod - Relay & Control Corp [501033]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8556/97901/11-3509-G__22005.1762805791.jpg?c=1 "RCL-306 Limit Switch Wobble Head Coil Spring Rod - Relay & Control Corp [501033]")

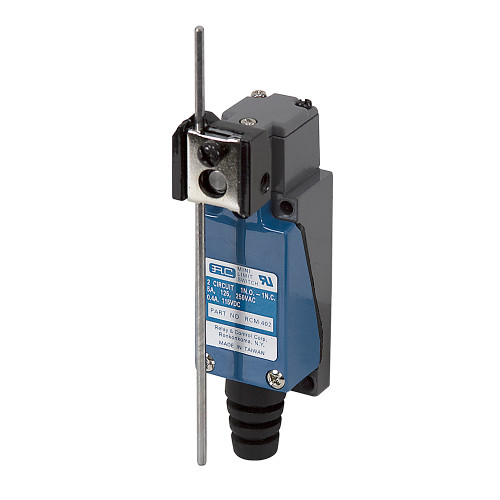

![RCM 402 Mini Limit Swith Adjustable Rod Lever - Relay & Control Corp [501022]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8299/97890/11-3508-C__49458.1762805788.jpg?c=1 "RCM 402 Mini Limit Swith Adjustable Rod Lever - Relay & Control Corp [501022]")
