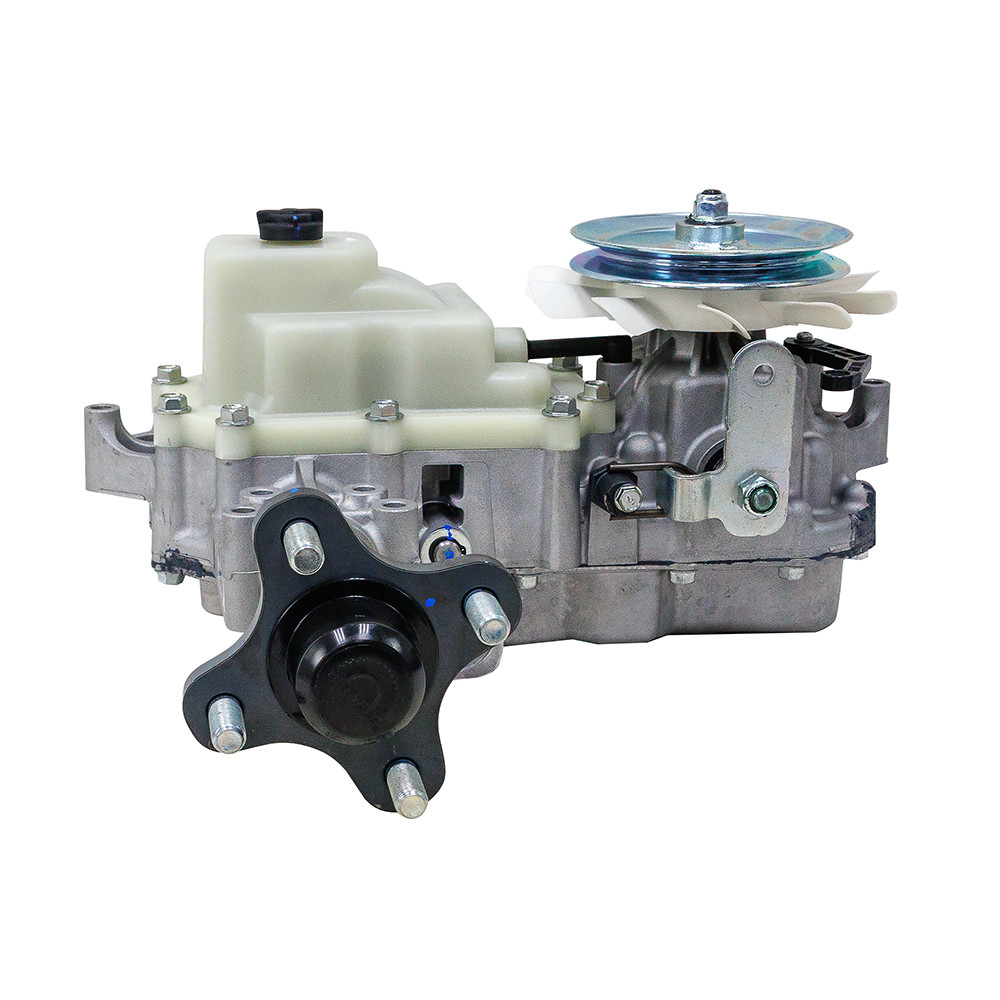

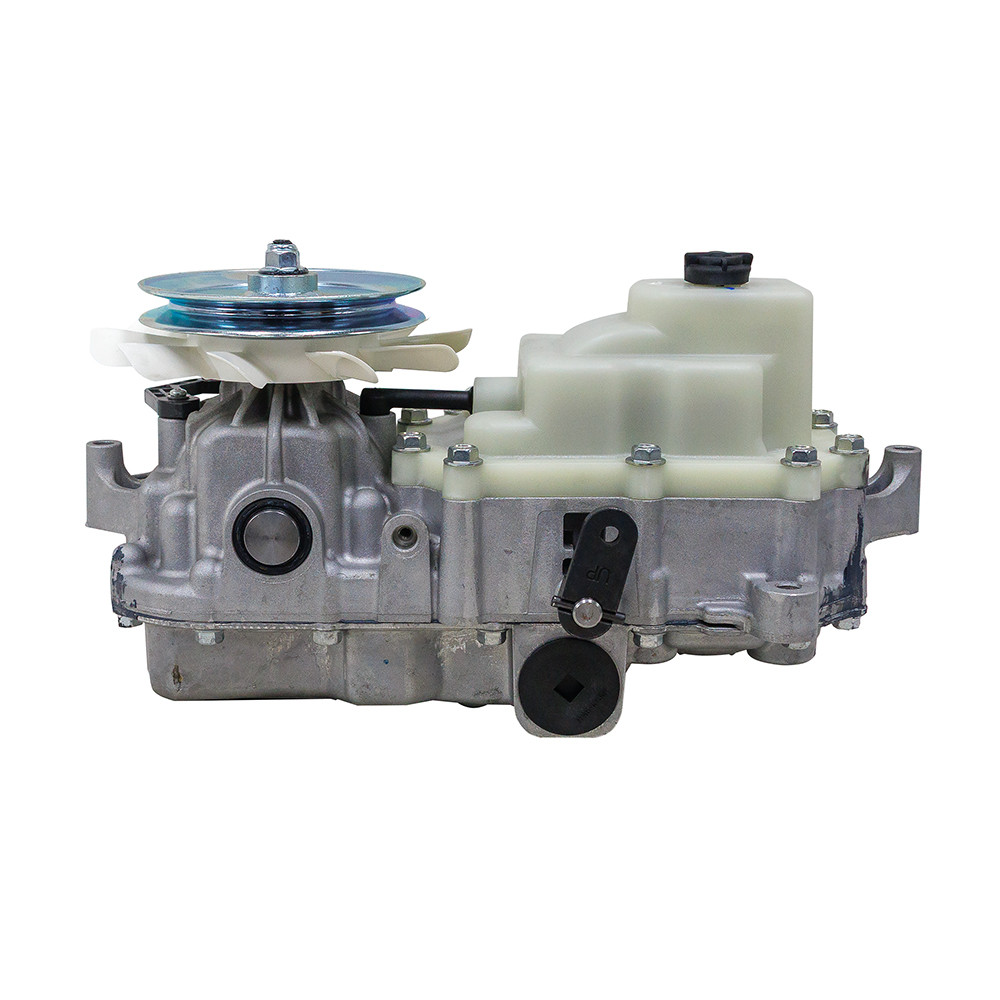

Right Hand Hydrostatic Transaxle Tuff Torq TZ-450B-X 787Q2124030 [604195]

Product Description

ZTR RIGHT HAND TRANSAXLE ASSEMBLY
New, Tuff Torq TZ-450B-X 787Q2124030 right hand hydrostatic transaxle. Features 5" dia. belt-drive input pulley with 7" dia. fan, polymer fluid tank, heavy steel axles for added strength and control, aluminum case for professional-grade durability and dependable performance and an internal braking system. Designed to be used on residential zero-turn mowers.

SPECIFICATIONS

• Brand Tuff Torq
• Part Number 787Q2124030
• Model Number TZ-450B-X
• Input Rotation CW
• Vehicle Speed Max. 10.5 mph
• Tire Size 23" max.
• Vehicle Weight max. w/ Attachments & Operator 1275 lbs. (578 kg)
• Reduction Ratio 18:1
• Pump/Motor Displacement 10/10 cc/rev
• Brake Capacity min. 180 lb-ft (180 Nm)
• Brake Arm Torque 11.7 lb-ft (15.8 Nm)
• Axle Torque 321 lb-ft (435 Nm)
• Fan Size dia. 7" (177.8 mm)
• Pulley Size dia. 5" (127 mm)
• Axel Length 4-1/8" (Housing to Face of Hub)
• Output Four bolt (1/2"-20 TPI) wheel hub on 4" B.C.
• Mount Six 0.38" dia. thru holes
• Size 15-1/2" x 15-1/4" x 9"
• Shpg 41 lbs.
