Product Description

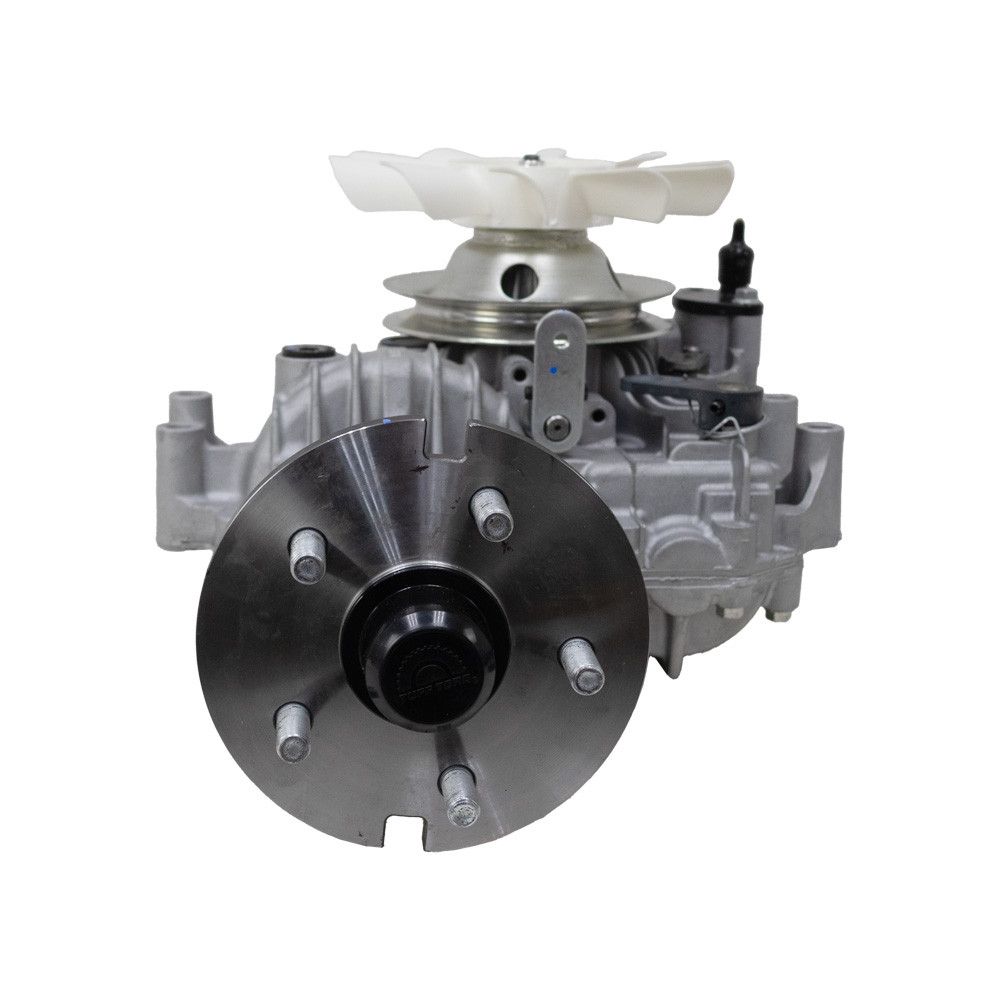

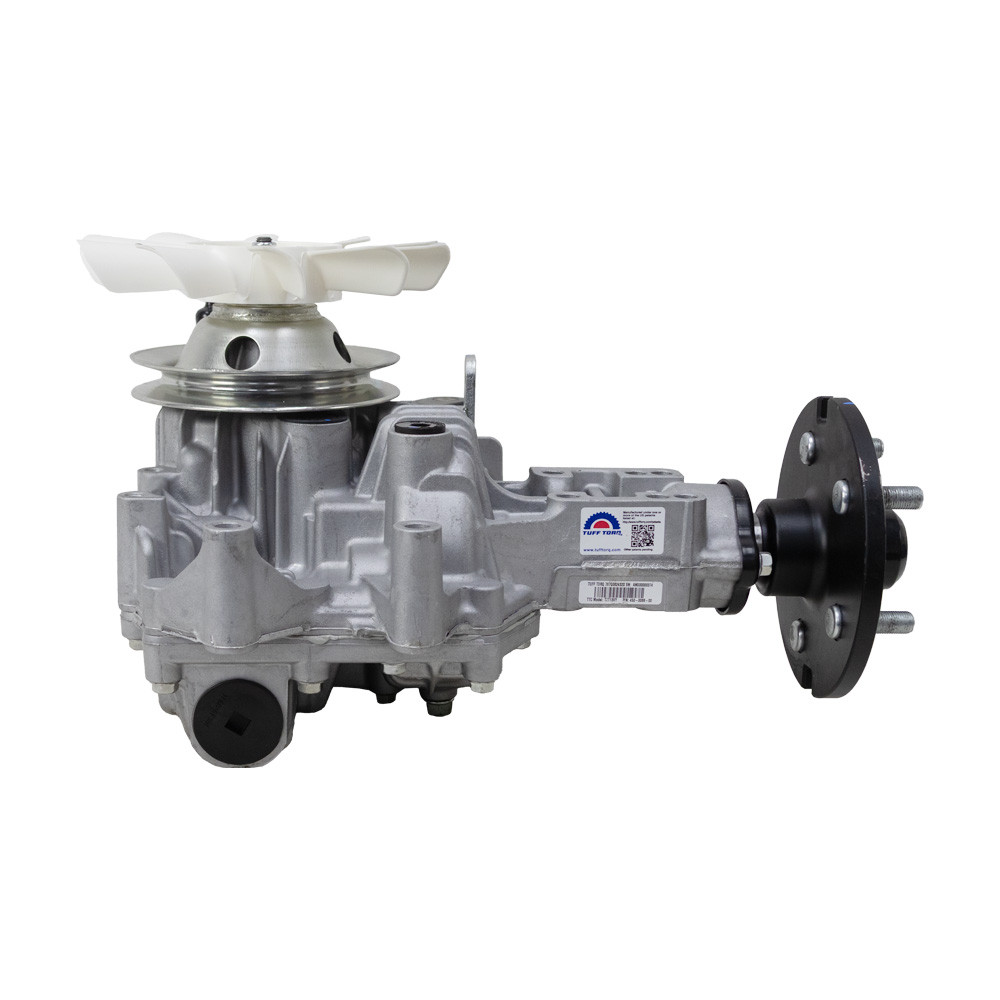

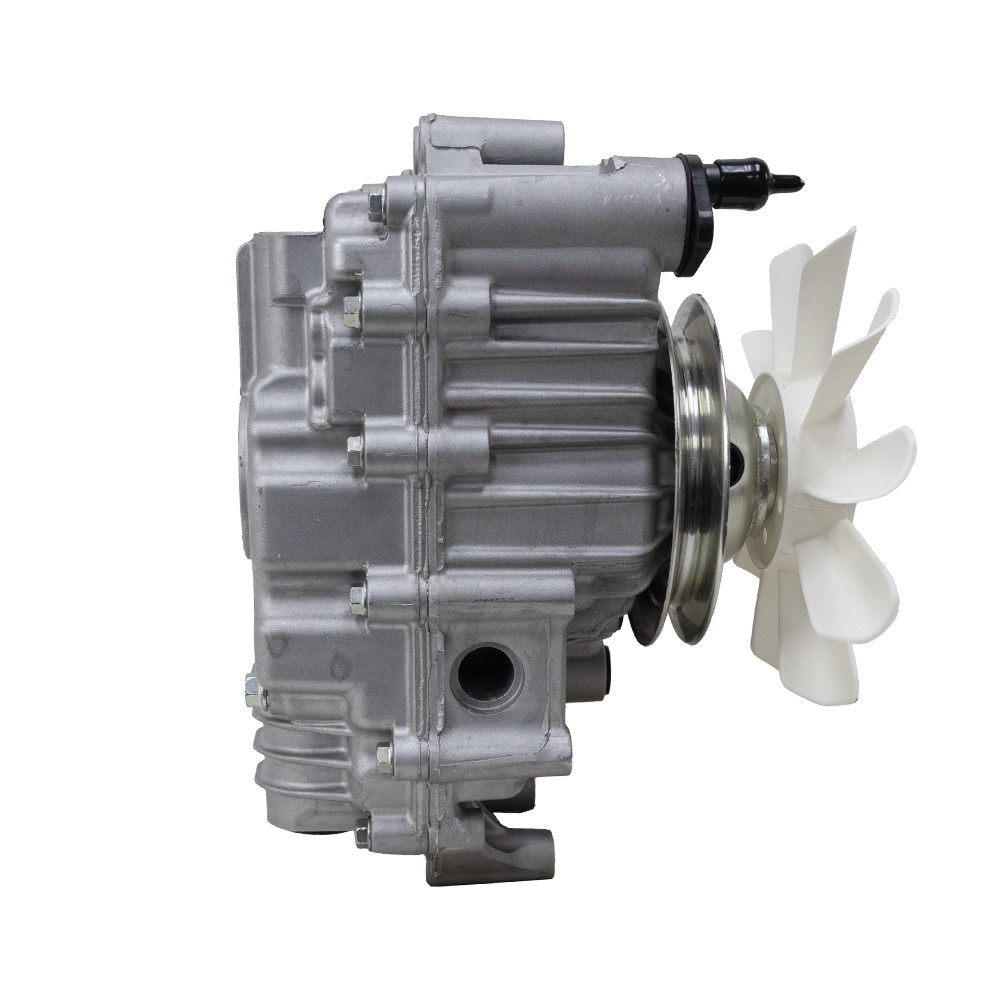

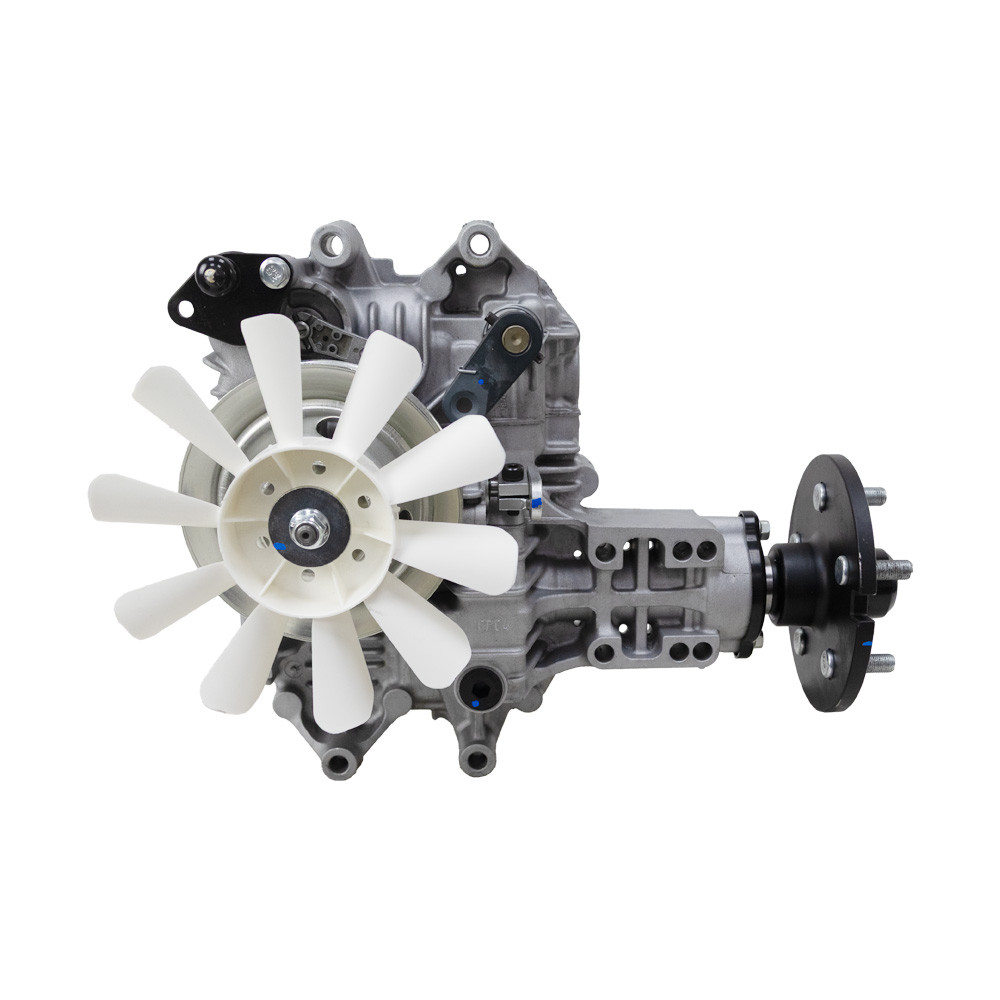

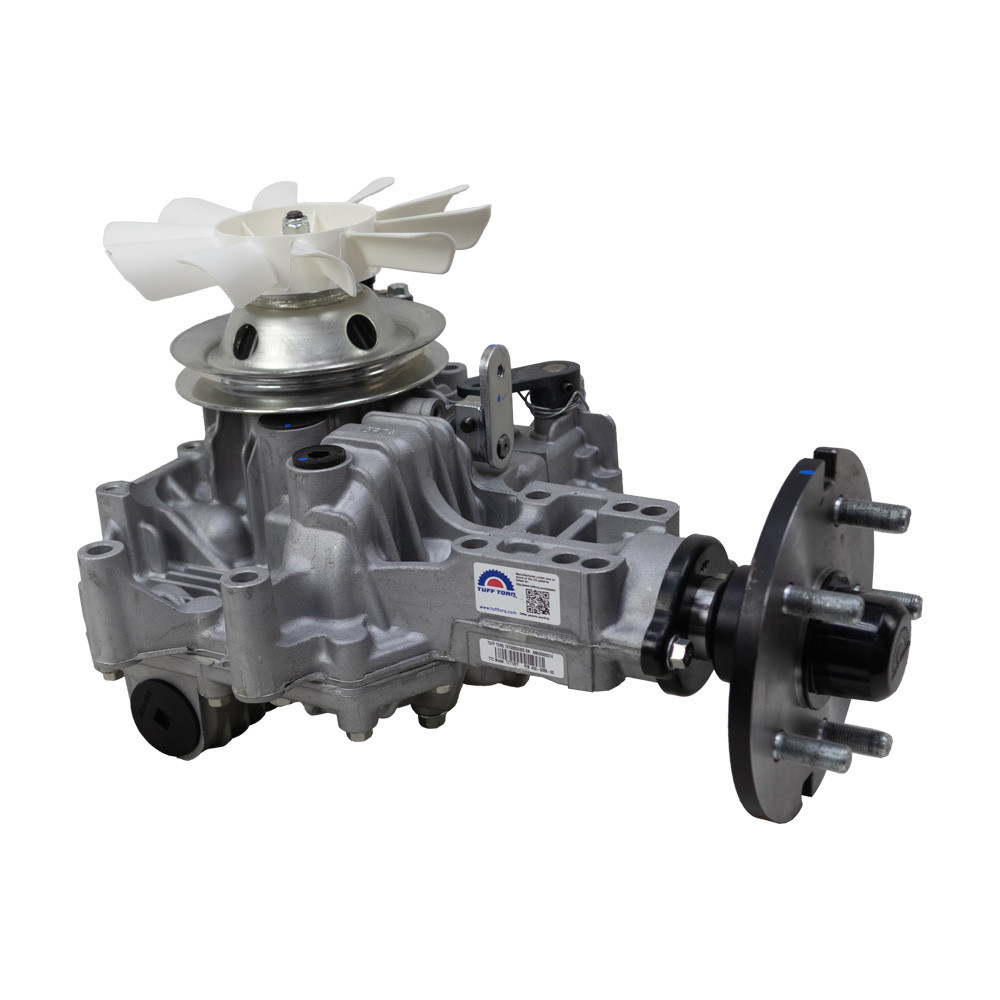

ZTR RIGHT HAND TRANSAXLE ASSEMBLY
New, Tuff Torq TZT13 right hand hydrostatic transaxle. Features L.O.G.I.C. case design for easy installation, reliability and serviceability, maintenance-free wet disk internal braking system for reliable stopping power and larger pump and motor displacements providing the torque you need for faster mowing speed and maneuverability. Designed to be used on commercial zero-turn mowers.
SPECIFICATIONS
- Brand Tuff Torq

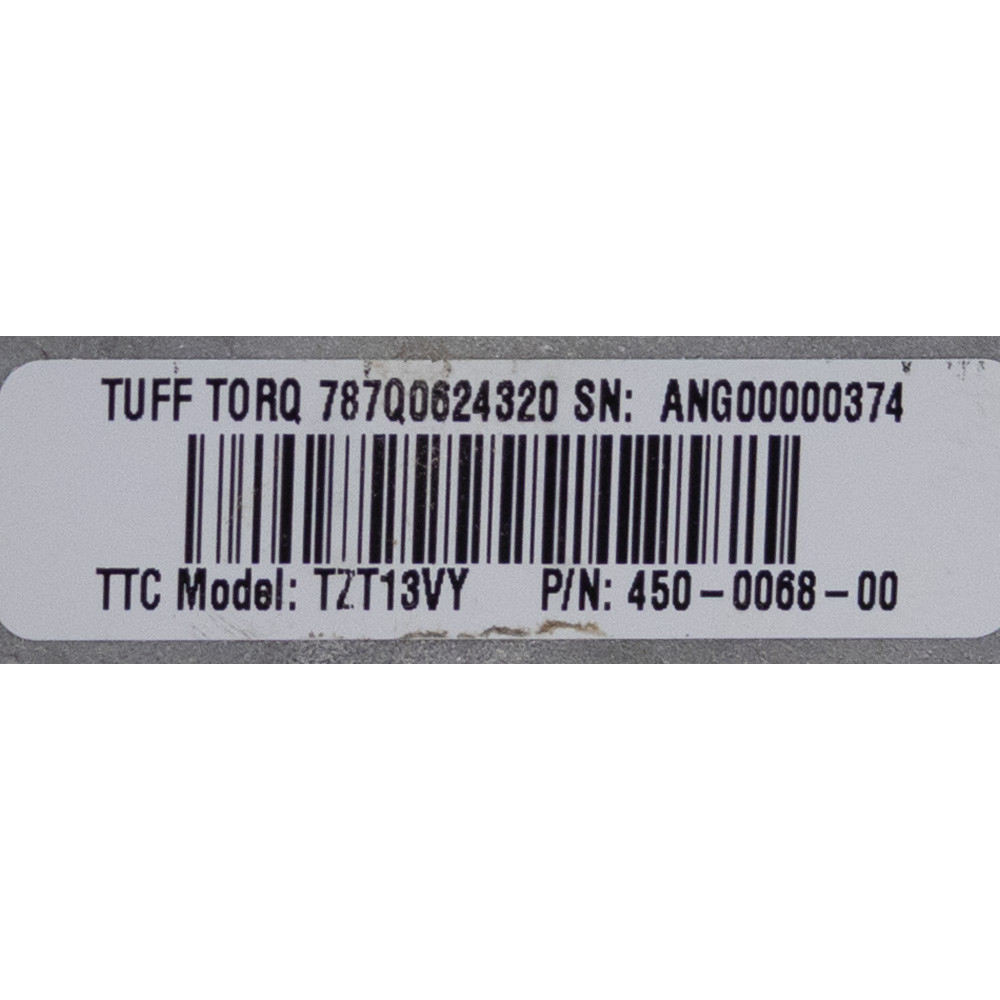

- Part Number 787Q0624320
- Model Number TZT13VY
- Input Rotation CW
- Vehicle Speed Max. 12-13 mph
- Tire Size 24"+
- Vehicle Weight max. w/ Attachments & Operator 2000 lbs. (907 kg)
- Reduction Ratio 16.65:1
- Pump/Motor Displacement 13/13 cc/rev
- Brake Capacity min. 317.9 lb-ft (431 Nm)
- Brake Arm Torque 18.07 lb-ft (24.5 Nm)
- Axle Torque 216.8 lb-ft (294 Nm)
- Fan Size dia. 8.5" (215.9 mm)
- Pulley Size dia. 6" (152.4 mm)
- Pulley Height (from axle center) 3.24" (82.3 mm)
- Output Five bolt (1/2"-20 TPI) wheel hub on 4-1/2" B.C.
- Mount Four 0.47" dia. thru holes
- Size 18.25" x 13.5" x 10.25"
- Shpg 60 lbs.
