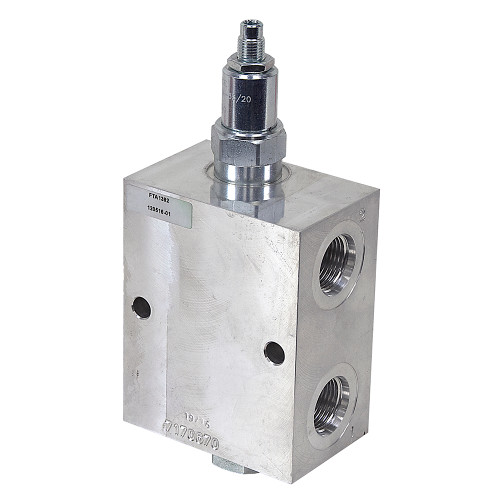

![SAE 12 30 GPM Hyd Motor Relief Bypass Valve Fluidtech FTA1382 [904002]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/1280x1280/products/8395/112182/9-8745__81920.1762809255.jpg?c=1 "SAE 12 30 GPM Hyd Motor Relief Bypass Valve Fluidtech FTA1382 [904002]")
![SAE 12 30 GPM Hyd Motor Relief Bypass Valve Fluidtech FTA1382 [904002]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/100x100/products/8395/112182/9-8745__81920.1762809255.jpg?c=1 "SAE 12 30 GPM Hyd Motor Relief Bypass Valve Fluidtech FTA1382 [904002]")
Product Description
SAE 12 30 GPM HYDRAULIC MOTOR RELIEF BYPASS VALVEBrand new, FLUIDTECH four port inline crossover relief and bypass check valve. Provides overload and shut off protection for motor wind down when used with hydraulic control valves that have blocked work ports in neutral. For non reversible applications only. Ideal for use with skid steer loader or tractor valve outlets for operating remote hydraulic motor for overload and shut off protection. Two mounting holes for 3/8" bolts.
SPECIFICATIONS
- Flow Rating 30 GPM max
- Pressure Rating 3000 PSI max
- Relief Range 450-3000 PSI
- Factory Setting 2500 PSI
- Ports SAE 12
- Size 2-1/2" x 3-7/8" x 8-1/8"
- Shpg. 7 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-8745
PDF Page Catalog298-34.pdf
Additional Information as9-8745.pdf
Badges made-in-usa,regular-stock
Valve Type Relief Valves
