Submeter Electro Industries Gauge Tech Shark 100S-60-10-V3-485P [501004]

Product Description

MULTIFUNCTION ELECTRIC SUBMETER
Used take off, Electro Industries Gauge Tech Shark 100S-60-10-V3-485P submeter. Revenue certified 0.2% energy accuracy meters. Provide standard Modbus communication over RS485 serial or simultaneous Ethernet. ANSI C12.20 0.2 Accuracy Class Energy Measurements. Bright Red LED Display with Three 0.56” Lines. Applications include university energy management, industrial cost allocation, commercial building tenant billing, government facility energy management, shopping mall tenant billing and airport tenant billing.

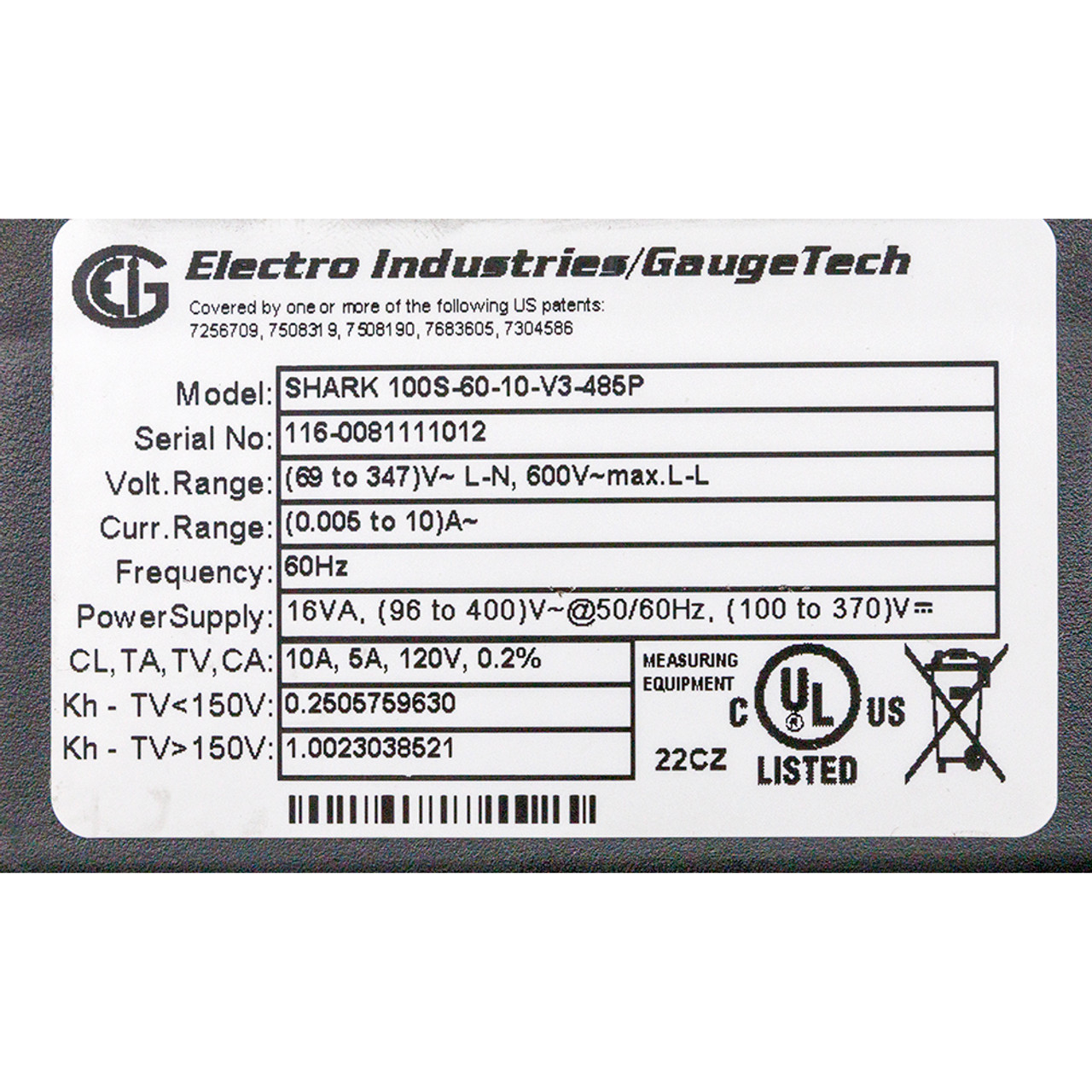

SPECIFICATIONS

• Brand Electro Industries Gauge Tech
• Model Number 100S-60-10-V3-485P
• Series Shark 100S
• Voltage Range 69 to 347 Volt AC L-N, 600 Volt AC max.L-L
• Current Range 0.005 to 10 Amps
• Frequency 60 Hz
• Power Supply 16VA, 96 TO 400 Volt AC @ 50/60Hz, 100 to 370 Volt DC
• Mount Two 0.45 dia. holes on 5.9" centers
• Size 7-7/8" x 7-1/2" x 3-1/4"
• Shpg 3 lbs.
