Product Description
SOLENOID CARTRIDGE VALVE

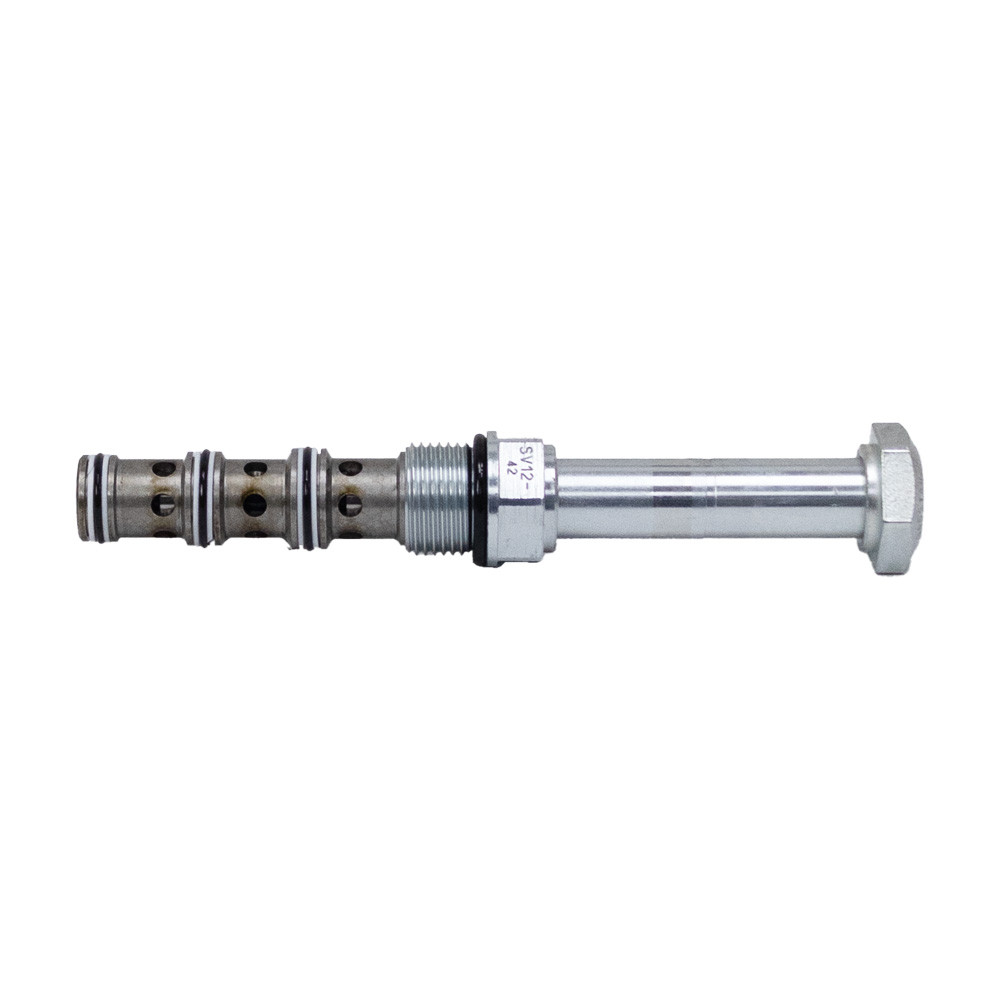

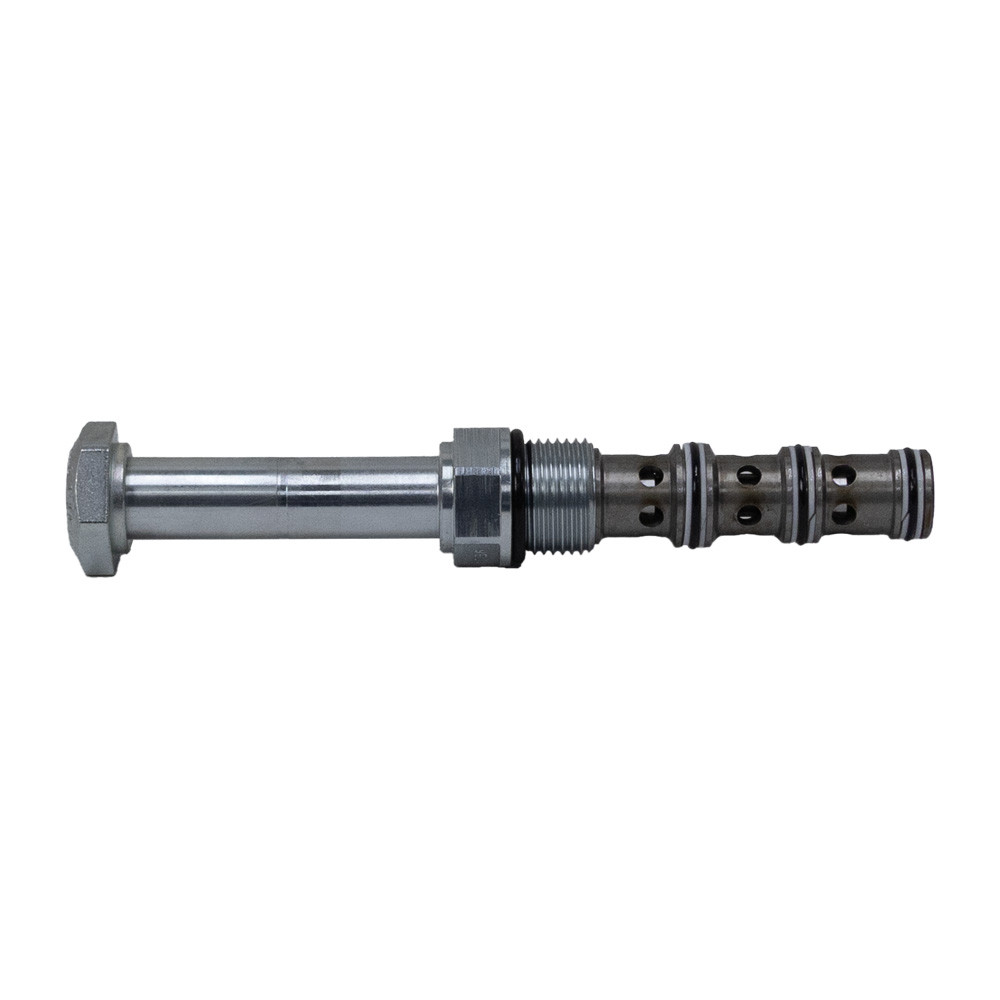

New Hydraforce SV12-42 solenoid-operated, 4 port, 2 position, direct-acting spool type, screw in hydraulic cartridge valve. When de-energized, the SV10-42 flow paths are port 3 to port 4, and port 2 to port 1. When energized, the valve's spool shifts to block all ports.
SPECIFICATIONS
- Brand Hydraforce
- Model Number SV12-42-0-N-00
- Operating Pressure 3500 PSI
- Proof Pressure 7000 PSI
- Temperature -40 to 212°F (-40 to 100°C)
- Cavity VC12-4
- Size 7.72" x 1.25" x 1.25"
- Shpg 2 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number SV12-42-0-N-00
Badges made-in-usa,surplus-item,last-one
Additional Information as903089.pdf
Dimensional Diagram dr903089.pdf
Wiring Diagram w903089.pdf
Valve Type Solenoid Valves
