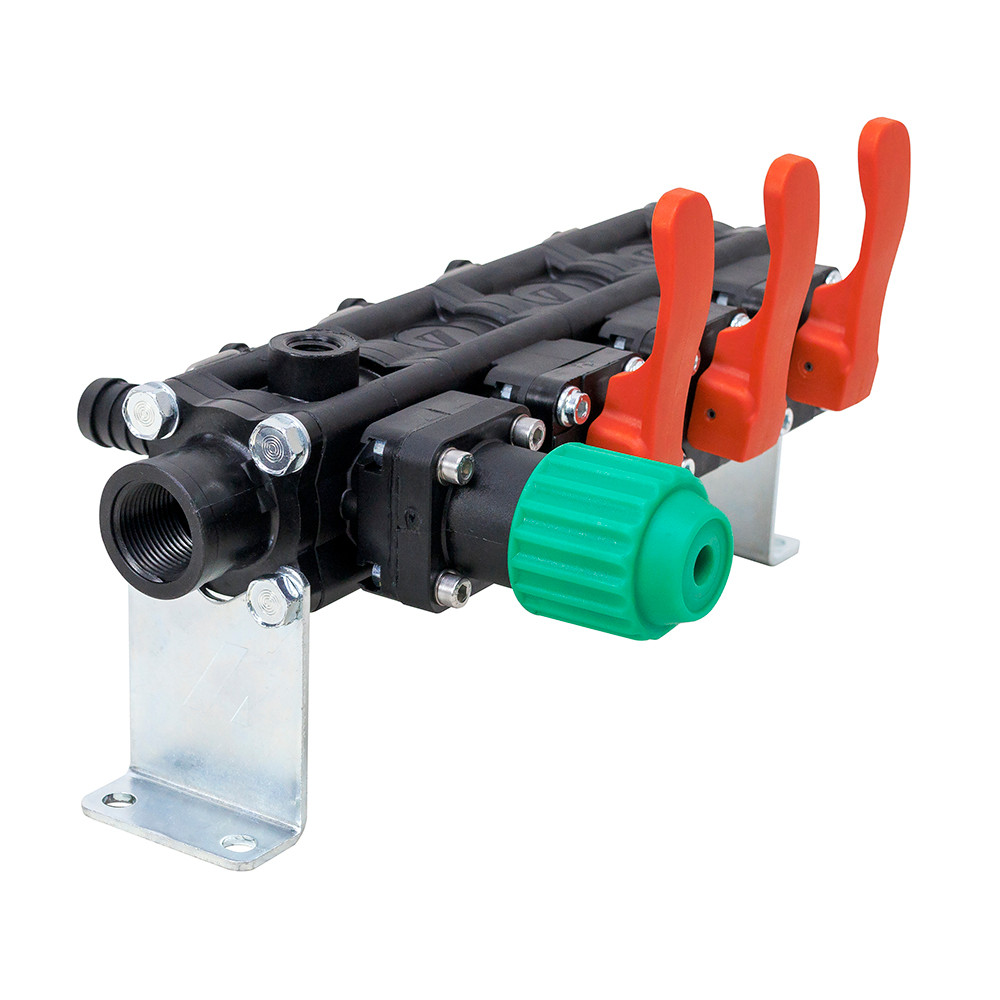

Three Boom Valve with Pressure Regulating Valve Pentair Hypro 463CPV16 [200874]

Product Description

MANIFOLD ASSEMBLY
New, Pentair Hypro 463CPV16 three boom valve with pressure regulating valve. Designed for agricultural and industrial spraying of a variety of fluids. These direct-acting valves can be used for pressure control or boom section on/off control. The modular design reduces plumbing and allows for easy service of components. These valves work well with roller, diaphragm and centrifugal pumps.

SPECIFICATIONS

• Brand Pentair Hypro
• Model Number 463CPV16
• Series 463
• Number of Sections 3
• Max. Flow 12 GPM
• Max. Pressure 290 PSI
• Boom Valve Outlet 1/2" hose barb
• Regulating Valve Outlet 3/4" hose barb
• Ports 3/4"-14 threads
• Material Fiberglass-reinforced nylon
• Mount Four 0.35" dia. holes on 1-1/2" x 11" centers
• Size 11-3/4" x 8-1/2" x 4-3/4"
• Shpg 5 lbs.
