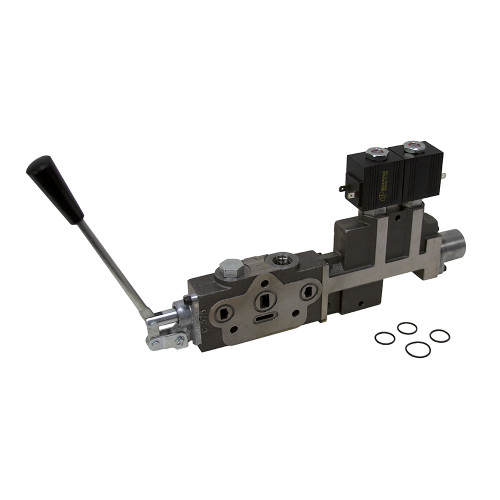

SVW1AA-S12Q Prince SV 12 Volt DC Solenoid/Manual Lever Operated Single Acting Work Section [904784]

Product Description

WORK SECTION 12 VOLT DC SOLENOID SV SECTIONAL CONTROL VALVE
New PRINCE 12 volt DC solenoid and manual lever operated work section for SV sectional control valves. Top  ports. Load check. Open center and open center power beyond hydraulic systems requires a pressure build up outlet section to supply 150-200 PSI pressure to solenoid valves to actuate spool. Closed center systems do not require pressure build-up outlet section as long as 200 PSI is maintained in the closed center position to actuate spool properly. Can be stacked with manual SV sections. Includes between section o-ring seal kit.

SPECIFICATIONS

• Single Acting
• Model Number SVW1AA-S12Q
• Spool Actuator Voltage  12 Volt DC and manual lever
• Spool Type 4-Way 3-Position
• Spool Action Spring center
• Flow 12 GPM nominal
• Pressure 3000 PSI max.
• Ports SAE 8
• Size 13-3/4" x 1-1/2" x 7-3/4"
• Shpg. 16 lbs.
