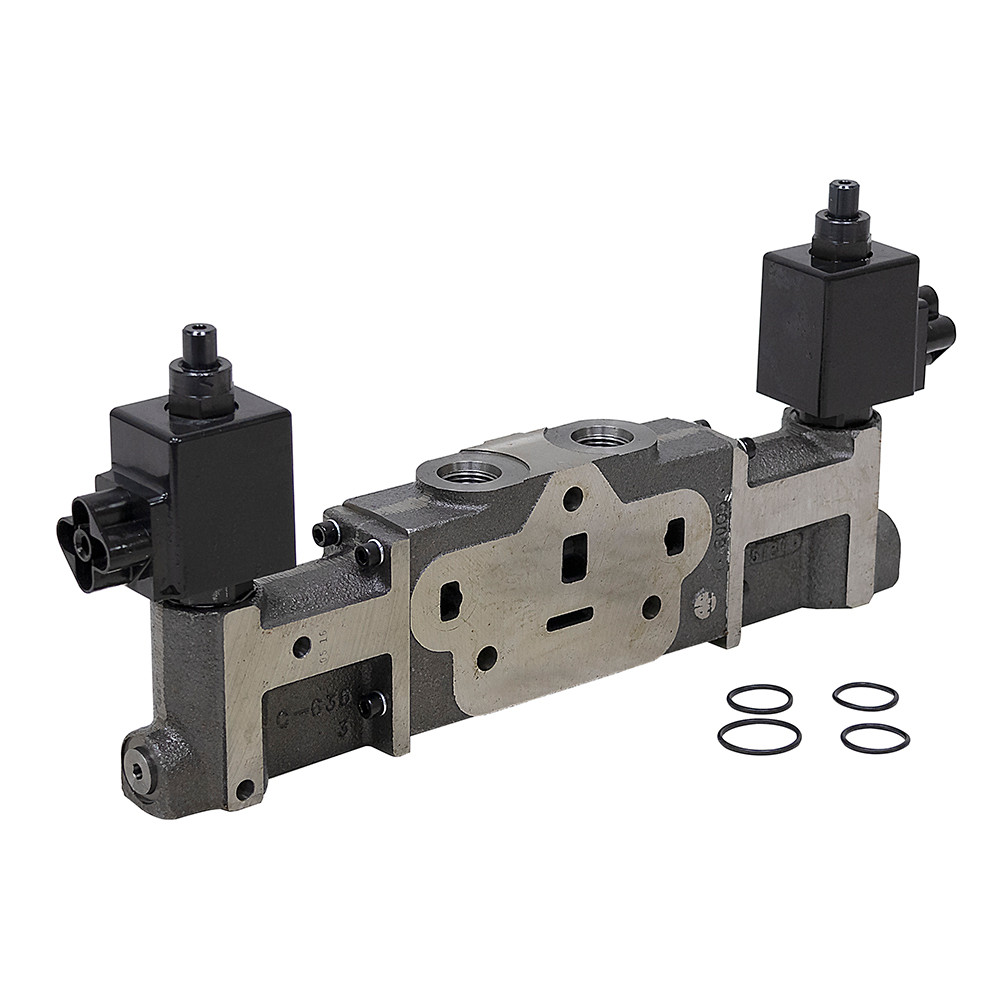

SVW1BA-T24Q Prince SV 24 Volt DC Solenoid Operated Double Acting Work Section [903469]

Product Description

WORK SECTION 24 VOLT DC SOLENOID SV SECTIONAL CONTROL VALVE
Brand new PRINCE 24 volt DC solenoid operated work section for SV sectional control valves. Top  ports. Load checks. Open center and open center power beyond hydraulic systems requires a pressure build up outlet section to supply 150-200 PSI pressure to solenoid valves to actuate spool. Closed center systems do not require pressure build-up outlet section as long as 200 PSI is maintained in the closed center position to actuate spool properly. Can be stacked with manual SV sections. Includes between section o-ring seal kit.

SPECIFICATIONS

• Double Acting
• Model Number SVW1BA-T24Q
• Spool Actuator Voltage  24 Volt DC
• Spool Type 4-Way 3-Position
• Spool Action Spring center
• Flow 12 GPM nominal
• Pressure 3000 PSI max.
• Ports SAE 8
• Size 13-3/4" x 1-1/2" x 5-15/16"
• Shpg. 14 lbs.
