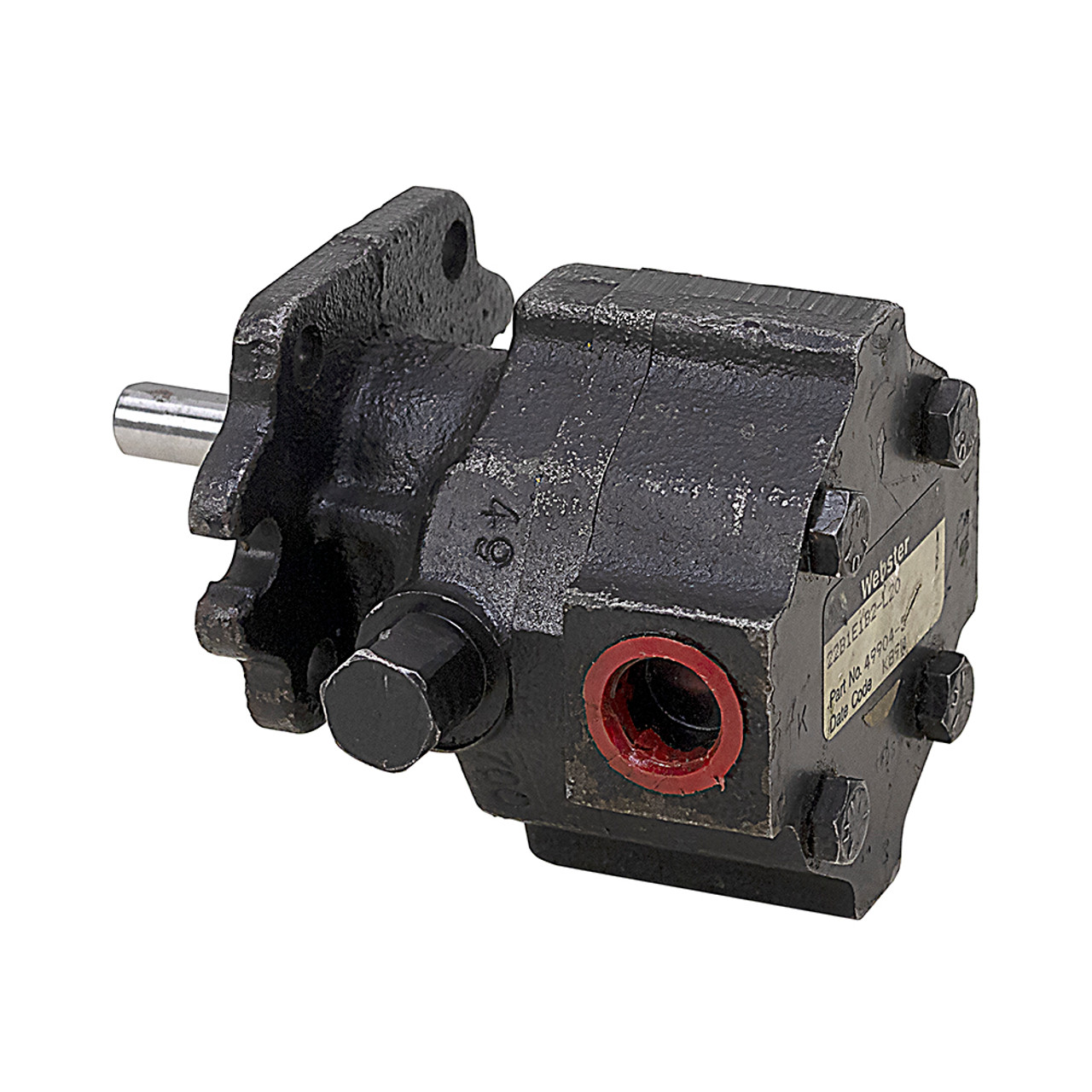

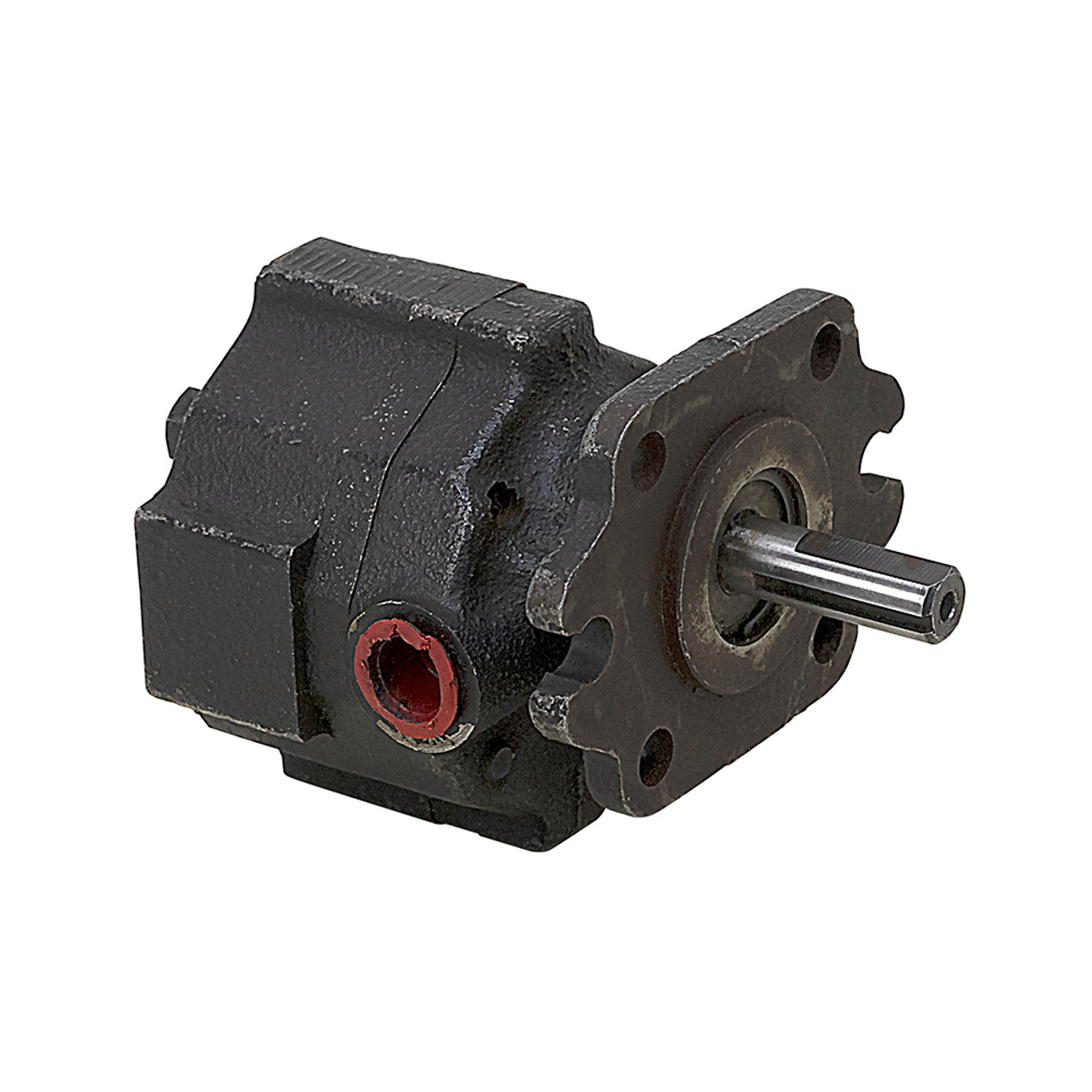

0.22 cu in Webster 22B1E1B2-L20 Hydraulic Pump [904100]

Product Description

• Manufacturer Webster
• Model 22B1E1B2-L20
• Part Number 49904-5
• Disp. 0.22 cu. in. / rev.
• Pump Type Gear
• Rotation CCW
• Pressure:
     100 PSI min.
     2500 PSI max.
• Speed:
     1000 RPM min.
     3500 RPM max.
• Flow:
     1.5 GPM @ 1000 RPM
     5.3 GPM @ 3500 RPM
• Mount Four 0.37" holes on 2" x 2" centers
• Shaft 1/2" dia. x 1-3/8" w/ 1/8" keyway
• Inlet Port 1/2" NPT
• Outlet Port 3/8" NPT
• Size 5-1/4" x 4-1/2" x 3-3/4"
• Shpg. 8 lbs.
