Product Description

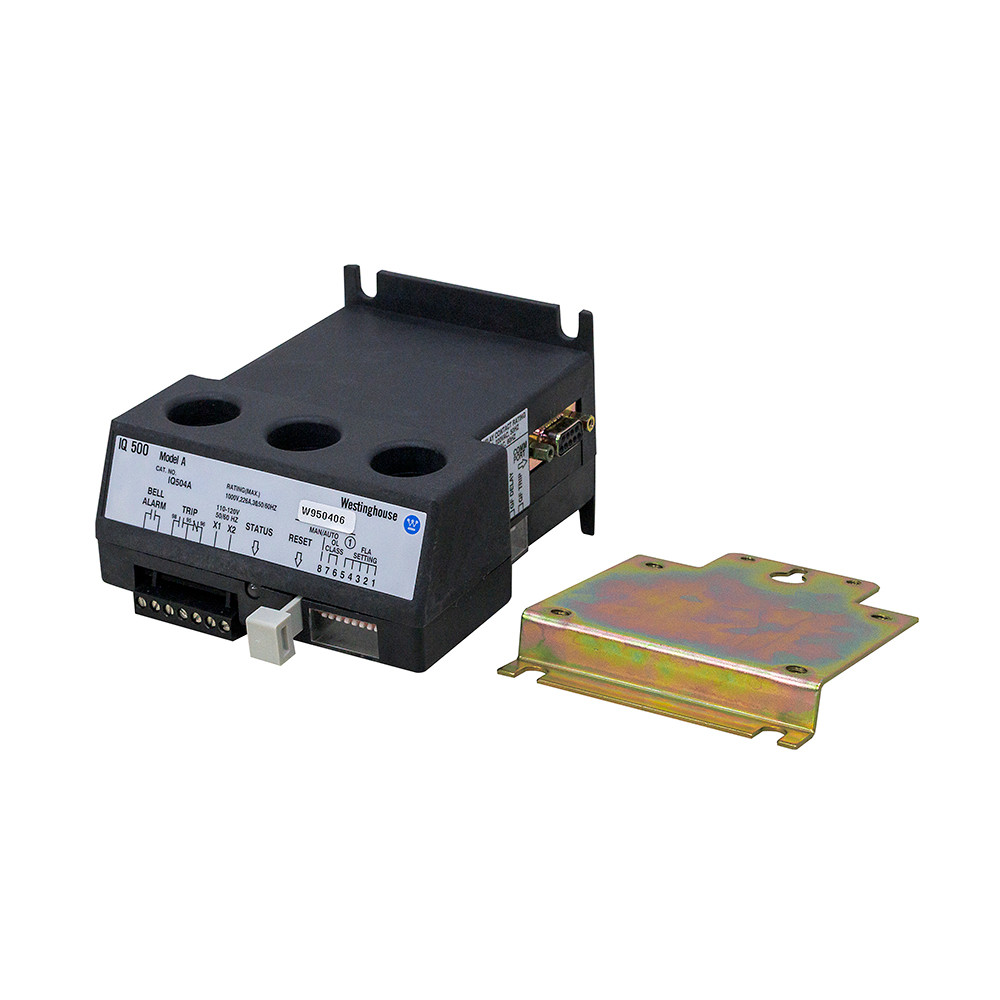

CURRET SENSING PROTECTIVE RELAYNew, Westinghouse & Cutler-Hammer IQ504A motor protection relay. Designed to provide protective functions of overload (overcurrent), phase unbalance, single phasing and ground fault. Mounting bracket and instructions included.
SPECIFICATIONS
- Brand Westinghouse & Cutler-Hammer
- Model IQ504A
- Control Characteristics 110-120V, 50/60Hz
- Amperage Rating 226 Amps
- Relay Contact Rating
220 Volt AC, 50 Hz
220-240 Volt AC, 60 Hz - Size 5-1/2" x 4-1/2" x 3"
- Shpg 3 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 11-2832
Wiring Diagram w11-2832.pdf
