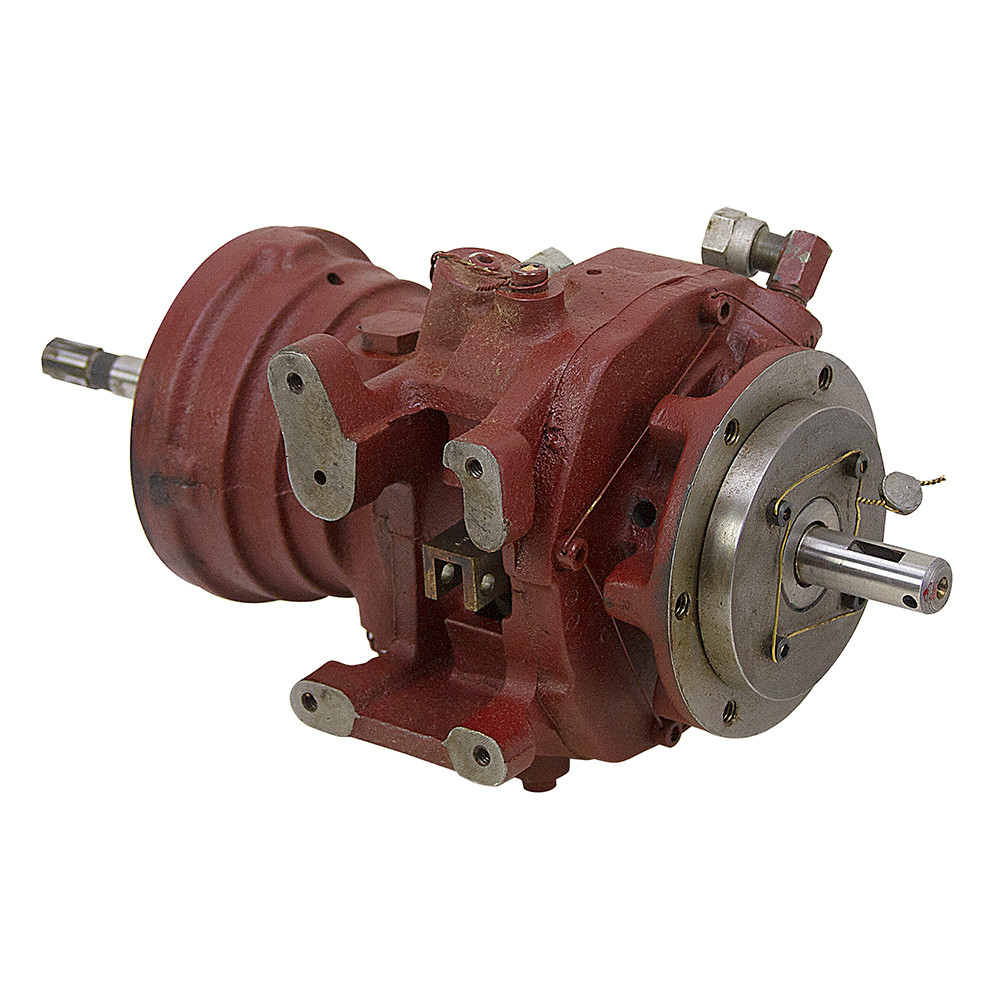

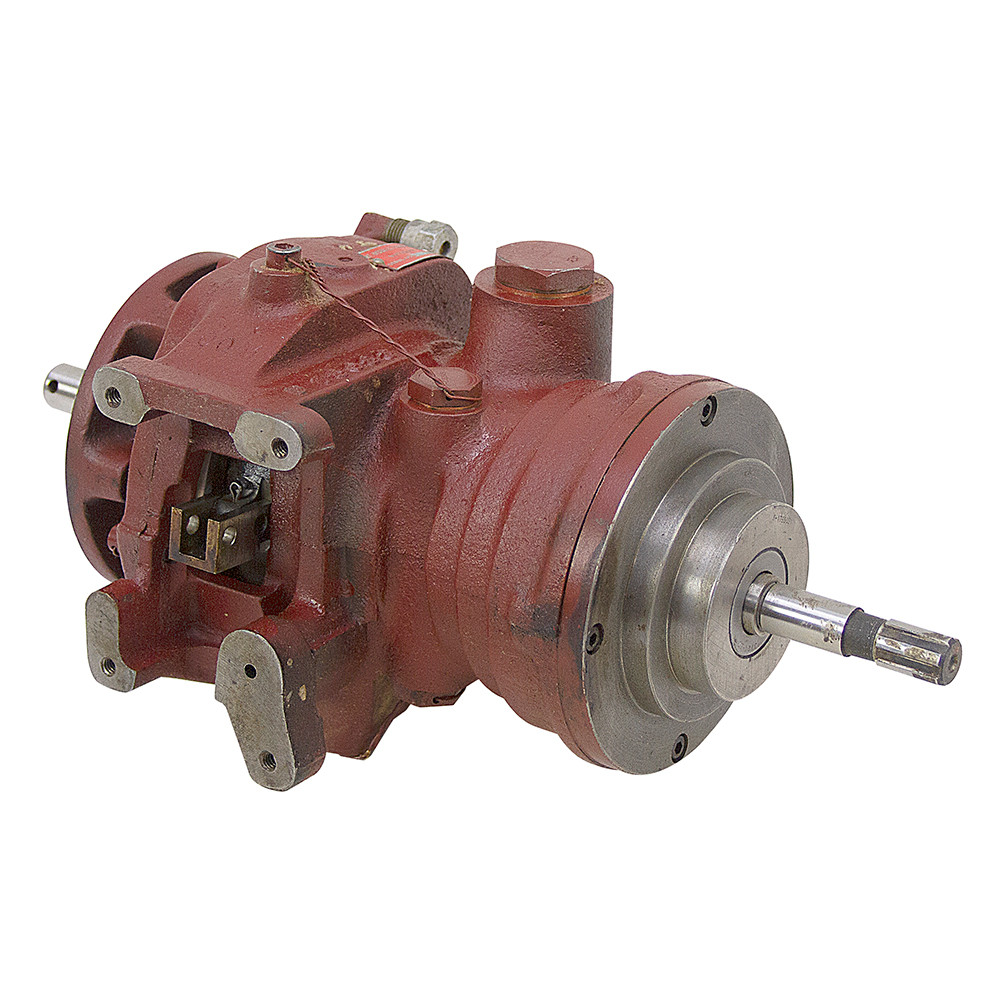

Williams Oil-O-Matic 6575082 Hydraulic Transmission [900408]

Product Description

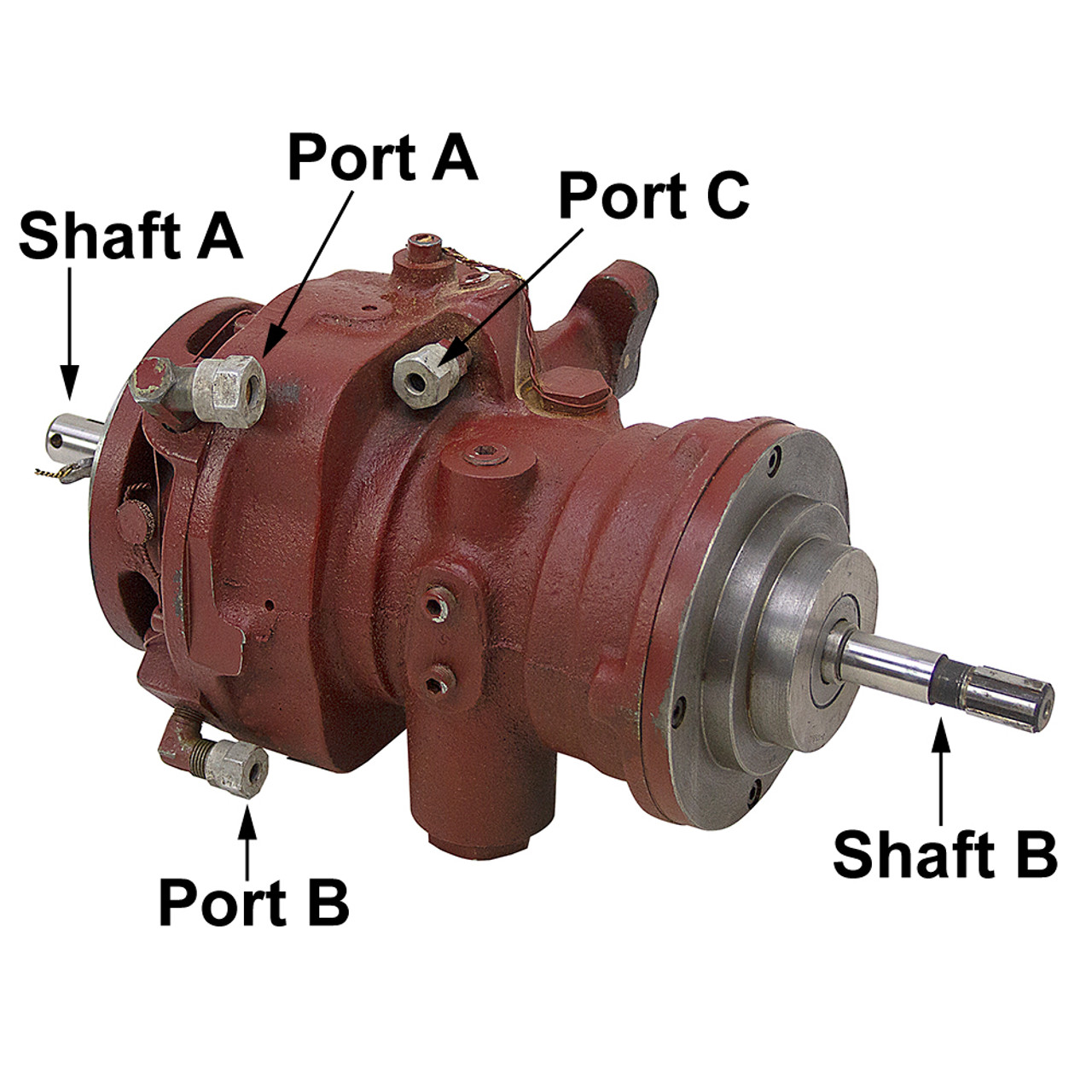

• Port A 1/4" NPT w/ unknown compression fitting adapter
• Port B 1/8" NPT w/ unknown compression fitting adapter
• Port C 1/8" NPT w/ unknown compression fitting adapter
• Shaft A 11/16" dia. x 1-3/4" w/ 3/16" woodruff keyway
• Shaft A Mount Six 5/16"-18 tapped holes on 4" BC w/ 3-9/16" pilot
• Shaft B 5/8" dia. six tooth splined x 7/8" and 2-1/2" overall length
• Shaft B Mount 3-11/32" dia. stepped down to 2-1/2" dia. pilot
• Base Mount Four 1/4"-20 tapped holes on 2-9/16" x 3-5/8" to 4-1/8" centers
• Size 13-7/8" x 6-3/4" x 6-5/8"
• Shpg 38 lb.
