Product Description

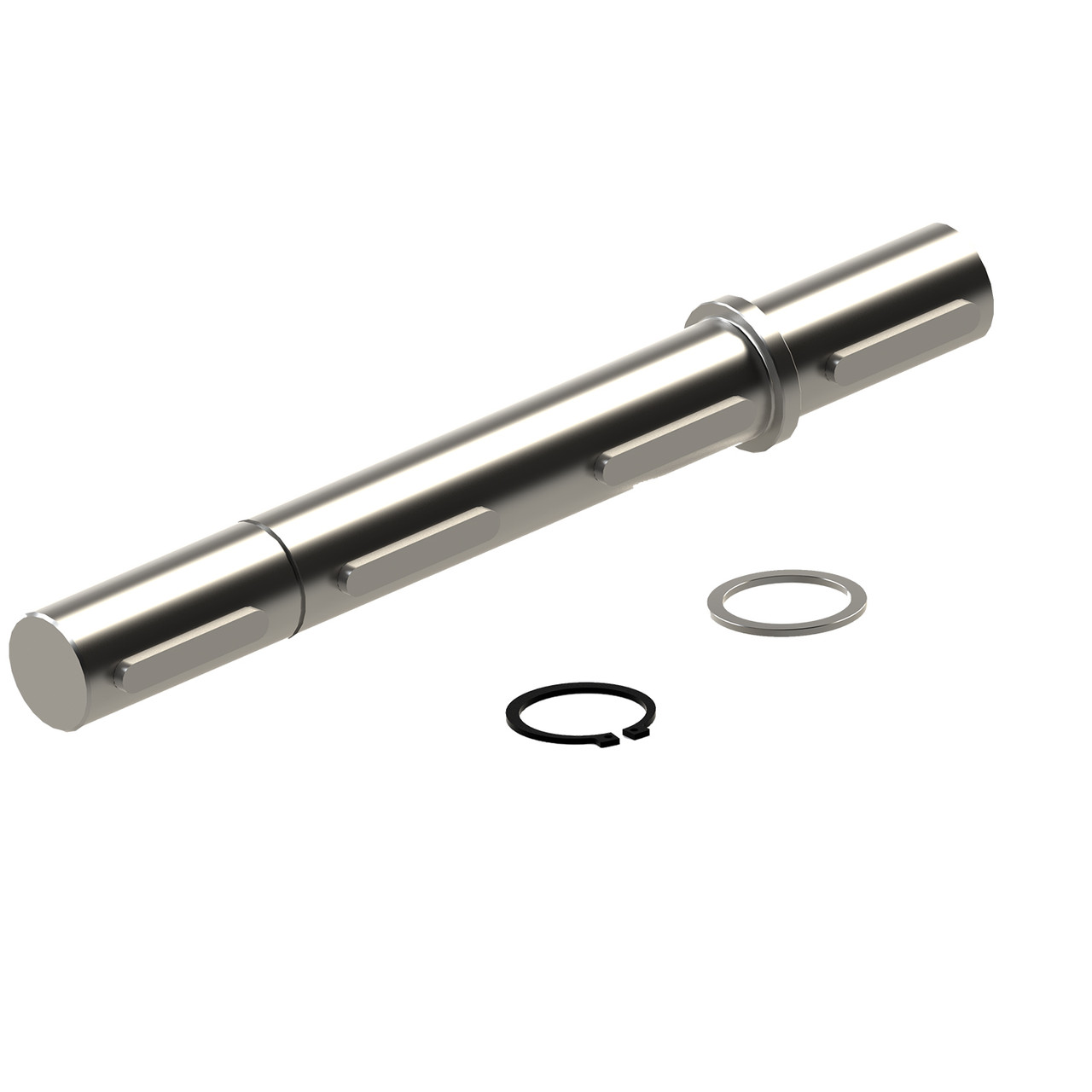

2" Double Shaft Kit for Size 77 KHN Helical Bevel Reducer WWE KHN77-OPS-DS
Brand new, World Wide Electric double output shaft kit to be used with WWE KHN Box Size 77 helical bevel gear reducer. Kit includes shaft, keys, retaining ring and C-clip.
SPECIFICATIONS
- Manufacturer World Wide Electric
- Model Number KHN77-OPS-DS
- Box Size 77
- Shaft Diameter 2"
- Overall Length 16.778"
- Usable Shaft Length 3.94"
- Shpg. 17 lbs.
| 122.94:1 Size 77 3.42 HP Helical Bevel Gear Reducer Worldwide KHN77-120/1-H-143TC | 603432 |
| 100.66:1 Size 77 4.18 HP Helical Bevel Gear Reducer Worldwide KHN77-100/1-H-145TC | 603430 |
| 100.66:1 Size 77 4.18 HP Helical Bevel Gear Reducer Worldwide KHN77-100/1-H-182TC | 603431 |
| 78.07:1 Size 77 5.38 HP Helical Bevel Gear Reducer Worldwide KHN77-80/1-H-145TC | 603428 |
| 78.07:1 Size 77 5.38 HP Helical Bevel Gear Reducer Worldwide KHN77-80/1-H-182TC | 603429 |
| 64.06:1 Size 77 6.56 HP Helical Bevel Gear Reducer Worldwide KHN77-65/1-H-182/184TC | 603427 |
| 57.05:1 Size 77 7.16 HP Helical Bevel Gear Reducer Worldwide KHN77-60/1-H-182/184TC | 603426 |
| 51.18:1 Size 77 7.72 HP Helical Bevel Gear Reducer Worldwide KHN77-50/1-H-184TC | 603425 |
| 39.76:1 Size 77 9.21 HP Helical Bevel Gear Reducer Worldwide KHN77-40/1-H-184TC | 603423 |
| 39.76:1 Size 77 9.21 HP Helical Bevel Gear Reducer Worldwide KHN77-40/1-H-213TC | 603424 |
| 30.48:1 Size 77 10.97 HP Helical Bevel Gear Reducer Worldwide KHN77-30/1-H-184TC | 603421 |
| 30.48:1 Size 77 10.97 HP Helical Bevel Gear Reducer Worldwide KHN77-30/1-H-213/215TC | 603422 |
| 20.24:1 Size 77 14.78 HP Helical Bevel Gear Reducer Worldwide KHN77-20/1-H-184TC | 603419 |
| 20.24:1 Size 77 14.78 HP Helical Bevel Gear Reducer Worldwide KHN77-20/1-H-213/215TC | 603420 |
| 15.73:1 Size 77 17.64 HP Helical Bevel Gear Reducer Worldwide KHN77-15/1-H-184TC | 603417 |
| 15.73:1 Size 77 17.64 HP Helical Bevel Gear Reducer Worldwide KHN77-15/1-H-213/215TC | 603418 |
| 9.96:1 Size 77 24.02 HP Helical Bevel Gear Reducer Worldwide KHN77-10/1-H-184TC | 603415 |
| 9.96:1 Size 77 24.02 HP Helical Bevel Gear Reducer Worldwide KHN77-10/1-H-213/215TC | 603416 |
| 8.4:1 Size 77 27.05 HP Helical Bevel Gear Reducer Worldwide KHN77-7.5/1-H-184TC | 603413 |
| 8.4:1 Size 77 27.05 HP Helical Bevel Gear Reducer Worldwide KHN77-7.5/1-H-213/215TC | 603414 |
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 13-1615-77-DS
Instructions i13-1615-77-DS.pdf
Badges drop-ship
Frame 77
Dimensional Diagram dr13-1615-77-DS.pdf
