Product Description
1" KEYED INPUT/OUTPUT OVERHUNG LOAD ADAPTERBrand new, ZEROMAX model 210 overhung load adapter. Cast iron construction with ball bearings. Prevents wear on motor/pump components due to external overhung loads (axial and radial), provides solid mounting. Isolates from contamination in harsh environments. Allows removal of motor/pump while leaving load attached to shaft. Grease zerk for bearings.
SPECIFICATIONS
- Input Shaft 1" dia. female socket w/ 1/4" keyway
- Input Mount SAE A 2 bolt
- Output Shaft 1" dia. x 2-3/4" w/1/4" keyway
- Base Mount Four 3/8-16 tapped holes, 2-5/16" x 1-3/4"
- Maximum Speed 4400 RPM
- Size 5-1/2" x 2-3/4" x 4-1/8"
- Shpg. 11lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 13-1562-A
PDF Page Catalog298-45.pdf
Badges made-in-usa,regular-stock
![Zero-Max Model 210 Overhung Load Adapter for 1 Keyed Shaft Input SAE A 2 bolt mount [603002]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8059/104349/13-1562-A__95488.1762807247.jpg?c=1 "Zero-Max Model 210 Overhung Load Adapter for 1 Keyed Shaft Input SAE A 2 bolt mount [603002]")
![Zero-Max 210-10 Overhung Load Adapter for 5/8 Keyed Shaft Input SAE A 2 bolt mount [603003]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8078/104352/13-1562-B__02343.1762807248.jpg?c=1 "Zero-Max 210-10 Overhung Load Adapter for 5/8 Keyed Shaft Input SAE A 2 bolt mount [603003]")
![Zero-Max 210-10 Overhung Load Adapter for 5/8 Keyed Shaft Input SAE A 2 bolt mount [603003]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8078/104353/13-1562-B_1__97559.1762807248.jpg?c=1 "Zero-Max 210-10 Overhung Load Adapter for 5/8 Keyed Shaft Input SAE A 2 bolt mount [603003]")

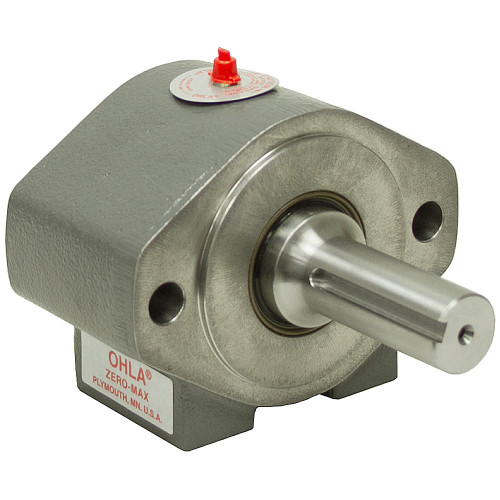

![Zero-Max 210-12 Overhung Load Adapter for 3/4 Keyed Shaft Input SAE A 2 bolt mount [603004]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8103/104355/13-1562-C__26354.1762807249.jpg?c=1 "Zero-Max 210-12 Overhung Load Adapter for 3/4 Keyed Shaft Input SAE A 2 bolt mount [603004]")
![Zero-Max 210-12 Overhung Load Adapter for 3/4 Keyed Shaft Input SAE A 2 bolt mount [603004]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8103/104356/13-1562-C_1__12410.1762807249.jpg?c=1 "Zero-Max 210-12 Overhung Load Adapter for 3/4 Keyed Shaft Input SAE A 2 bolt mount [603004]")
![Zero-Max 615-14 Overhung Load Adapter for 7/8 Keyed Shaft Input SAE B 2 or 4 bolt mount [603006]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8151/104361/13-1563-B__32063.1762807250.jpg?c=1 "Zero-Max 615-14 Overhung Load Adapter for 7/8 Keyed Shaft Input SAE B 2 or 4 bolt mount [603006]")
![Zero-Max 615-14 Overhung Load Adapter for 7/8 Keyed Shaft Input SAE B 2 or 4 bolt mount [603006]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8151/104362/13-1563-B_1__74959.1762807250.jpg?c=1 "Zero-Max 615-14 Overhung Load Adapter for 7/8 Keyed Shaft Input SAE B 2 or 4 bolt mount [603006]")
![Zero-Max 410 Model Overhung Load Adapter for 1 Keyed Shaft Input 3.25" bolt circle 4 bolt mount [603001]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8039/104346/13-1561__08527.1762807247.jpg?c=1 "Zero-Max 410 Model Overhung Load Adapter for 1 Keyed Shaft Input 3.25\" bolt circle 4 bolt mount [603001]")
![Zero-Max 410 Model Overhung Load Adapter for 1 Keyed Shaft Input 3.25" bolt circle 4 bolt mount [603001]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8039/104347/13-1561_1__50092.1762807247.jpg?c=1 "Zero-Max 410 Model Overhung Load Adapter for 1 Keyed Shaft Input 3.25\" bolt circle 4 bolt mount [603001]")

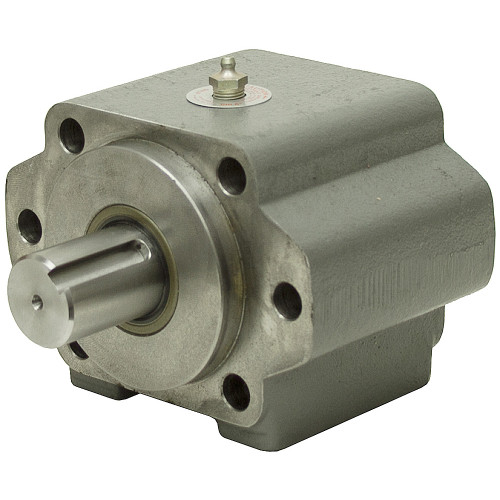

![Zero-Max 615-13S Overhung Load Adapter for 7/8-13 Tooth Shaft Input SAE B 2 or 4 bolt mount [603005]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/8129/104358/13-1563-A__17192.1762807249.jpg?c=1 "Zero-Max 615-13S Overhung Load Adapter for 7/8-13 Tooth Shaft Input SAE B 2 or 4 bolt mount [603005]")
