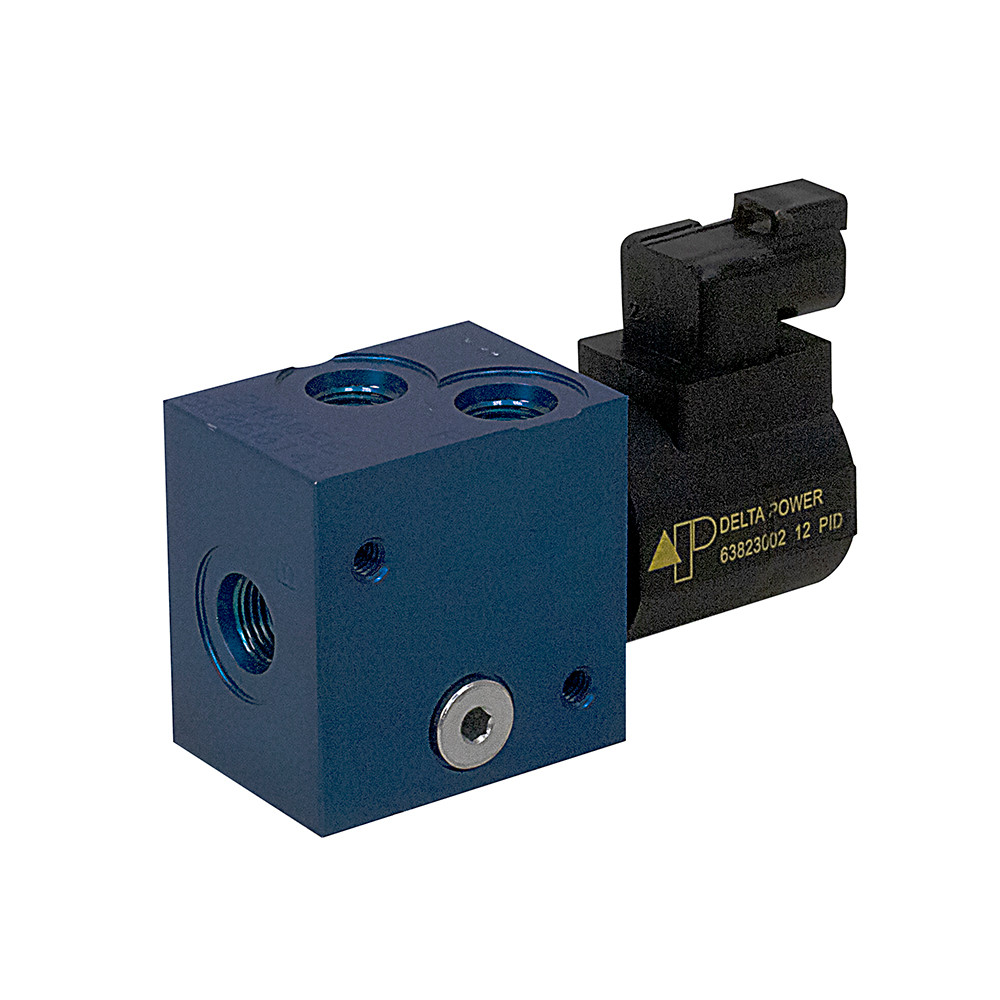

12 Volt DC Solenoid Valve Delta Power DF-S3A [906617]

Product Description

12 VOLT DC SOLENOID DIRECTIONAL VALVE
New, Delta Power DF-S3A solenoid operated, 3 way 2 position, spool valve with 63823002 12 PID solenoid and 240056 block. When de-energized the DF-S3A allows flow from (3) to (2) and blocks flow at port (1). When energized the valve allows flow from (1) to (3) and blocks flow at port (2). Not intended for load holding applications.

SPECIFICATIONS

• Brand Delta Power
• Coil Model Number 63823002 12 PID
• Cartridge Model Number DF-S3A
• Body Model Number 240056
• Voltage 12 Volt DC
• Coil Connection Deutsch - Integral DT04-2P
• Flow 10 GPM
• Pressure 3000 psi
• Ports SAE 6
• Mount Two 1/4"-20 threaded holes and Two 5/16"-18 threaded holes
• Size 4-3/8" x 2-7/8" x 1-5/8"
• Shpg 2 lbs.
