Product Description

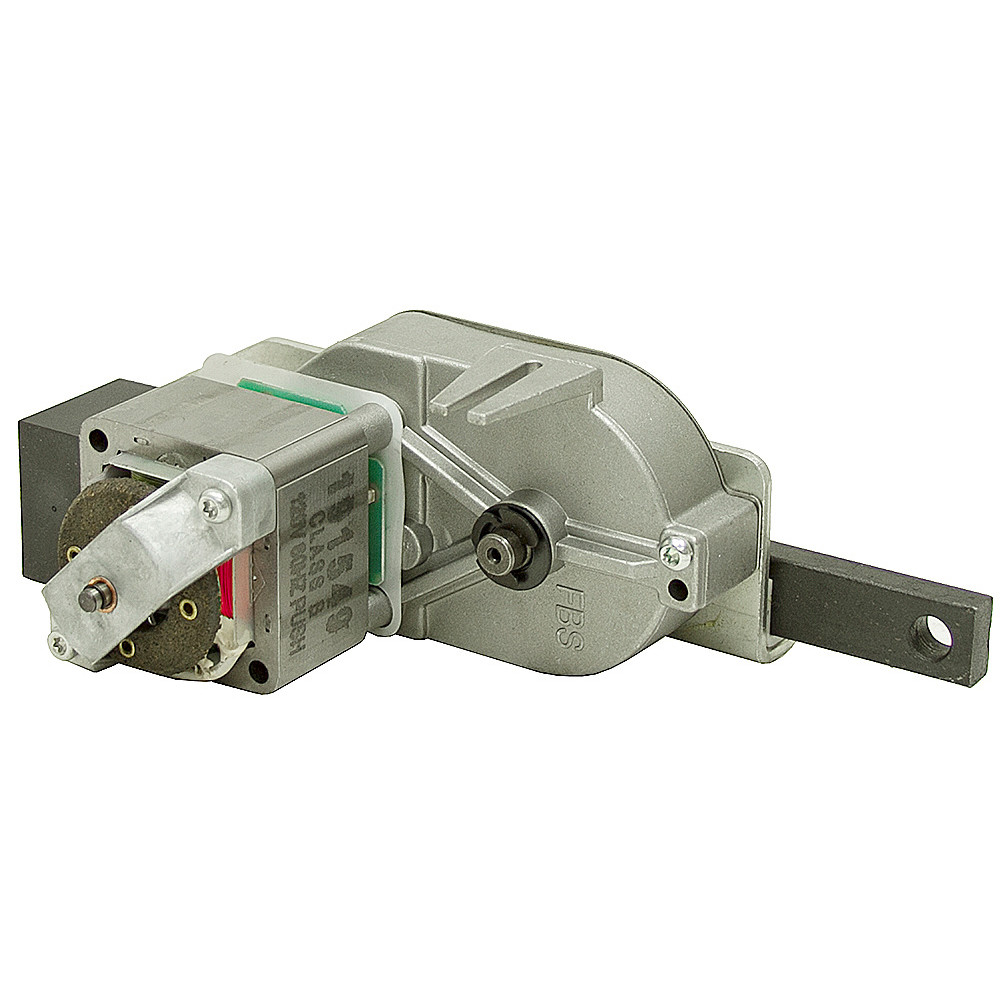

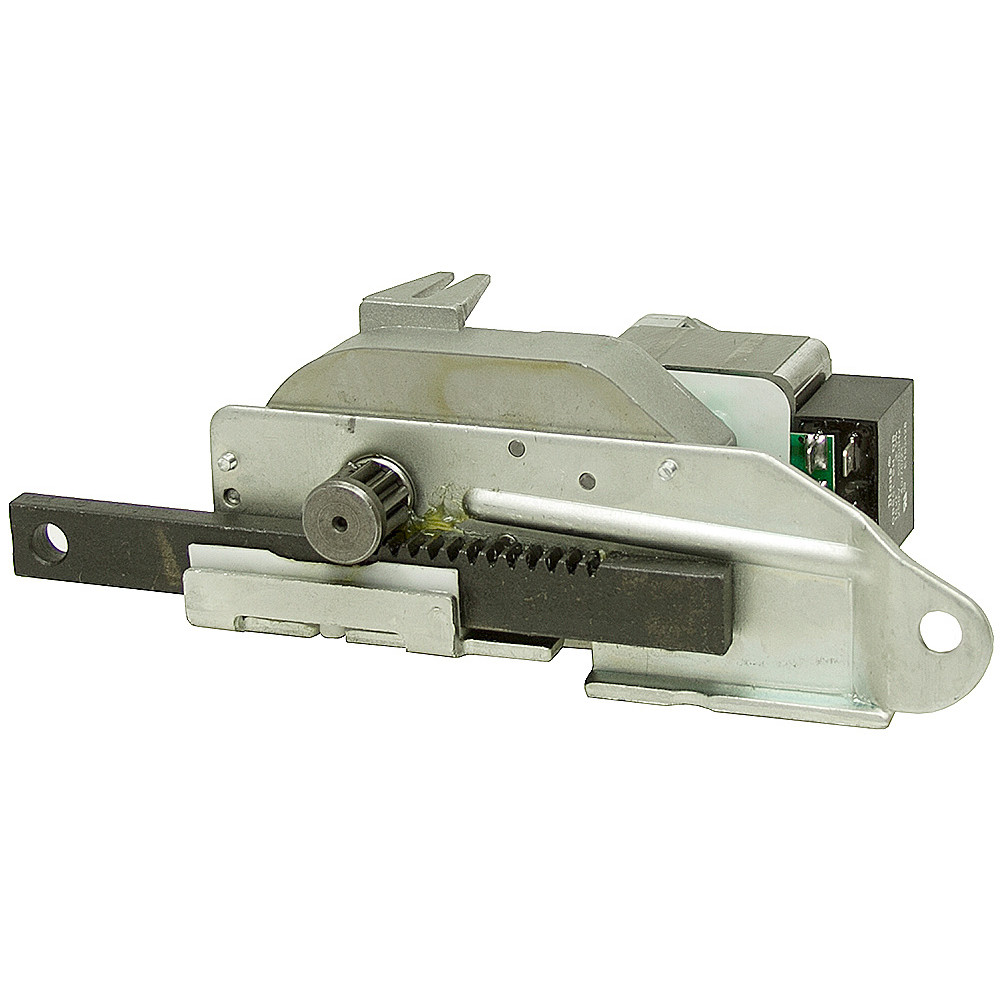

1-1/2" STROKE 120 VAC LINEAR ACTUATORNew, Icon Health and Fitness model# 6197V 191549 rack and pinion-style linear actuator. Thermal overload protection. Shaded pole motor with open construction. Stroke is 1-1/2" to prevent locking up of pinion.
SPECIFICATIONS
- Voltage 120 VAC
- Phase 1
- Amperage 1.2 Amps
- Speed 3.20 RPM
- Output 2-1/2" Long, 13 Tooth Rack and 0.765" O.D., 10 Tooth Pinion Gear
- Stroke 1-1/2"
- Limit Switches No Limit Switches
- Direction Reversible
- Duty Intermittent
- Retracted length 8-5/8"
- Pin Holes 3/8"
- Size 9-3/8" x 5" x 3-1/4"
- Shpg. 6 lb.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1848
PDF Page Catalog298-146.pdf
Wiring Diagram w5-1848.pdf
Badges surplus-item,last-one
Stroke Up to 3.99''
Voltage 120 Volt AC
