Product Description

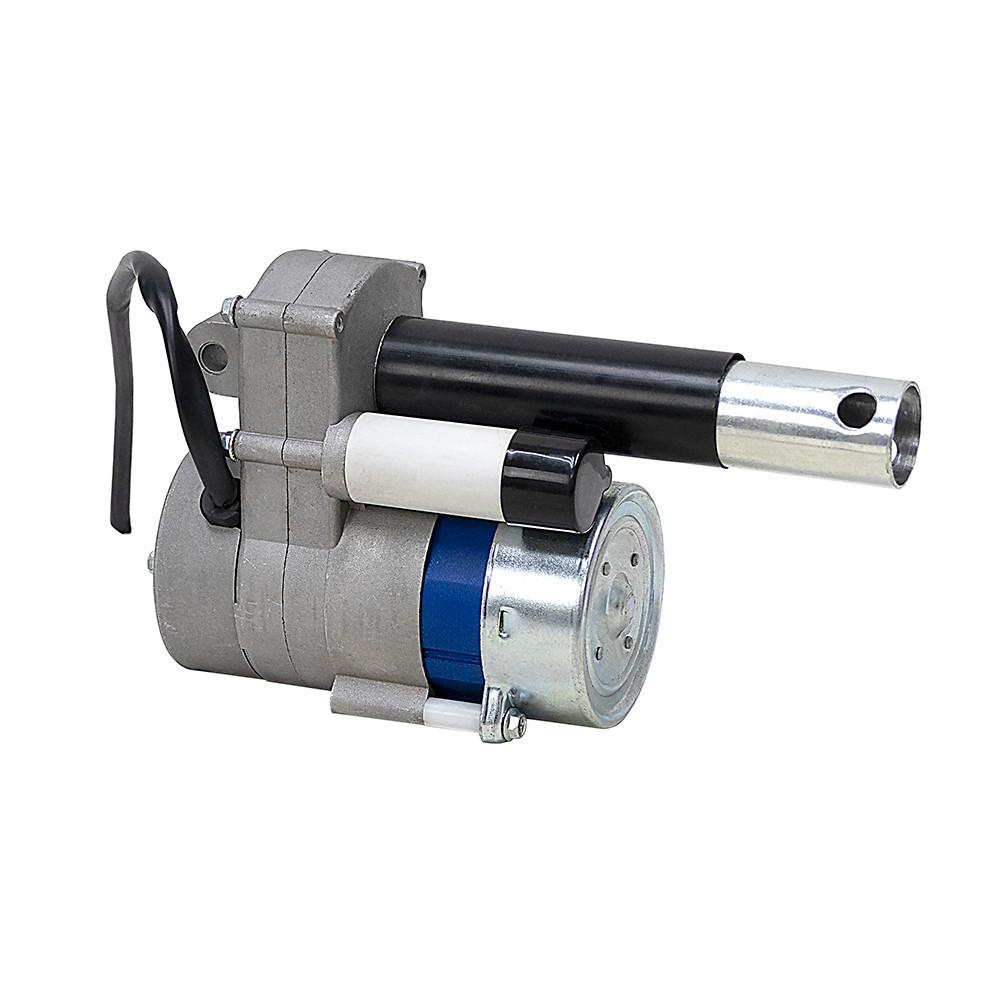

450 LBS 115 VOLT AC LINEAR ACTUATORNew, Giga CS1-9309 linear actuator. Limit switches at the end of extension and retraction.
SPECIFICATIONS
- Brand Giga
- Model Number CS1-9309
- Stroke 1-7/8"
- Voltage 115 Volt AC
- Amperage 1.5 Amps
- Push/Pull Rating 450 lbs
- RPM Unknown
- Direction Reversible
- Duty Intermittent (1 min ON, 5 Min Off)
- Retracted Length 9"
- Rod end pin hole 1/2" dia.
- Base pin hole 3/8" dia.
- Size 10" x 5-7/8" x 3-1/2"
- Shpg. 8 lbs.
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 5-1937
Badges surplus-item,last-one
Load Rating 200 to 499 lbs.
Stroke 1.88
Voltage 115 Volt AC
PDF Page Catalog 299-146.pdf
