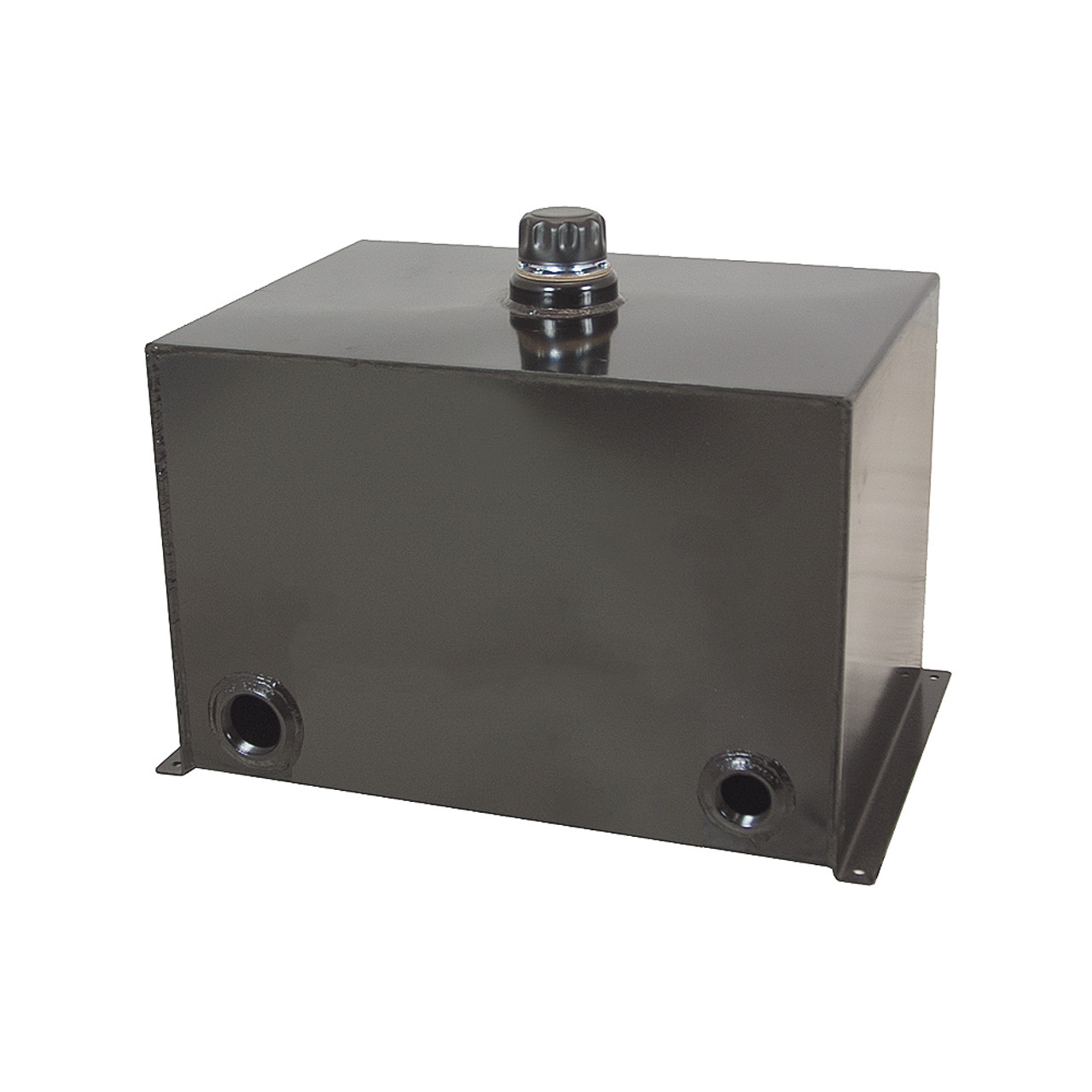

15 Gallon Hydraulic Reservoir/Tank

Product Description

15 GALLON HYDRAULIC RESERVOIR
Brand new, superior quality hydraulic reservoir. Constructed of 12 gauge, black powder-coated steel. Internal baffle slows oil to allow proper cooling. Filler/breather has 10 micron foam filter, mesh basket.  Integral mounting foot on each end. Drain port sealed with removable steel plug. Select a reservoir with capacity at least equal to pump flow GPM (e.g. 15 gallon reservoir capacity minimum for system with 15 GPM pump). Made in USA.

Vibration isolation mounts recommended for mobile applications. Damage from non-isolated mounts or improper installation voids warranty.

SPECIFICATIONS

• Oil Capacity 15 gallons
• Ports:
     2" NPT x one
     1-1/2" NPT x one
     3/4" NPT x one
• Mount 4 bolts 24-3/8" x 13-1/2" C/C
• Mounting Holes 3/8" dia.
• Tank Size W/O Feet Or Filler
     23-1/4" x 15" x 12-5/8"
• Tank Height To Filler Cap Top 15-5/8"
• Foot-Print 25-3/4" x 15"
• Shpg. 59 lbs.
