  • 6.679(170mm)x29.921(760mm)x3.151(80mm) Double Acting Hydraulic Cylinder 03320204R [905900]
  • 6.679(170mm)x29.921(760mm)x3.151(80mm) Double Acting Hydraulic Cylinder 03320204R [905900]
  • 6.679(170mm)x29.921(760mm)x3.151(80mm) Double Acting Hydraulic Cylinder 03320204R [905900]
  • 6.679(170mm)x29.921(760mm)x3.151(80mm) Double Acting Hydraulic Cylinder 03320204R [905900]

    • 6.679(170mm)x29.921(760mm)x3.151(80mm) Double Acting Hydraulic Cylinder 03320204R [905900]

    Item Number: 905900

    Legacy Part Number: 9-20911

    (No reviews yet) Write a Review

    In Stock

    Surplus Item
    $479.95
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Product Description

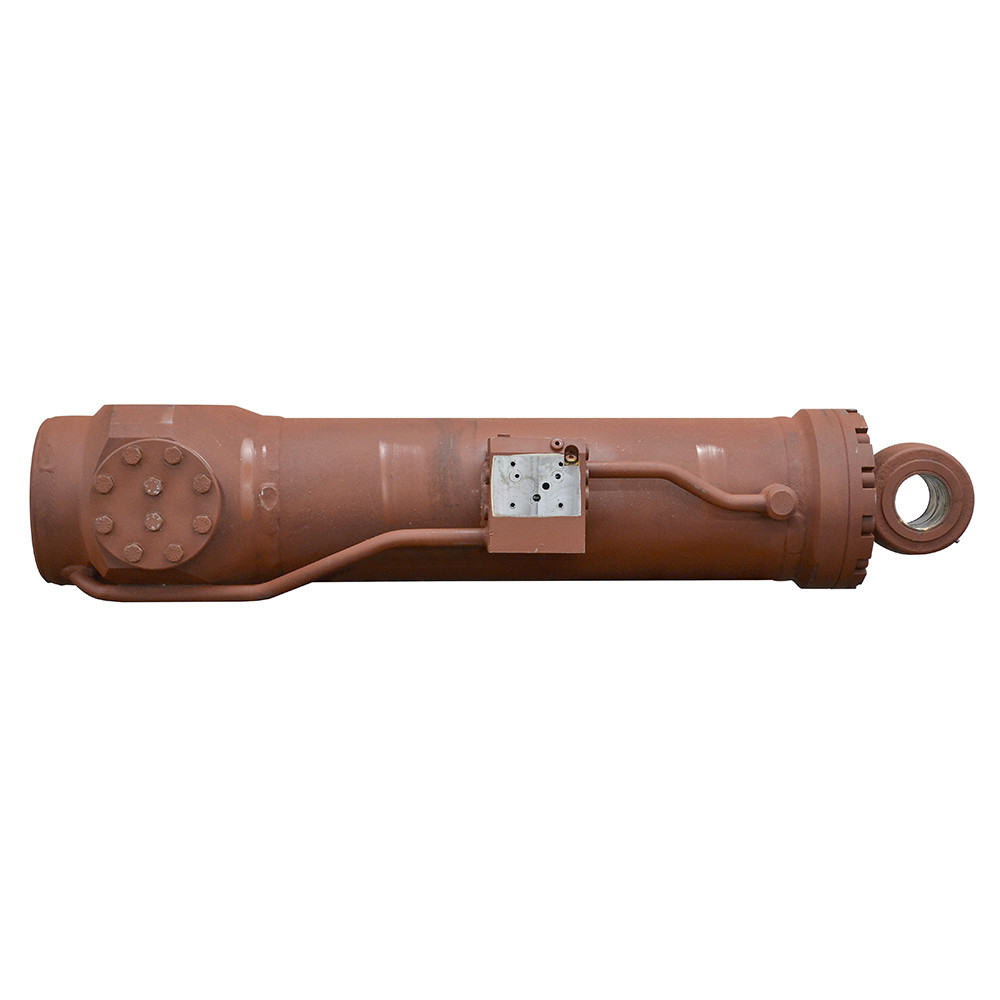

    6.679"(170mm) x 29.921"(760mm) x 3.151"(80mm) HYD CYL
    Unused old inventory. Welded, double acting hydraulic cylinder, model# 03320204R. Cylinder has two cartridge valves in manifold, one marked 1-Y05 1820, the other unknown. Bolt-on Trunnion plate has two, M12-1.75 threaded holes on 1.625" centers in center of plate used for disassembly.

    SPECIFICATIONS
    • Double Acting
    • Bore x Stroke 6.679"(170mm) x 29.921"(760mm)
    • Gland Retainer Bolt-on
    • Pressure 2500 PSI max.
    • Rod Dia. 3.151"(80mm)
    • Manifold Ports Two, 0.344" dia., One, 0.244" dia., and One 0.18" dia. port holes
    • Manifold mount Four, M6-1.0 x 0.713" on 2.125" x 1.813" centers
    • Retracted Length 35.5"
    • Gland Face to Rod Pin Center 2.875"
    • Shpg. 441 lbs.
    END MOUNTINGS
    • Rod End Tang
    • Width 3.551"
    • Pin-Center-To-Tang-End 2.75"
    • Pin Hole 2.562"(65mm)
    • Rod End Bolt-on Trunnion
    • Pin Outside/Inside Width 10.118" / 9.056"
    • Pin-Center-To-Rod Pin Center 35.5"
    • Pin Center To Base End 6"
    • Pin Diamter 5.503"
    • Bolt-on Plates Eight, M12-1.75 x 0.849" bolt holes on 4.75" bolt circle
    • Bolt-on Plate Dia. 5.909"(150mm)
    • Bolt-on Plate Inside Dia. 3.940"(100mm)

    Product Videos

    Custom Field

    Truck true
    Prop65 true
    Legacy Part Number 9-20911
    Badges surplus-item,last-one
    Base End Trunnion
    Bore Range1 6'' - 6.9''
    Construction Type Welded
    Max PSI Up to 2500 PSI
    Ports Manifold
    Retracted Length 30'' - 35.9''
    Rod Dia 80mm
    Rod End Tang
    Rod End Pin Size 65mm
    Stroke 760mm
    Stroke Range1 24'' - 29.9''
