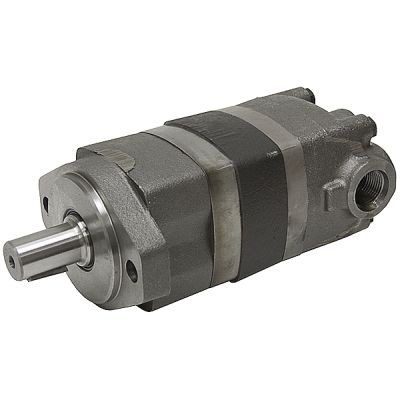

18.7 cu in Char-Lynn 104-1043 Hydraulic Motor [900153]

Product Description

18.7 cu in CHAR-LYNN 104-1043 HYD MOTOR
Brand new CHAR-LYNN 2000 series hydraulic motors. Geroler power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: Dynamic BMS, Danfoss OMS/OMSS, White RE/DH, Parker/Ross MB/TF.

SPECIFICATIONS

• Disp. 18.7 cu. in. / rev.
• Motor Type Geroler
• Pressure:
    3000 PSI cont.
    3750 PSI int.
• Torque:
    6750 in-lbs. cont.
    7820 in-lbs. int.
• Speed:
    246 RPM cont.
    365 RPM int.
• Flow:
    20 GPM cont.
    30 GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1" dia. x 2" keyed
• Ports SAE 12
• Case Drain SAE 4
• Size 8-7/8" x 5-1/8" x 4-1/4"
• Shpg. 31 lbs.
