    Item Number: 904291

    Legacy Part Number: 9-12231-10

    Regular Stock Item
    $226.80
    Adding to cart… category.add_cart_announcement
    Catalog Page This item is on page 57 of our current catalog

    Product Description

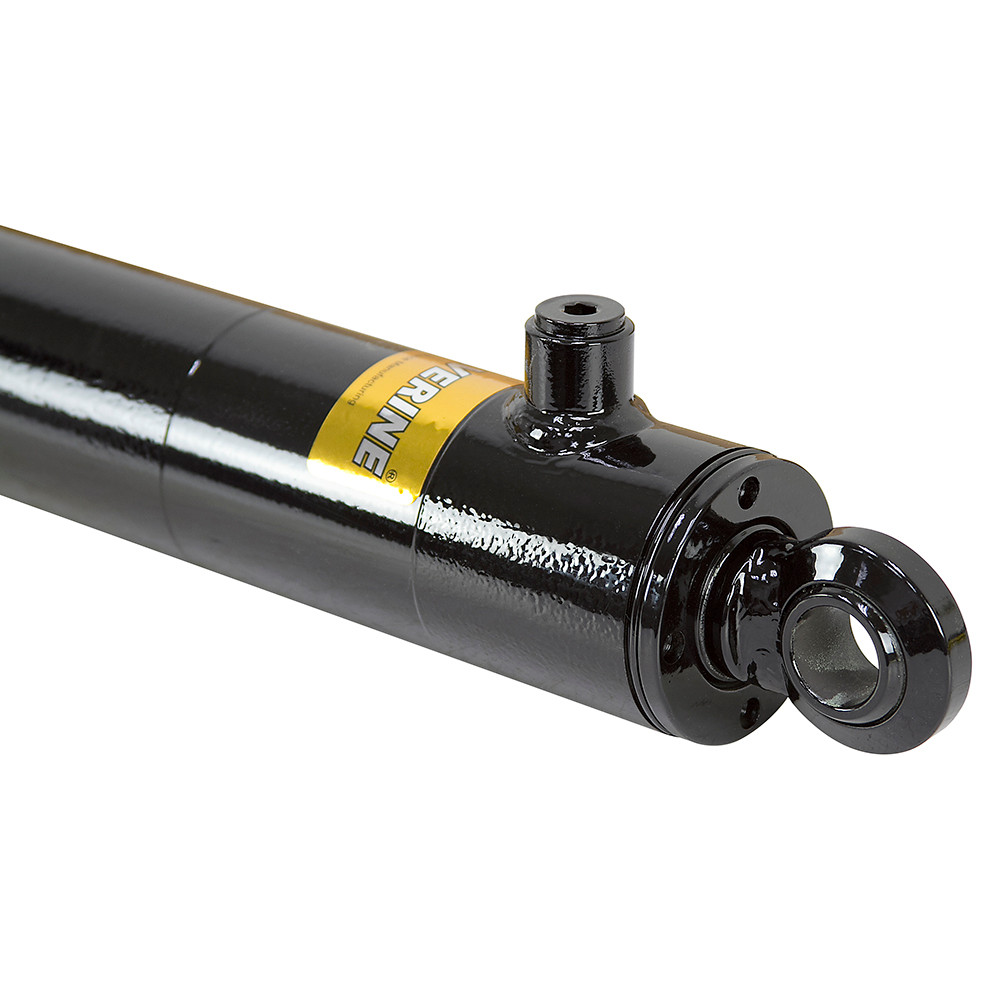

    2.5" x 10" x 1.5" DOUBLE-ACTING HYDRAULIC CYLINDER
    Brand new Wolverine by Prince Mfg double acting cylinder with swivel eyes. Heavy duty welded construction with threaded-in gland design. Top port design with SAE O-ring ports for reliable and leak free connection. Spherical ball end swivel eye mount on both ends to allow for angular misallignment.

    SPECIFICATIONS
    • Brand Wolverine by Prince Mfg
    • Model Number WWSB2510-S
    • Double Acting
    • Bore x Stroke 2.5" x 10"
    • Gland Retainer Threaded in gland
    • Pressure 3000 PSI max.
    • Rod Dia. 1.5"
    • Column Load 3000 PSI max. @ full extension
    • Ports SAE 8
    • Retracted Length 17.5"
    • Shpg. 21 lbs.
    END MOUNTINGS
    • Rod End Swivel Eye
    • Ball Width 0.97"
    • Ball O.D. 2.25"
    • Pin Hole 1"
    • Base End Swivel Eye
    • Ball Width 0.97"
    • Ball O.D. 2.25"
    • Pin Hole 1"

    Product Videos

    Custom Field

    Prop65 true
    Legacy Part Number 9-12231-10
    Badges regular-stock
    Base End Swivel Eye
    Base End Pin Size 1"
    Bore Range1 2" - 2.9"
    Construction Type Welded
    Max PSI Over 2500 PSI
    Ports SAE
    Retracted Length 12" - 17.9"
    Rod Dia 1.5"
    Rod End Swivel Eye
    Rod End Pin Size 1"
    Stroke 10
    Stroke Range1 6" - 11.9"
