Product Description

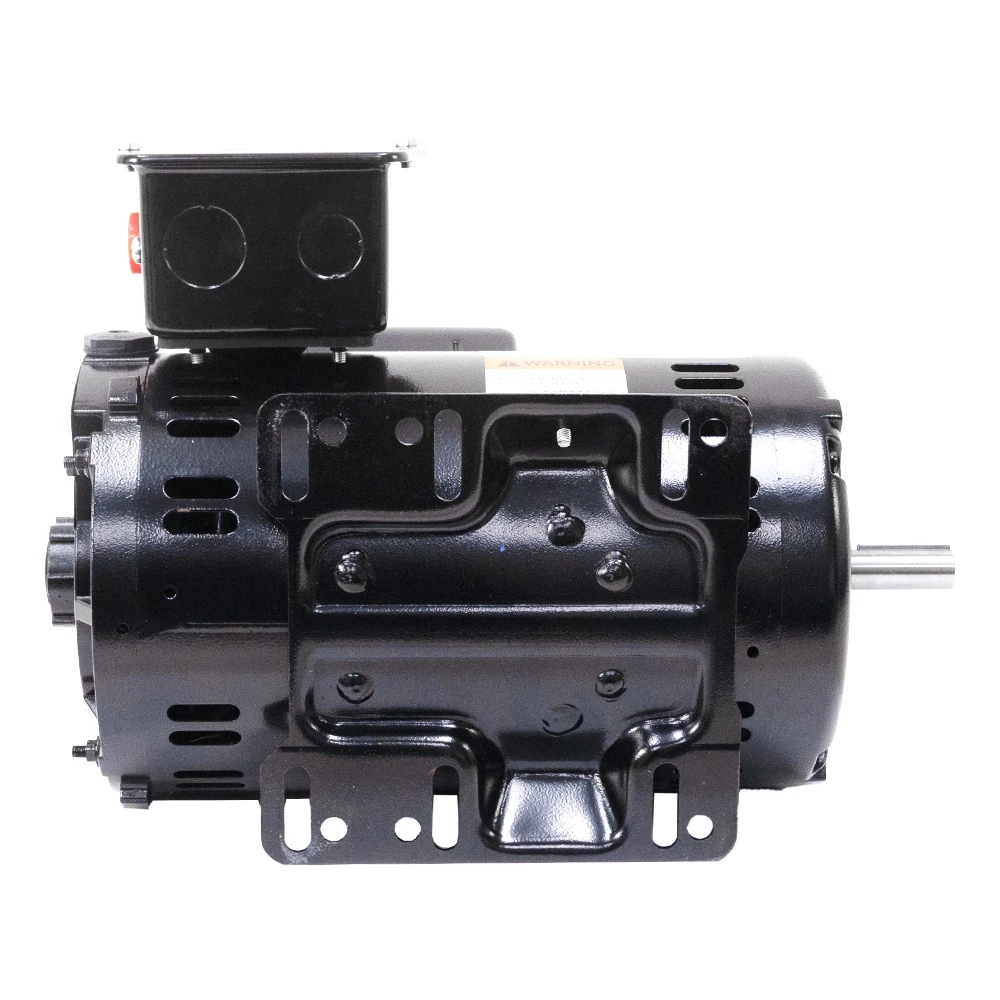

2 HP SPL 115/230 VOLT AC 3600 RPM COMPRESSOR DUTY MOTOR
Brand new, WORLDWIDE CDM2-36-56 electric air compressor motor. Special duty motor designed to replace motors on compressors. High torque design for compressor duty applications. Overload protection with manual reset. Welded base. Capacitor start/ capacitor run.
Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.
SPECIFICATIONS SPECIFICATIONS
- Brand Worldwide
- Model CDM2-36-56
- Power 2 HP
- Voltage 115/230 AC
- Phase 1
- Frequency 60 Hz
- Amperage 16.2/8.1 Amps
- Speed 3600 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Thermal Overload Protection Manual
- Enclosure ODP
- Duty Continuous
- Frame 56
- Base Mount Four 1-1/4" x 11/32" elliptical slots on 4-7/8" x 5" centers
- Shaft 5/8" dia. x 1-7/8" overall length w/ 3/16" wide x 1.41" long keyway
- Size 12.7" x 11.42" x 8.3"
- Shpg. 43 lbs.
