23.1:1 Size 37 2.2 HP Helical Bevel Gear Reducer Worldwide KHN37-25/1-H-143/145TC [603361]

Product Description

23.1:1 Size 37 2.2 HP Helical Bevel Gear Reducer WWE KHN37-25/1-H-143/5TC

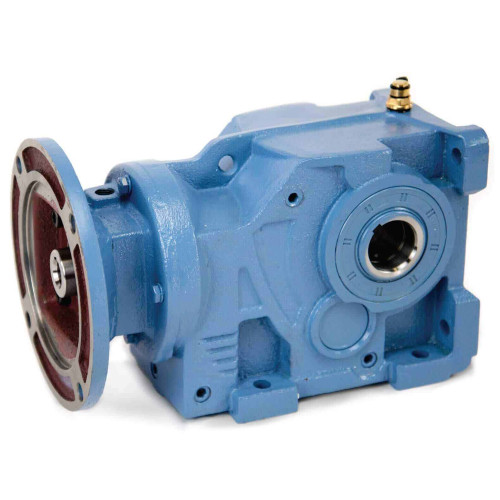

Brand new, World Wide Electric helical bevel gear reducer. Cast iron housing. Gearbox flanges are designed to accept NEMA C-Face electric motors. Foot mounts for horizontal or vertical mounting, hollow output bore. Ball bearings on the input and output shafts and precision ground gears for better rotation and quieter operation. Pre-filled with HD320 mineral oil. Single shaft and double shaft output kits available (sold separately).

SPECIFICATIONS

• Manufacturer World Wide Electric
• Model Number KHN37-25/1-H-143/5TC
• Box Size 37
• Gear Stages 3
• Nominal Ratio 25:1
• Actual Ratio 23.1:1
• Output RPM @ 1750 RPM Input 76 RPM
• Input HP 2.2 HP max.
• Output Torque 1659 in.-lbs. max.
• Over-Hung Load 505 lbs. max.
• Motor Mount 143/5TC
• Output Bore 1-1/4" Hollow Keyed, 1/4" Keyway
• Horizontal Foot Mount Four 0.433" holes on 4.331" x 3.937" centers
• Vertical Foot Mount Four 0.433" holes on 4.528" x 3.937" centers
• Cross Reference SEW K37
• Size 10.74" x 6.5" x 6.88"
• Shpg. 39 lbs.
