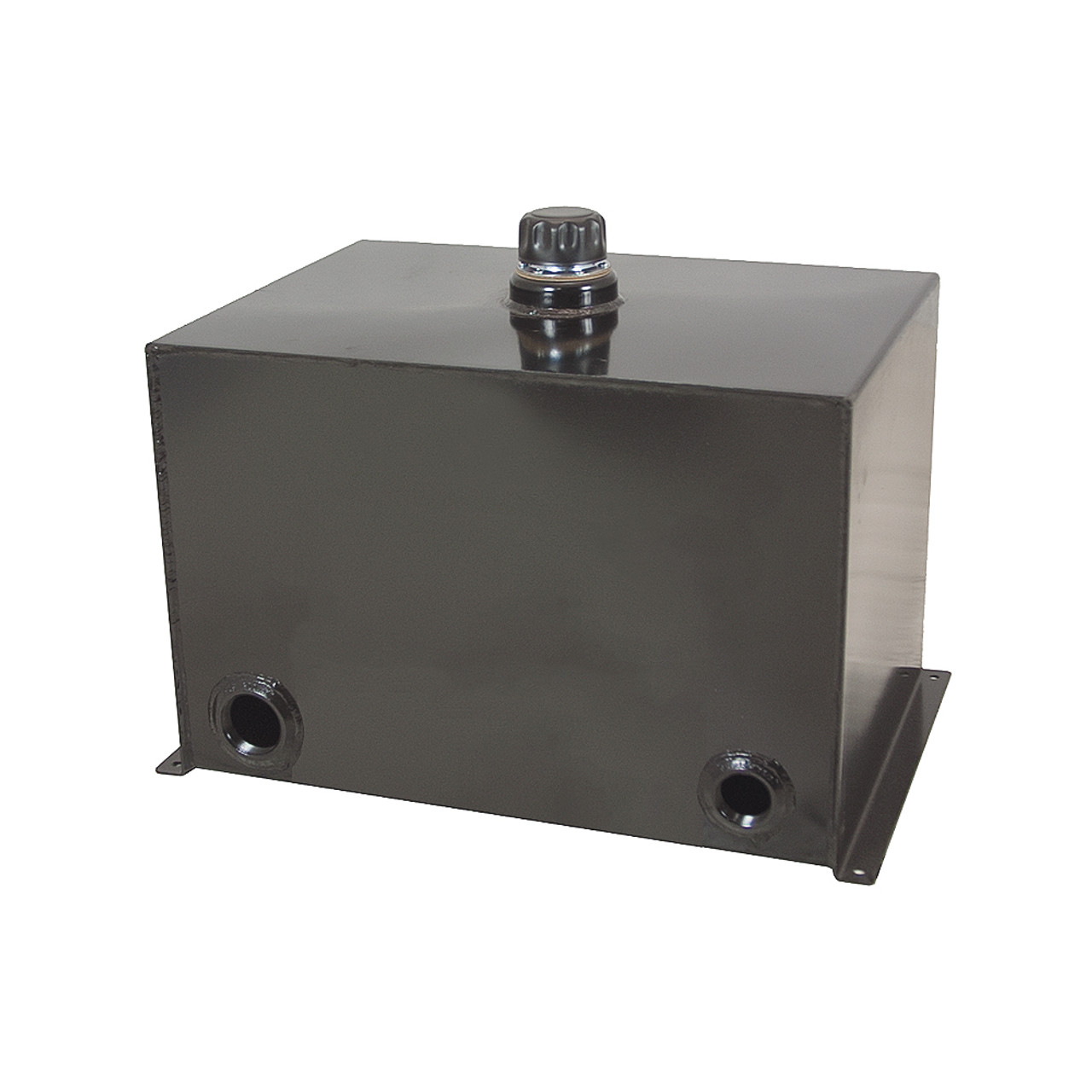

25 Gallon Hydraulic Reservoir/Tank [902885]

Product Description

25 GALLON HYDRAULIC RESERVOIR
Brand new, superior quality hydraulic reservoir. Constructed of 12 gauge, black powder-coated steel. Internal baffle slows oil to allow proper cooling. Filler/breather has 10 micron foam filter, mesh basket.  Integral mounting foot on each end. Drain port sealed with removable steel plug. Select a reservoir with capacity at least equal to pump flow GPM (e.g. 25 gallon reservoir capacity minimum for system with 25 GPM pump). Made in USA.

SPECIFICATIONS

• Capacity 25 gallons
• Ports:
     2" NPT x one
     1-1/2" NPT x one
     3/4" NPT x one
• Mount 4 bolts 25-1/2" x 16" C/C
• Mounting Holes 3/8" dia.
• Tank Size W/O Feet Or Filler
     24-3/8" x 17-1/2" x 16-1/2"
• Tank Height To Filler Cap Top 20-1/8"
• Foot-Print 26-3/4" x 17-1/2"
• Shpg. 83 lbs.
