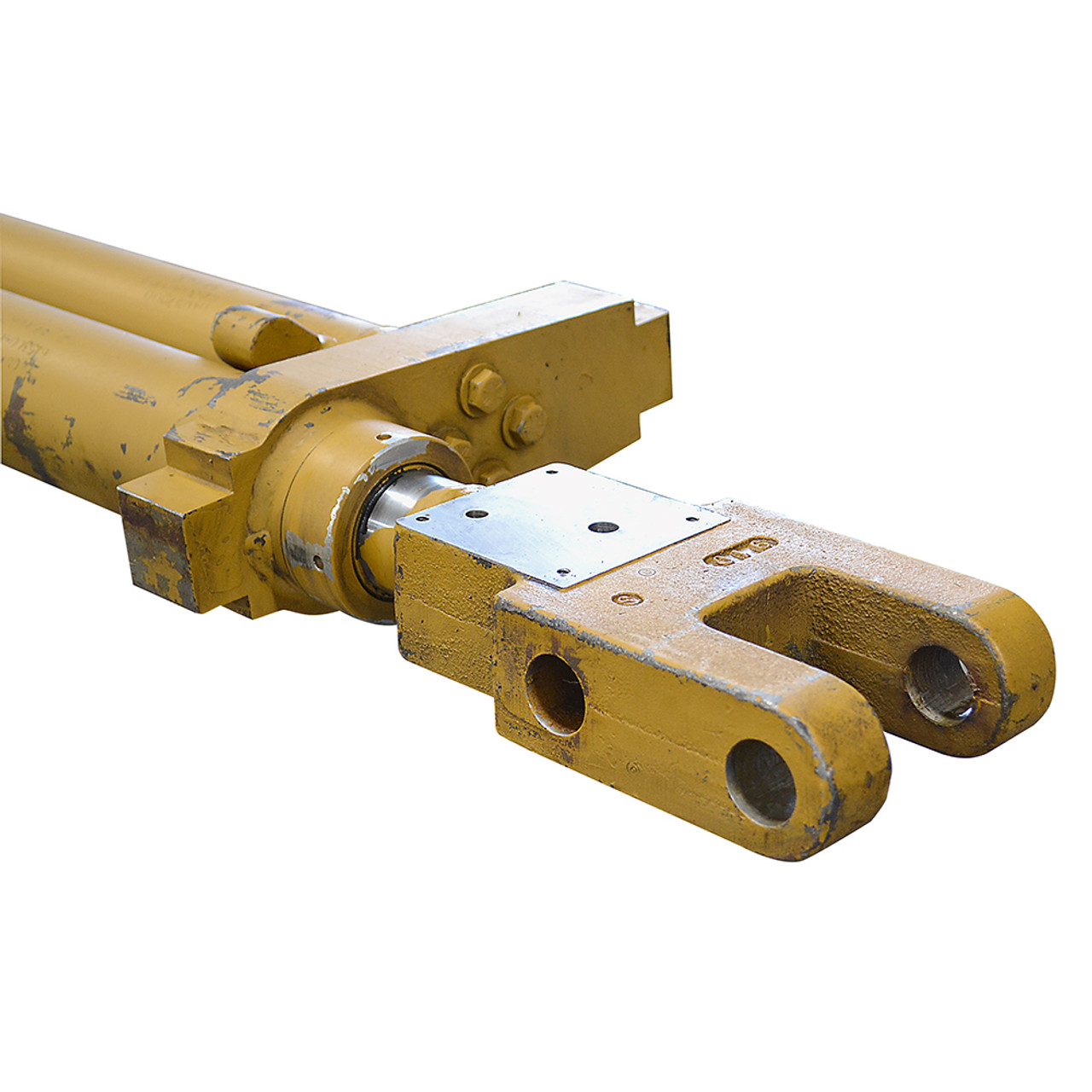

3"/2.5"x190"x2.25"/2" Double Acting Tandem Hydraulic Cylinder 04057000 61530048043 61530040007 [902466]

Product Description

3"/2.5" x 190" (BOTH) x 2.25"/2" DOUBLE ACTING TANDEM HYDRAULIC CYLINDER
New, welded cylinders with thread-in gland caps. Larger bore cylinder has 1/2" dia. extend port and 3/8" dia. retract port in rod end, both on manifold pad measuring 4" x 3-7/8" with four 1/4"-20 bolts on 3-1/4" x 3" centers. Cylinders operate independently in opposing directions, each has 190" stroke. Four 1/2" dia. bolts at each base end connect cylinders, can be easily separated.

SPECIFICATIONS
Double Acting, Tandem Bore x Stroke 3" x 190", 2.5" x 190" Barrel Thickness 1/4" (both) Pressure 2000 PSI max. Rod Dia. 2-1/4", 2" (both hollow) Rod Thickness 3/8", 5/16"	Ports SAE 8, See paragraph Retracted Length 232-1/2" Shpg. 700 lbs.

END MOUNTINGS
Rod End (Larger Cylinder) Clevis Outside Width 5-5/8" Inside Width 2-11/16" Throat Depth 3-3/4" Pin Hole 1-1/4" Rod End (Smaller Cylinder) Clevis Outside Width 5-9/16" Inside Width 2-5/8" Throat Depth 3-3/4" Pin Hole 1-1/4"	Rod End (both) Thru-Hole Width 5-9/16" Pin Center to Rod End 5-1/4" Pin Hole 1-1/4"
