Product Description

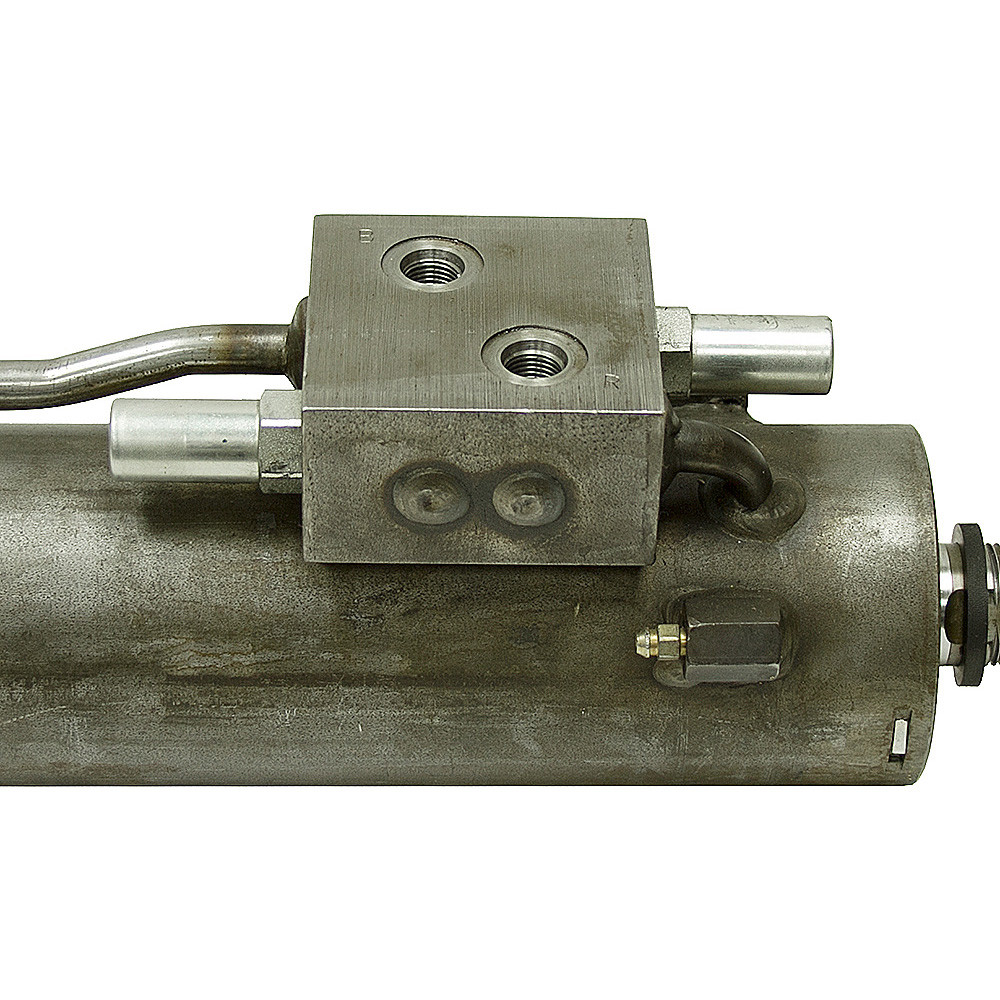

3.25" x 16" x 1.25" DA HYDRAULIC CYLINDERNew. Welded, unpainted cylinder with wire-lock gland retainer. Cartridge block at rod end of barrel has two SUN model CACA-LHN atmospherically referenced, vented counterbalance valves with 3:1 pilot ratio and 15 gpm capacity, factory set to 3000 psi. Transfer tube to cartridge block. Four bleeders, two on each end of barrel.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-9564
Badges surplus-item,last-one
Base End Clevis
Base End Pin Size 1"
Bore Range1 3" - 3.9"
Construction Type Welded
Max PSI Up to 2500 PSI
Ports SAE
Retracted Length 24" - 29.9"
Rod Dia 1.25"
Rod End Clevis
Rod End Pin Size 1"
Stroke 16
Stroke Range1 12" - 17.9"
PDF Page Catalog 299-68.pdf
