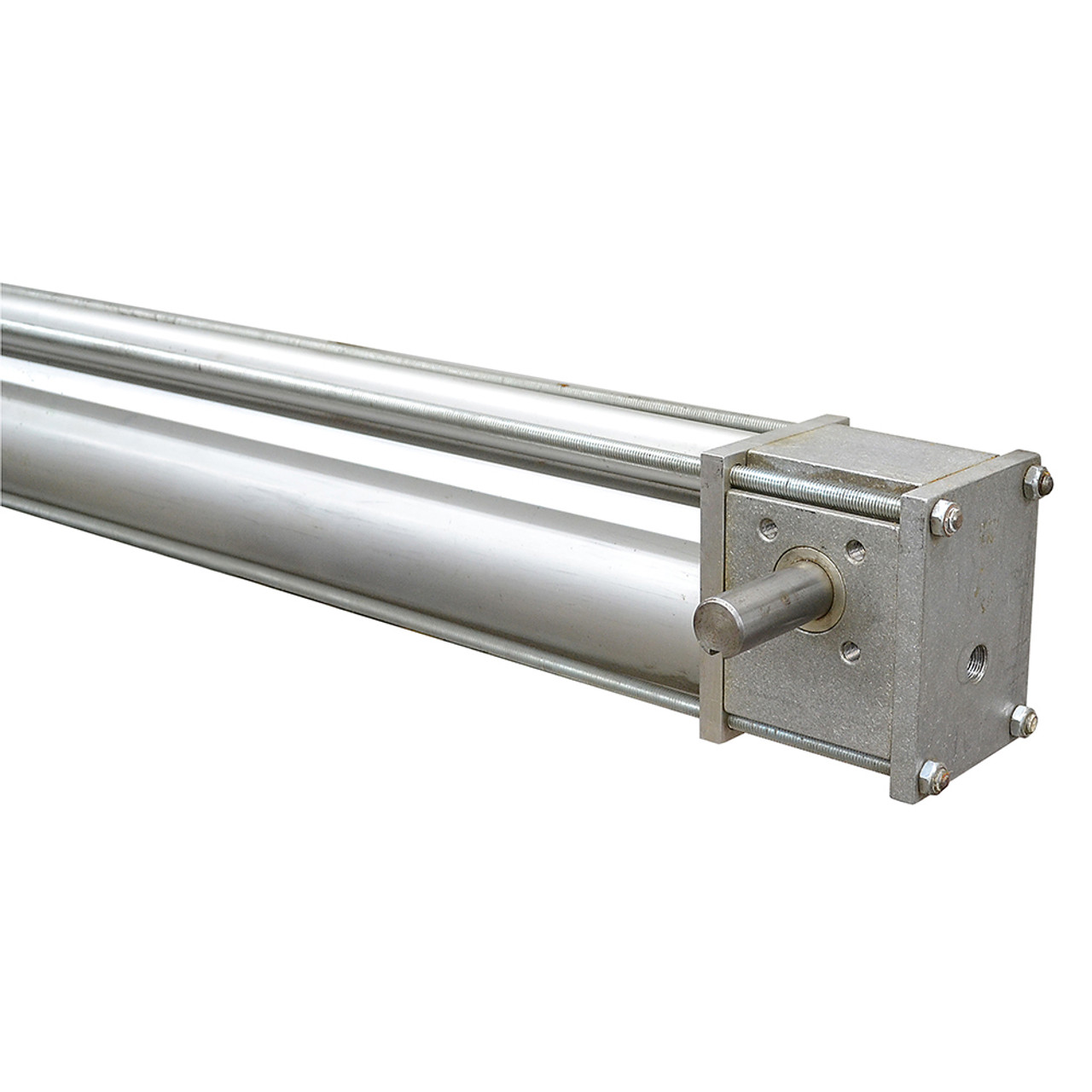

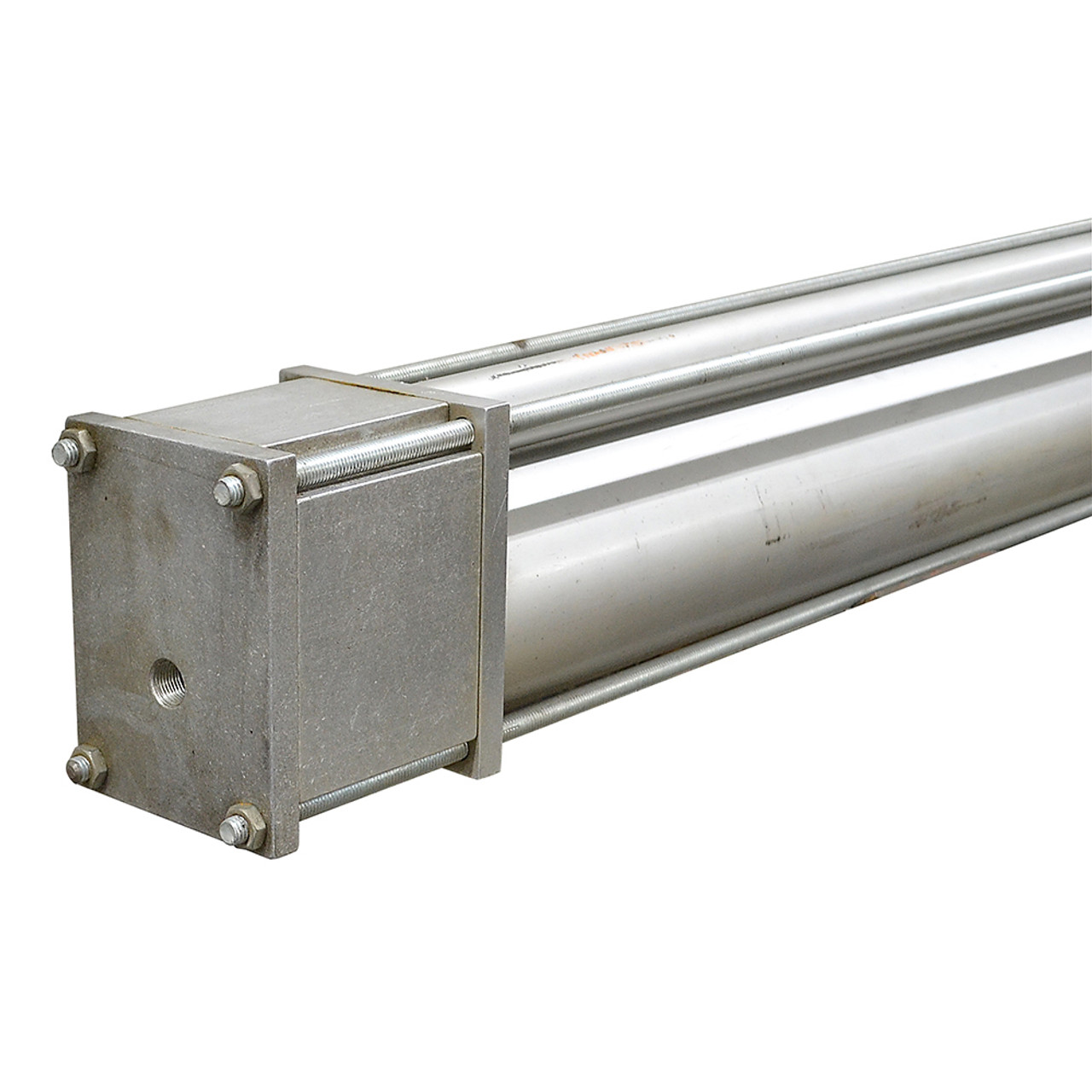

3.5" x 360° Rotary Actuator [400551]

Product Description

360° PNEUMATIC ROTARY ACTUATOR
Unused old inventory. Double acting pneumatic rotary actuator. Rota-Cyl Deltrol Fluid Products numbers on cylinder AC 3.5 x 1800°

SPECIFICATIONS

• Rotation Reversible
• Bore Size 3.5"
• Torque 900 in-lb
• Angle of Shaft Rotation 360°
• Number of Revolutions 5
• Pressure 100 PSI
• Shaft 1" dia. x 2.5" long w/ 1/4" keyway
• Mounting Four, 3/8"-24 drilled and tapped holes 0.55" deep on 1.73" centers
• Ports 3/8" NPT
• Dimensions 52" x 7" x 6"
• Shpg. 40 lbs.
