  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]
  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]
  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]
  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]
  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]
  • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]

    • 3.75/3 x 260 x 3/2.5 Double Acting Tandem Hydraulic Cylinder [902463]

    Item Number: 902463

    Legacy Part Number: 9-10395

    (No reviews yet) Write a Review

    In Stock

    Surplus Item
    $595.95
    Adding to cart… category.add_cart_announcement

    Must ship via Truck Freight

    Please contact us for a quote.

    Product Description

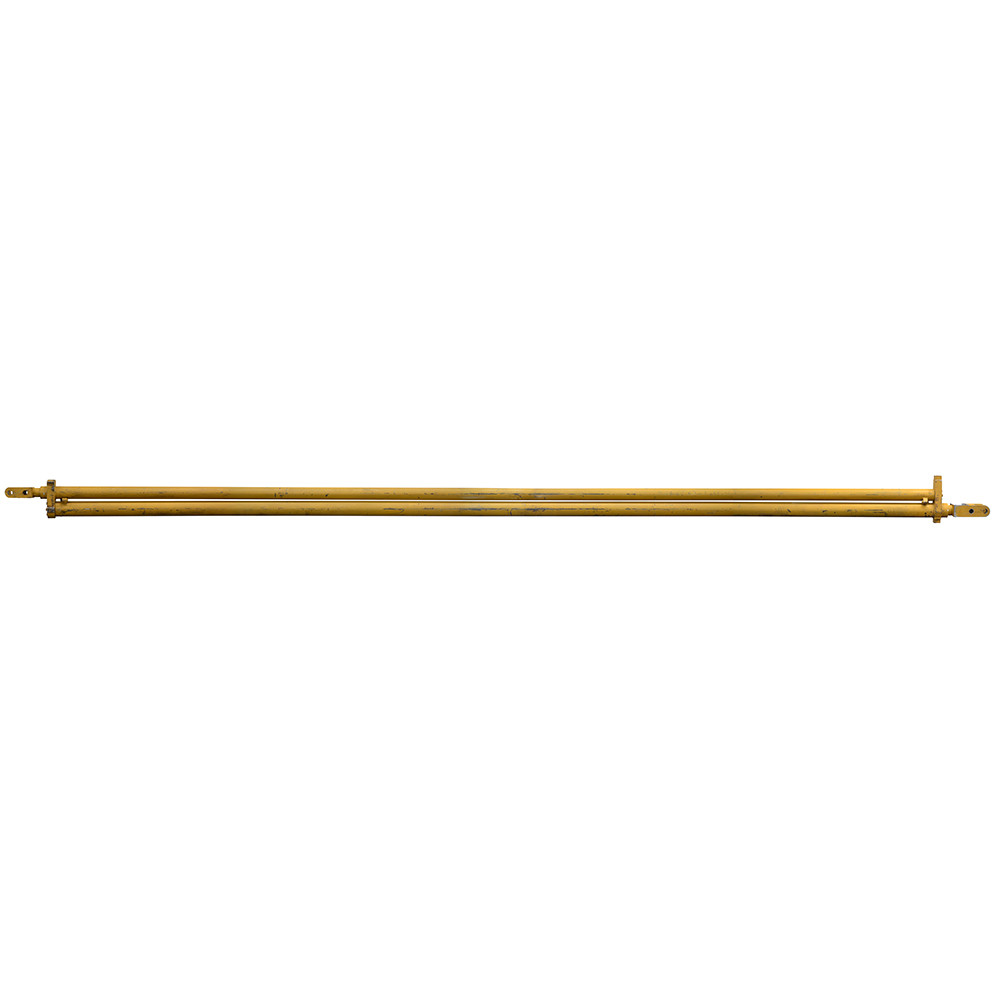

    3.75"/3" x 260" x 3"/2.5" DOUBLE ACTING HYDRAULIC CYLINDER

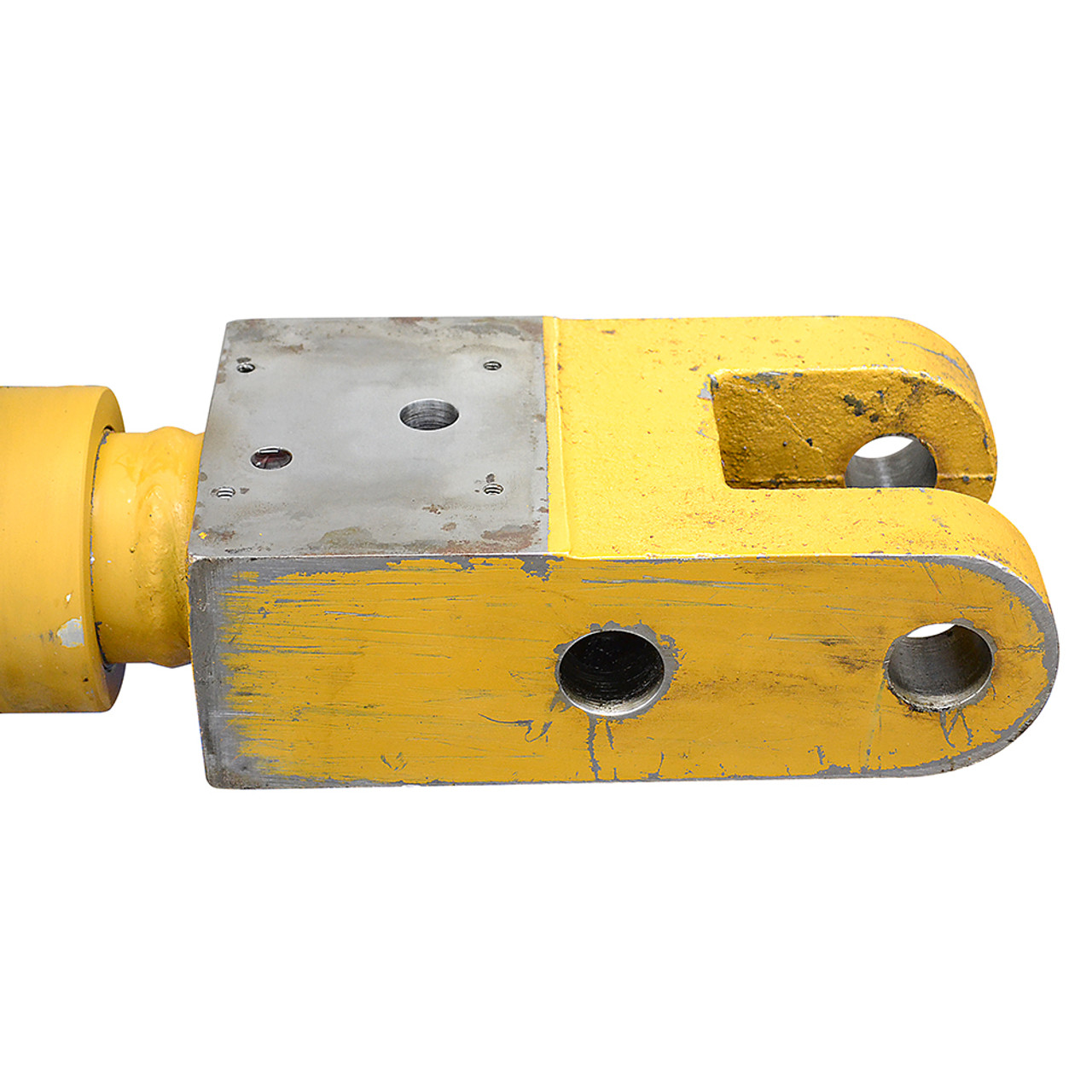

    Unused old inventory. Double acting TANDEM hydraulic cylinder. Large cylinder has mouting flange for manifold in rod end with 3/4" extend port and 1/2" retract port with four 1/4"-20 x 7/8" bolt holes on 3-1/4" x 3" centers. Model# 61530 06 0011 (3.75" CYL) & 61530 04 8034 (3" CYL)

    GENERAL SPECIFICATIONS
    • Double Acting
    • Gland Retainer Threaded In Gland
    • Pressure 3000 PSI max.


    • Ports SAE 8
    • Retracted Length 304"
    • Shpg. 1092 lbs.
    CYLINDER ONE
    • Bore x Stroke 3.75" x 260"
    • Barrel Thickness 0.25"
    • Rod Dia. 3"
    • Hollow Rod, Thickness 0.369"
    END MOUNTINGS
    • Rod End Clevis
    • Outside Width 5.75"
    • Inside Width 2.75"
    • Throat Depth 3.95"
    • Pin Hole 1-1/4"



    •  Rod End Thru-Hole
    • Width 5.625"
    • Pin Center to Base End 5.465"
    • Pin Hole 1-1/4"


    • Base End Plane
    CYLINDER TWO
    • Bore x Stroke 3" x 260"
    • Barrel Thickness 0.25"
    • Rod Dia. 2.5"
    • Hollow Rod, Thickness 0.25"
    END MOUNTINGS
    • Rod End Clevis
    • Outside Width 5.625"
    • Inside Width 2.625"
    • Throat Depth 4.456"
    • Pin Hole 1-1/4"



    • Rod End Thru-Hole
    • Width 5.625"
    • Pin Center to Base End 5.463"
    • Pin Hole 1-1/4"
    • Base End Plane

    Product Videos

    Custom Field

    Truck true
    Prop65 true
    Legacy Part Number 9-10395
    Badges surplus-item,last-one
    Base End Clevis
    Base End Pin Size 1-1/4''
    Bore Range1 3'' - 3.9''
    Construction Type Welded
    Max PSI Over 2500 PSI
    Ports SAE
    Retracted Length 60'' and Longer
    Rod Dia 3''
    Rod End Clevis
    Rod End Pin Size 1-1/4''
    Stroke 262
    Stroke Range1 60'' and Longer
