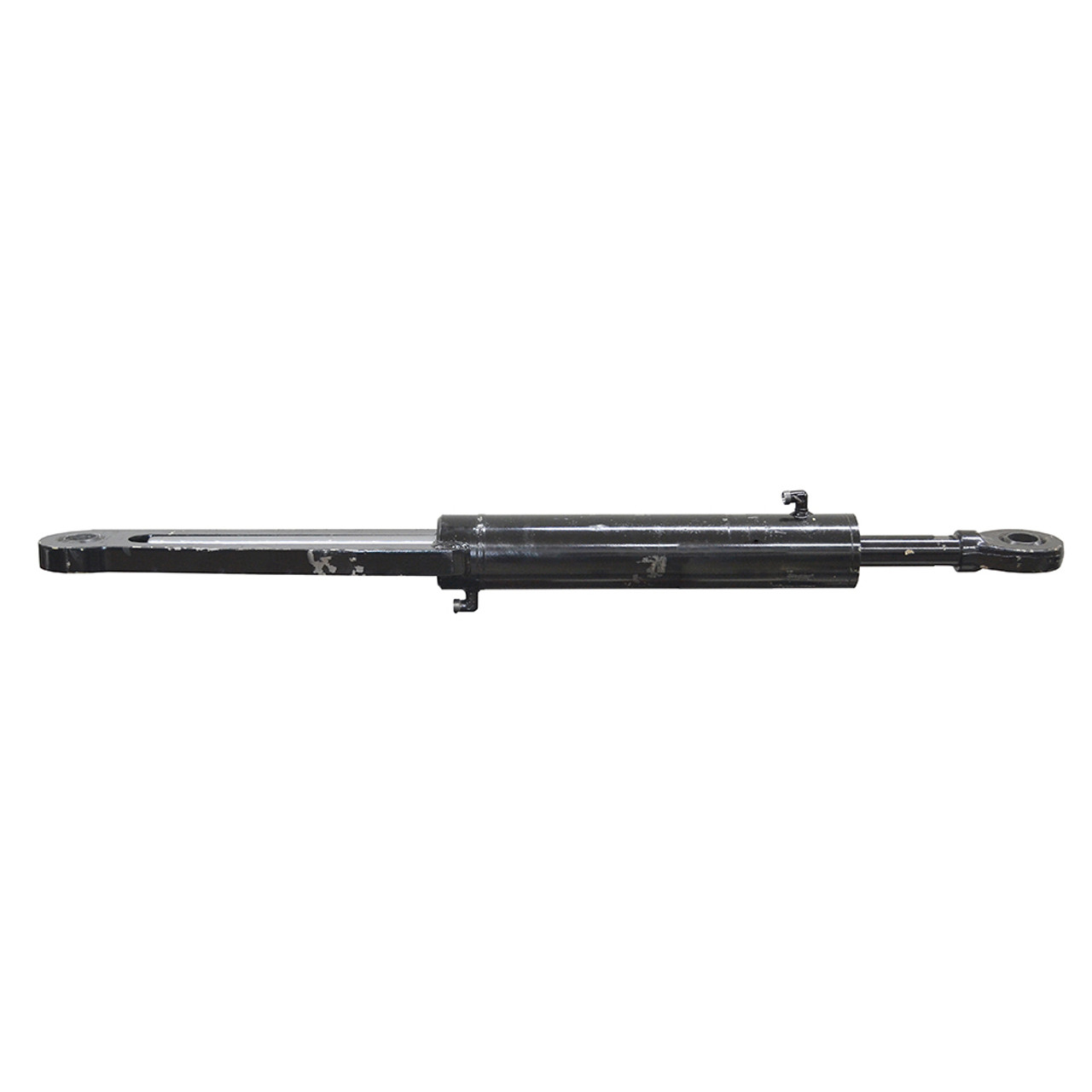

  • 3.91(100mm) x 17(42mm) x 1.97(50mm) Double Acting Hydraulic Cylinder Shaeff 6500974000 [904737]
  • 3.91(100mm) x 17(42mm) x 1.97(50mm) Double Acting Hydraulic Cylinder Shaeff 6500974000 [904737]
  • 3.91(100mm) x 17(42mm) x 1.97(50mm) Double Acting Hydraulic Cylinder Shaeff 6500974000 [904737]
  • 3.91(100mm) x 17(42mm) x 1.97(50mm) Double Acting Hydraulic Cylinder Shaeff 6500974000 [904737]

    • 3.91(100mm) x 17(42mm) x 1.97(50mm) Double Acting Hydraulic Cylinder Shaeff 6500974000 [904737]

    Item Number: 904737

    Legacy Part Number: 9-20231

    (No reviews yet) Write a Review

    4 In Stock

    Surplus Item
    $199.95
    Adding to cart… category.add_cart_announcement
    Catalog Page This item is on page 68 of our current catalog

    Product Description

    3.91"(100mm) x 17"(42mm) x 1.97"(50mm) DA HYD CYL
    Unused old inventory. Double acting hydraulic cylinder. SCHAEFF numbers on cylinder 6500974000.

    SPECIFICATIONS
    • Double Acting
    • Bore x Stroke 3.91"(100mm) x 17"(42mm)
    • Barrel Thickness 0.304"
    • Gland Retainer Threaded in gland
    • Pressure 3000 PSI
    • Rod Dia. 1.97"(50mm)
    • Ports M22 x 1.5, 24° flare
    • Gland Face to Rod Pin Center 10.25"
    • Shpg. 139 lbs.
    END MOUNTINGS
    • Rod End Swivel Eye
    • Width 1.49"
    • Pin-Center-To-Swivel Eye-End 2.43"
    • Swivel Eye Width 1.75"
    • Pin Hole 2.76"(70mm)
    • Base End Swivel Eye
    • Width 1.58"
    • Pin-Center-To-Swivel Eye-End 2.5"
    • Swivel Eye Width 1.75"
    • Pin Hole 1.77"(45mm)

    Product Videos

    Custom Field

    Legacy Part Number 9-20231
    PDF Page Catalog298-68.pdf
    Badges surplus-item,last-one
    Base End Swivel Eye
    Base End Pin Size 45mm
    Bore Range1 3'' - 3.9''
    Construction Type Welded
    Max PSI Over 2500 PSI
    Ports Metric
    Retracted Length 48'' - 59.9''
    Rod Dia 50mm
    Rod End Swivel Eye
    Rod End Pin Size 45mm
    Stroke 17
    Stroke Range1 12'' - 17.9''
