3 HP Special Duty 230 Volt AC 3420 RPM Air Compressor Motor WEG 3HP02P56H208230V60 [500745]

Product Description

3 HP SPL 3480 RPM 208/230 VAC COMPRESSOR DUTY MOTOR
Brand new, WEG model# Z00336OS1C022416 capacitor-start, capacitor-run electric motor. Special Duty motor designed to replace motors on compressors. High torque design for compressor duty applications. Thermal overload protection with manual reset. Steel frame and base.

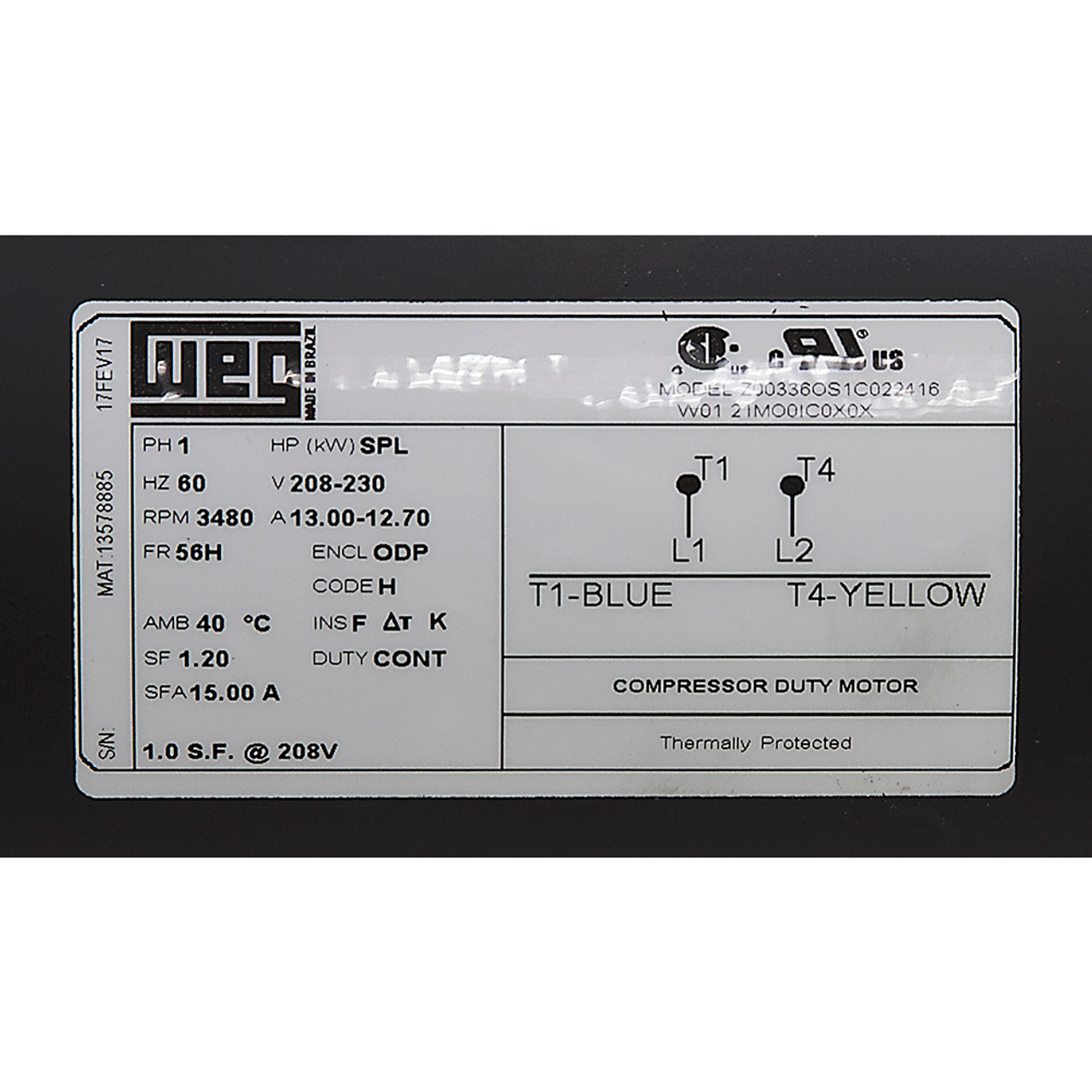

Confirm your motor name plate data tag including voltage, amperage, speed, frame and shaft diameter to match this motor specifications for proper operation.

SPECIFICATIONS

• Brand Weg
• Model Z00336OS1C022416
• Power 3 HP Definite Purpose Special Compressor Duty
• Voltage 208 - 230 VAC
• Amperage 13.00/12.70 Amps
• Speed 3480 RPM
• Phase 1
• Rotation CCW
• Service Factor 1.2
• Bearings Ball
• Enclosure ODP
• Duty Continuous
• Frame 56H
• Base Mount Six 1-7/32" x 5/16" slots on 4-15/16" x 3" to 5" centers
• Shaft 5/8" dia. x 1-7/8" w/ 3/16" keyway
• Size 10" x 8-1/4" x 6-1/2"
• Shpg. 38 lbs.
