Product Description

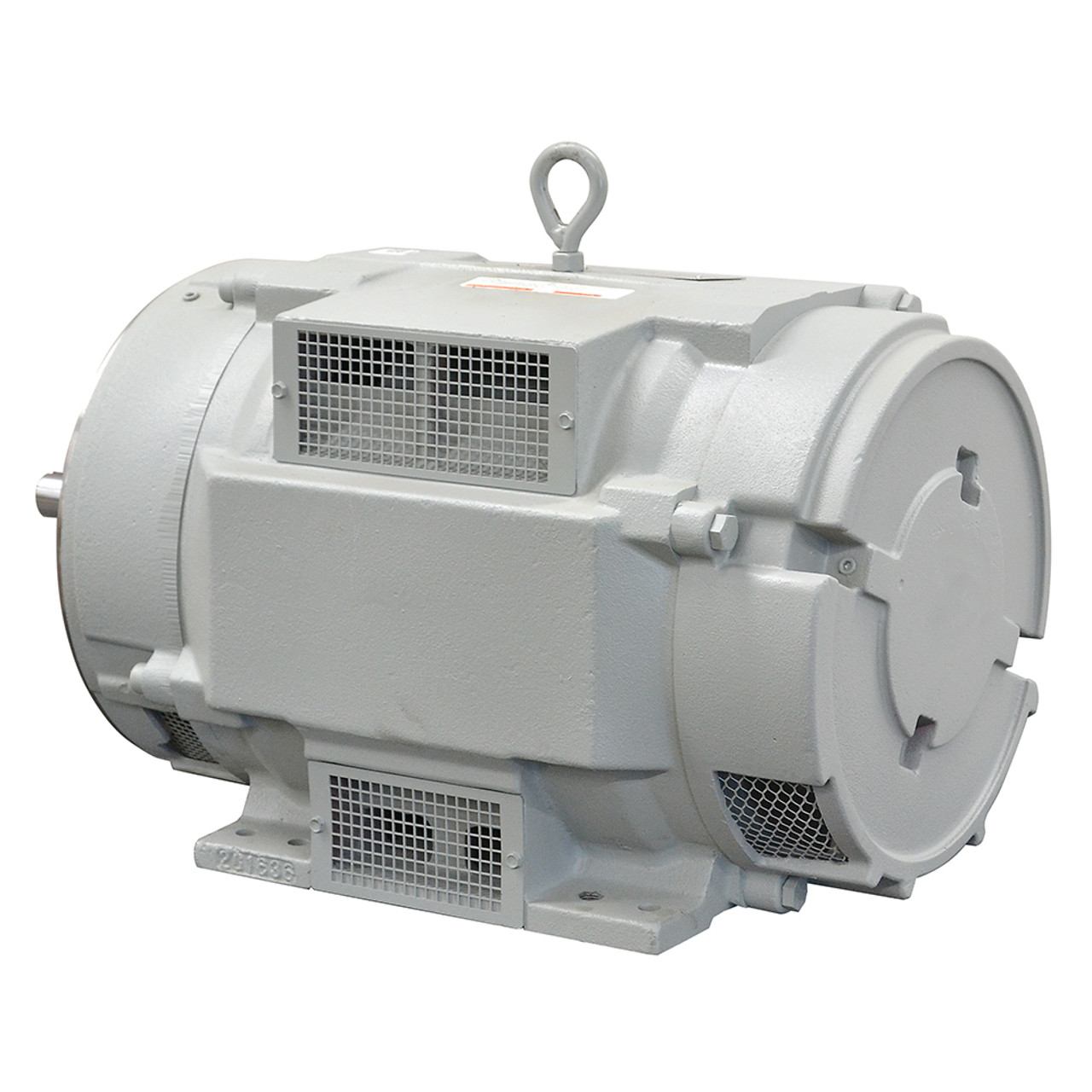

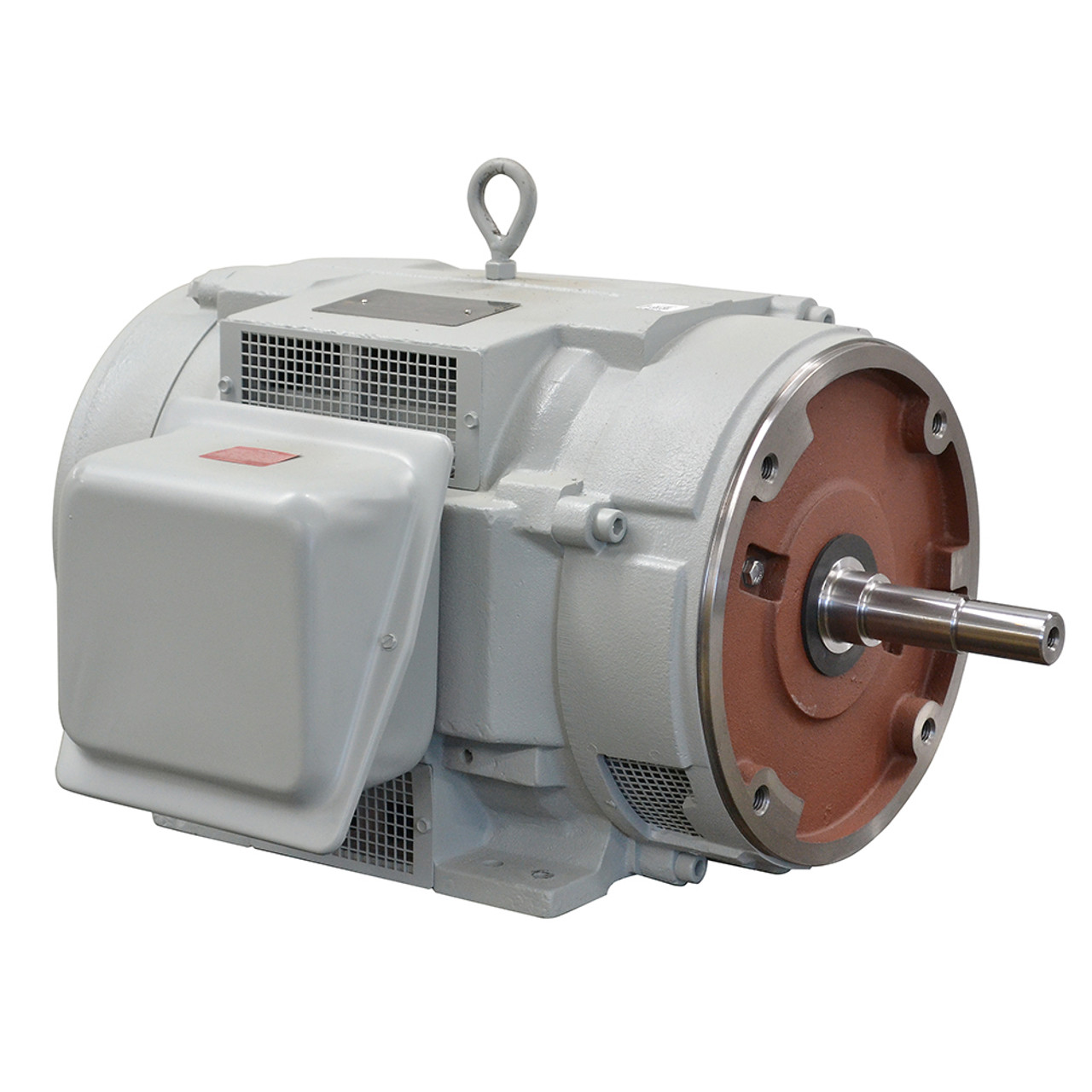

30 HP 3552 RPM 220/380 VOLT AC 3PH MARATHON MOTOR
New, Marathon pump motor model# RVM 284TTDN16005AAL.
SPECIFICATIONS
- Power 30 HP
- Voltage 220/380 AC
- Phase 3
- Frequency 60 Hz
- Amperage 71/41 Amps
- Speed 3552 RPM
- Rotation Reversible
- Service Factor 1.15
- Bearings Ball
- Enclosure ODP
- Duty Continuous
- Frame 284JM
- Base Mount Four 0.53" diam. holes on 11" x 9-1/2" centers
- Face Mount Four 5/8"-11 tapped holes on 11" diameter bolt circle
- Shaft 1-3/8" dia. x 2-3/8" stepped down to 1-1/4" dia. x 2-1/4" w/ 1/4" keyway
- Size 26" x 19-7/8" x 14"
- Shpg. 425 lbs.
Product Videos
Custom Field
Truck true
Legacy Part Number 10-3251
Badges surplus-item,last-one
Enclosure ODP
Frame 284JM
HP 30
RPM 3450
Voltage 220/380 Volt AC
