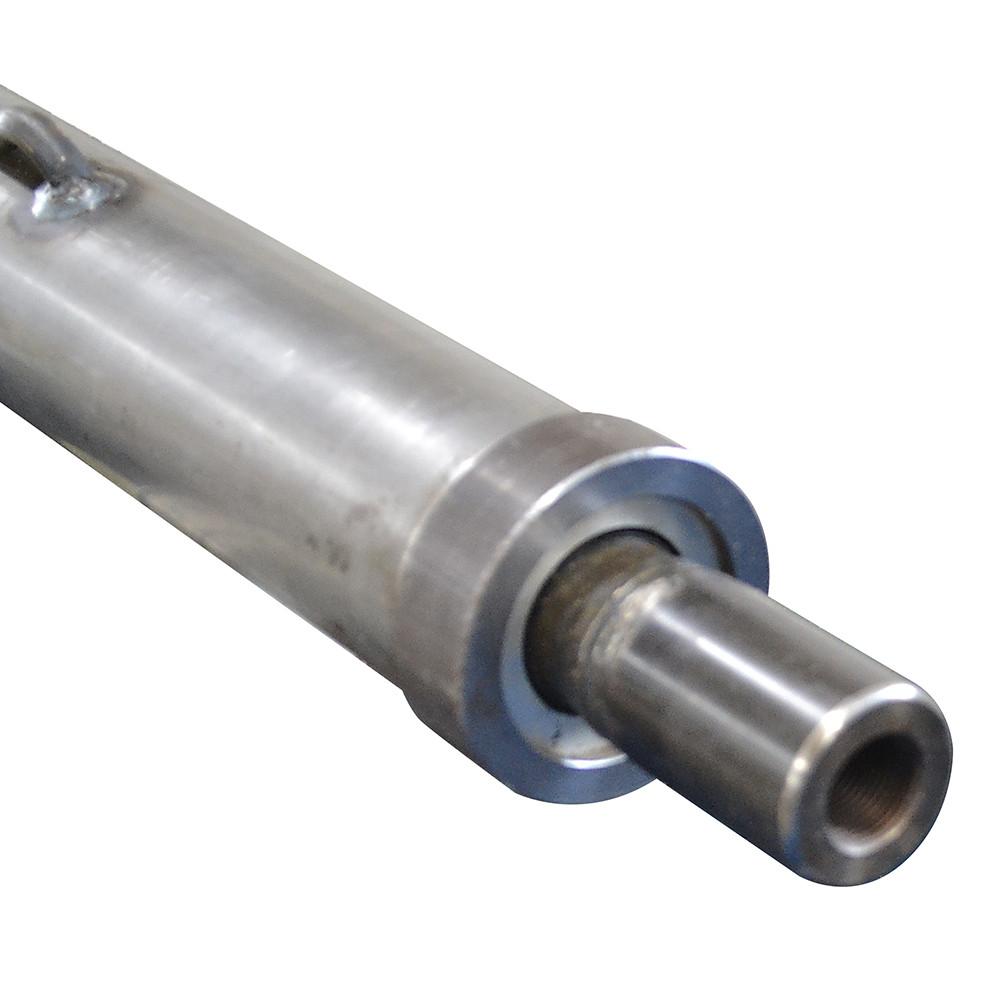

  • 3" x 16" x 1.75" Double Acting Hydraulic Cylinder
  • 3" x 16" x 1.75" Double Acting Hydraulic Cylinder
  • 3" x 16" x 1.75" Double Acting Hydraulic Cylinder

    • 3" x 16" x 1.75" Double Acting Hydraulic Cylinder

    Item Number: 904568

    Legacy Item Number: 9-11320-A

    Surplus Item
    $129.95
    Adding to cart… category.add_cart_announcement

    Product Description

    3" x 16" x 1.75" DA HYD CYL
    Unused old inventory. Double acting hydraulic cylinder. Cylinder has internal stroke limiter. Cylinder has only one SUN CACA CHN 1850 PSI adjustable cartridge valve in manifold. Numbers on cylinder 521801 100GR0034.

    SPECIFICATIONS
    • Double Acting
    • Bore x Stroke 3" x 16"
    • Barrel Thickness 0.186"
    • Gland Retainer Externally threaded gland cap
    • Pressure 3000 PSI
    • Rod Dia. 1.75"
    • Ports SAE 6
    • Retracted Length 36.5"
    • Gland Face to Rod Pin Center 4"
    • Shpg. 55 lbs.
    END MOUNTINGS
    • Rod End Tapped
    • Thread size-Pitch 1-1/8"-12
    • Thread Depth 3"
    • Base End Tapped
    • Thread size-Pitch 1-1/8"-12
    • Thread Depth 3"

    Product Videos

    Custom Field

    Legacy Part Number 9-11320-A
    Badges surplus-item,last-one
    Base End Tapped
    Bore Range1 3" - 3.9"
    Construction Type Welded
    Max PSI 2500 PSI and Over
    Ports SAE
    Retracted Length 36" - 47.9"
    Rod Dia 1.75"
    Rod End Tapped
    Stroke 16"
    Stroke Range1 12" - 17.9"
    Bore Range 3" - 3.9"
    Stroke Range 12" - 17.9"
    Rod Dia Range 1" - 1.99"
