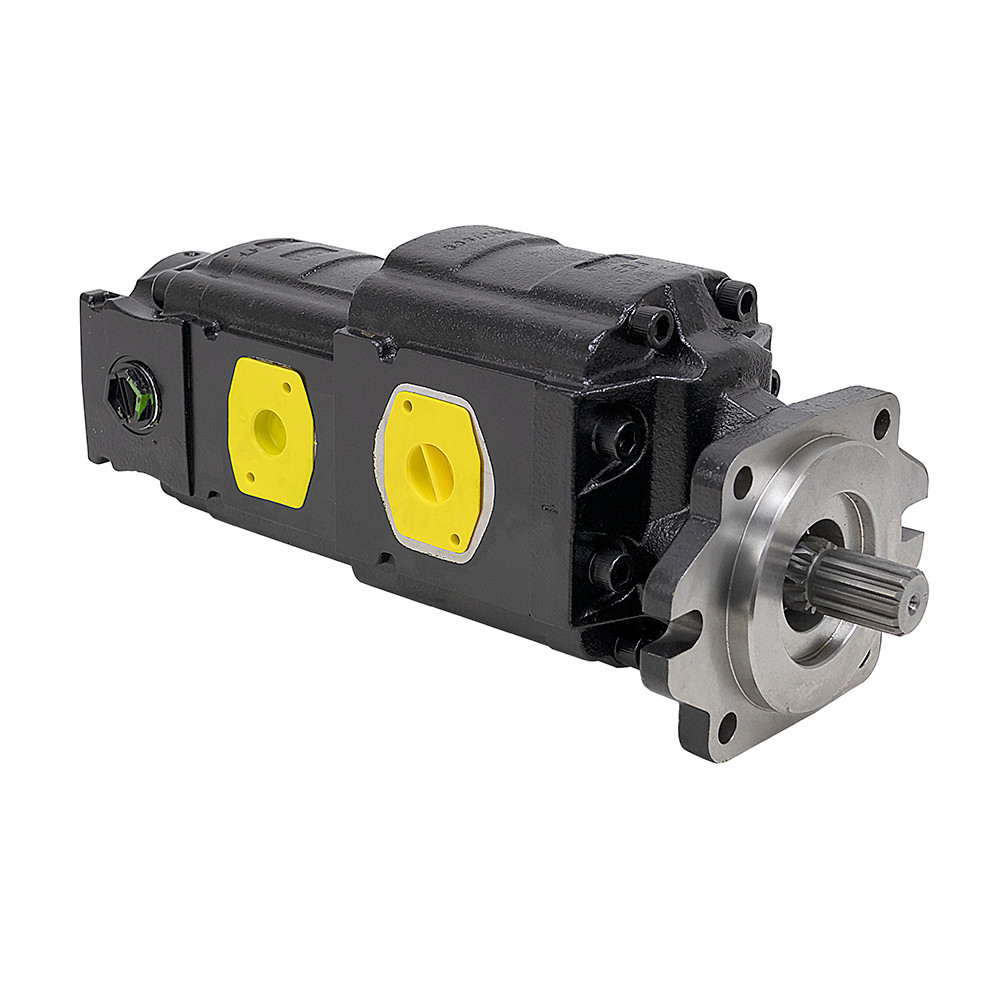

4.43/2.83/1.34 cu in Casappa Hydraulic Triple Pump KP40.73-06S8-ZSN/SD-C5-CSL/30.46-L/SC-CSL/30.22-L/OD-HSC-M5 D VNR01 [906283]

Product Description

4.43/2.83/1.34 CU IN CASAPPA HYDRAULIC TRIPLE PUMP
New, Casappa KP40.73-06S8-ZSN/SD-C5-CSL/30.46-L/SC-CSL/30.22-L/OD-HSC-M5 D VNR01 hydraulic triple pump. Cast iron gear pump for heavy duty applications with a compact structure that makes it possible to incorporate a number of functions in a limited space.

SPECIFICATIONS

• Brand Casappa
• Model Number KP40.73-06S8-ZSN/SD-C5-CSL/30.46-L/SC-CSL/30.22-L/OD-HSC-M5 D VNR01
• Disp.
  4.43 cu in Front
  2.83 cu in Middle
  1.34 cu in Rear
• Pump Type Gear
• Rotation CW
• Pressure:
  Front 3480 PSI cont.
  Middle 3045 PSI cont.
  Rear 3770 PSI cont.
• Speed:
  300 RPM Min.
  2800 RPM Max.
• Flow:
  Front 47 GPM cont.
  Middle 37 GPM cont.
  Rear 16 GPM cont.
• Mount SAE C 2-4 Holes
• Shaft 1-1/4" 14 teeth spline
• Common Inlet Port 2-1/2" 4-bolt SAE code 61 flange
• Outlet Ports
  Front 1-1/4" 4-bolt SAE code 61 flange
  Middle 1" 4-bolt SAE code 61 flange
  Rear SAE 12
• Case Drain None
• Size 18.465" x 8.362" x 7.82"
• Shpg. 123 lbs.
