Product Description
MAXIM DOUBLE ACTING TIE-ROD HYDRAULIC CYLINDER
Brand new, MAXIM tie-rod hydraulic cylinder. High quality tie-rod cylinders at great savings. Built to perform in the agricultural industry as well as other industries.
| SPECIFICATIONS | |
|
|
| END MOUNTINGS | |
|
|
| California Residents |
|
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov |
Product Videos
Custom Field
Prop65 true
Legacy Part Number 9-16135-12
Badges regular-stock
Base End Clevis
Base End Pin Size 1"
Bore Range1 4" - 4.9"
Construction Type Tie-Rod
Max PSI Up to 2500 PSI
Ports NPT
Retracted Length 18" - 23.9"
Rod Dia 1.5"
Rod End Clevis
Rod End Pin Size 1"
Stroke 12
Stroke Range1 12" - 17.9"
Dimensional Diagram drMaxim_TC.pdf
PDF Page Catalog 299-47.pdf
![4x12x1.5 Double Acting Hydraulic Cylinder Chief 211399 [906558]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/13261/117748/9-16608-12__24015.1762810597.jpg?c=1 "4x12x1.5 Double Acting Hydraulic Cylinder Chief 211399 [906558]")

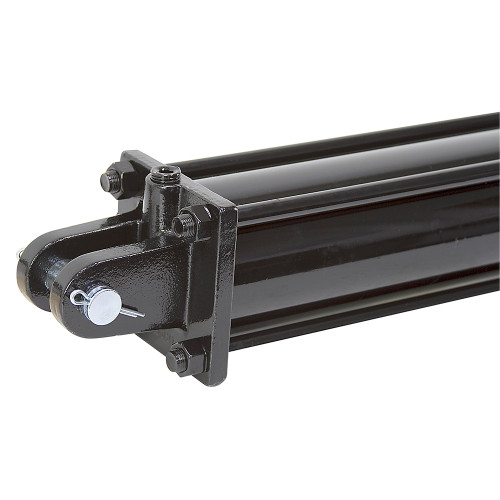

![4x12x1.5 Double Acting Hydraulic Cylinder Lion 40LH12-150 3000 PSI [903000]](https://cdn11.bigcommerce.com/s-3nwcvn3gzw/images/stencil/500x659/products/6858/110463/9-8264-12__82963.1762808843.jpg?c=1 "4x12x1.5 Double Acting Hydraulic Cylinder Lion 40LH12-150 3000 PSI [903000]")
