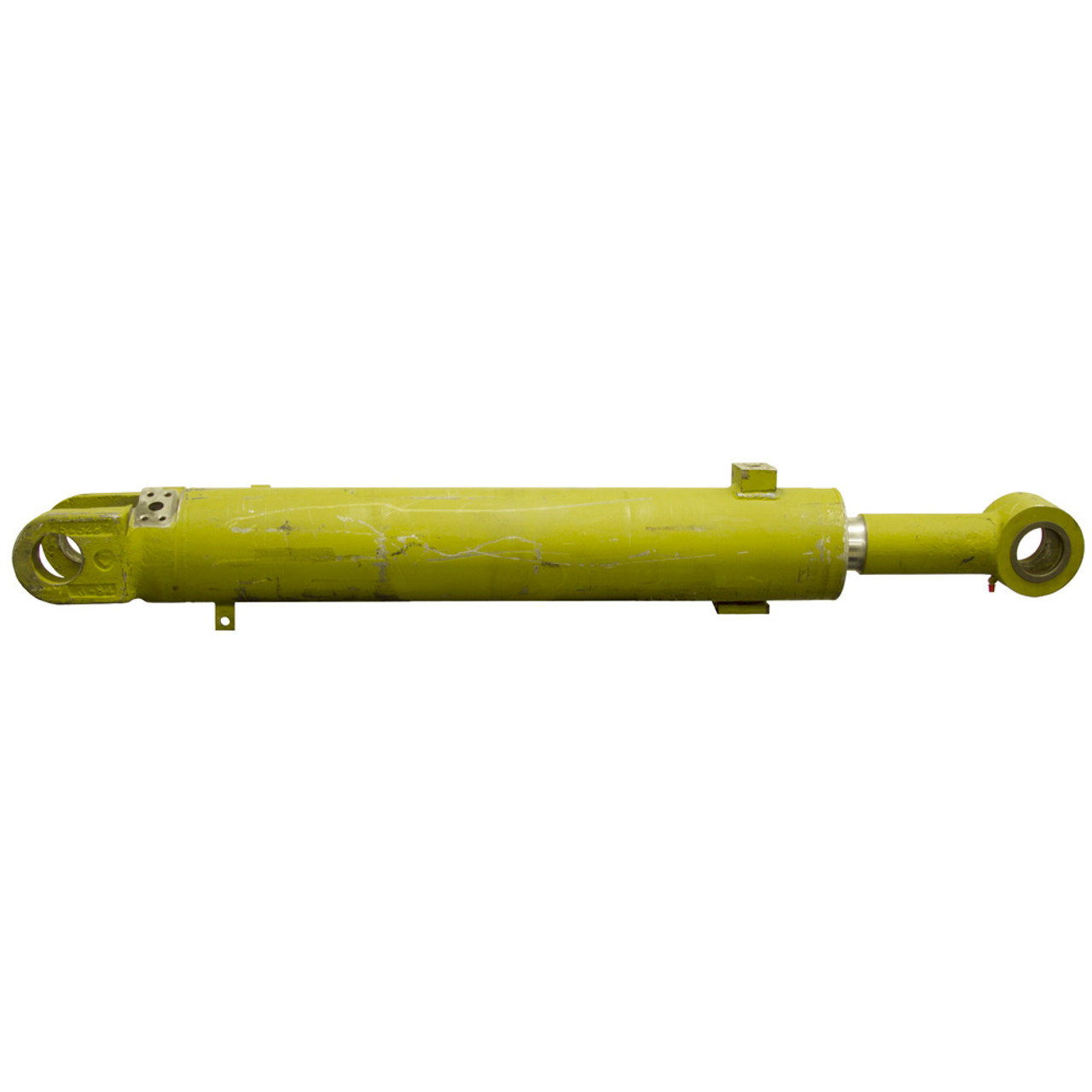

5x24.625x2.75 Double Acting Hydraulic Cylinder 2554081 [903761]

Product Description

5" x 24.625" x 2.75" DA HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-in gland cap. Cylinder has 2-7/8" x 2" plate with four 1/4"-20 tapped holes on 2-3/8" x 1-3/16" centers welded to barrel near rod end. Cylinder also has one 1" wide x 1-1/2" long tang with 7/16" mounting hole and one 1" x 1" x 3/4" square stock with 1/2"-20 x 3/4" deep tapped hole welded near base end. "2554081" stamped into cylinder barrel.

SPECIFICATIONS
Double Acting Bore x Stroke 5" x 24-5/8" Barrel Thickness 3/8" Pressure 3000 PSI max. Rod Dia. 2-3/4"	Ports 3/4" Four Bolt Flange, Code 61 Retracted Length 49" Shpg. 270 lbs.

END MOUNTINGS
Rod End Crosstube Width 3-1/4" O.D. 4-3/4" Pin Hole 2-1/2"	Base End Clevis Outside Width 7" Inside Width 3-5/8" Throat Depth 5-3/4" Pin Hole 2-1/2"
