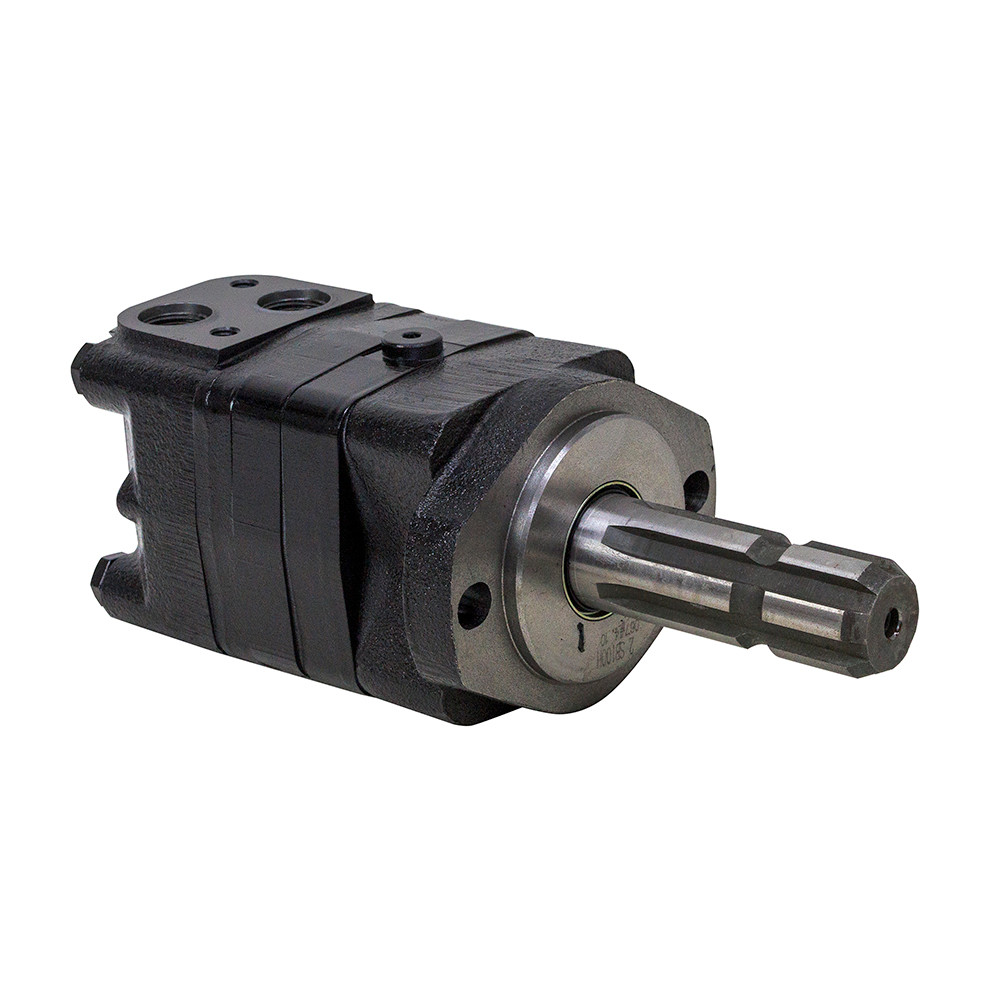

6.15 cu in PTO Drive Motor Dynamic BMSY-100-E2-SL-S [901871]

Product Description

PTO DRIVE MOTOR
Brand new, hydraulic motor with agricultural standard six tooth splined shaft. Tapered roller bearings on output shaft for high axial and radial load capacity. Shaft has retention groove centered 1-1/2" from shaft end.
Interchangeable with the following motor lines: CHAR-LYNN 2000, DANFOSS OMS/OMSS, WHITE RE/DH, PARKER-ROSS MB/TF.

SPECIFICATIONS

• Brand Dynamic
• Model Number 62091
• Build Number BMSY-100-E2-SL-S
• Disp. 6.15 cu. in./rev.
• Motor Type Geroler
• Pressure:
    2576 PSI cont.
    3091 PSI int.
• Torque:
    2124 in-lbs. cont.
    2655 in-lbs. int.
• Speed:
    748 RPM cont.
    900 RPM int.
• Flow:
    19.7 GPM cont.
    23.6 GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1-3/8" 6T spline, 4" long
• Rqd. Filtration 25 Micron
• Ports SAE 10
• Case Drain SAE 4
• Size 6-7/8" x 5-3/16" x 4-1/16"
• Shpg. 27 lbs.
