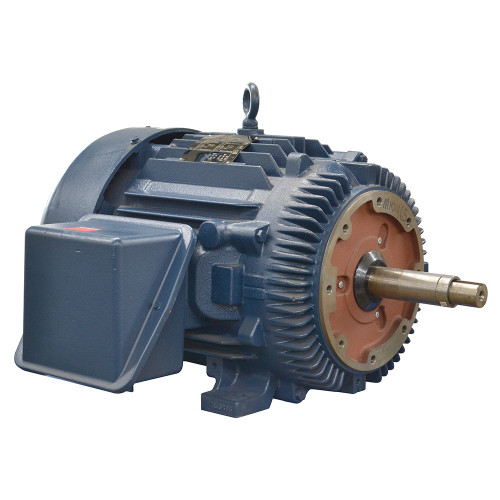

60/50 HP 3555 RPM 460 Volt AC 3PH Marathon Motor RVM 364TTFS16006AN [501385]

Product Description

60/50 HP 3555 RPM 460 VAC THREE PHASE MARATHON MOTOR
New, Marathon three phase pump motor model# RVM 364TTFS16006AN.

SPECIFICATIONS

• Power 60/50 HP
• Voltage 380//460 AC
• Phase 3
• Frequency 50//60 Hz
• Amperage 68//67 Amps
• Speed 2958//3555 RPM
• Rotation Reversible
• Service Factor 1//1.15
• Bearings Ball
• Enclosure TEFC
• Duty Continuous
• Frame 364JP
• Base Mount Four 0.66" diam. holes on 11" x 11-1/4" centers
• Face Mount Four 5/8"-11 tapped holes on 11" diameter bolt circle
• Shaft 1-3/4" dia. x 3-1/2" stepped down to 1-5/8" dia. x 2-1/4" w/ 3/8" keyway
• Size 34-1/2" x 27-1/4" x 19"
• Shpg. 881 lbs.
