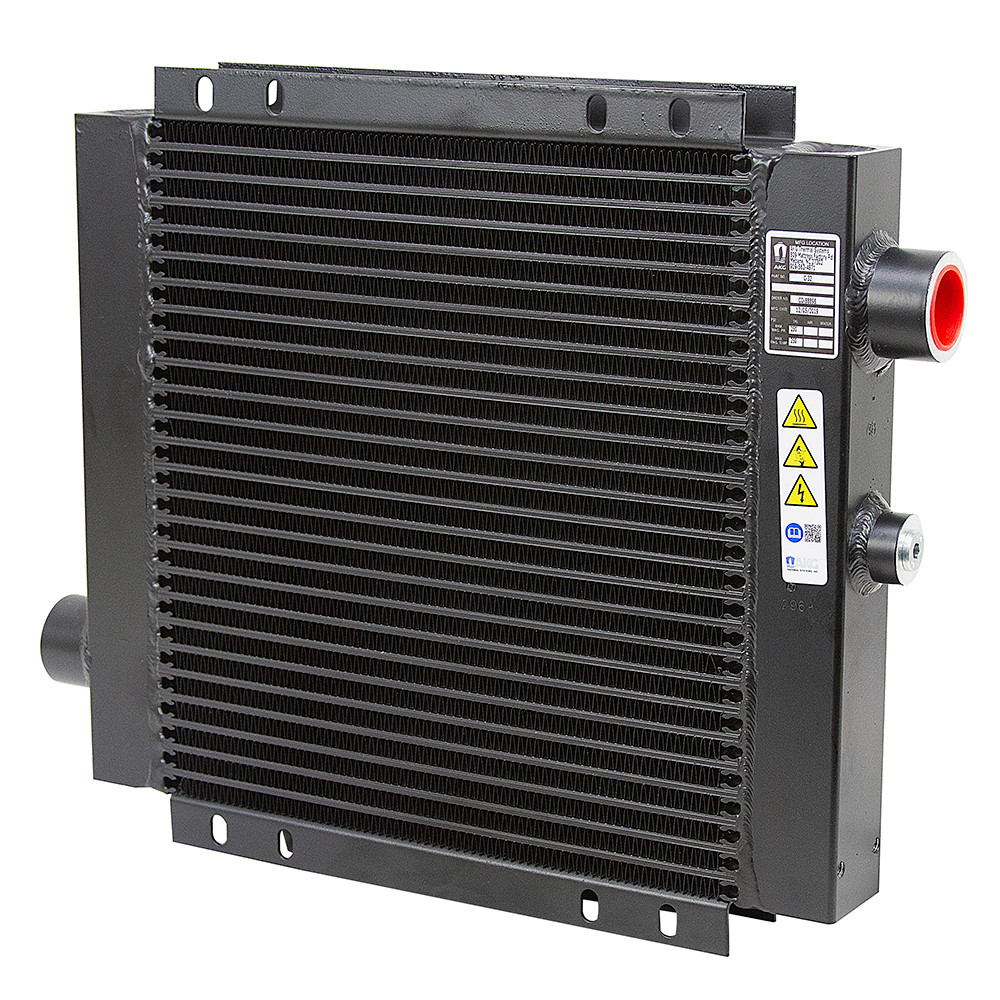

80 GPM AKG C32 Oil Cooler [904713]

Product Description

80 GPM AKG C32 Oil Cooler
Brand new AKG C series rugged bar and plate construction oil coolers that feature aluminum construction, leak-free SAE O-Ring connections and mounting tabs. Cooler performance listed in specs below is based on 1,000 SFPM (Square Feet Per Minute) cooling air flow.

SPECIFICATIONS

• Manufacturer AKG
• Model Number C32
• AKG Item # 1102157500
• Pressure 250 PSI max.
• Temperature 250 F° max.
• Construction Aluminum
• Flow 80 GPM
• Heat Removed Based On 50 F°
  Entering Temperature Difference (BTU/HR) 29070
• Port Size SAE 20
• Drain/Temperature Sensor Port Size SAE 8
• Mount Eight 7/16" slotted holes on 8.12" to 12" x 17.2" centers
• Overall Depth (in.) 2.56
• Overall Width (in.) 19.68
• Overall Height (in.) 18.31
• Shpg. 32 lbs.
